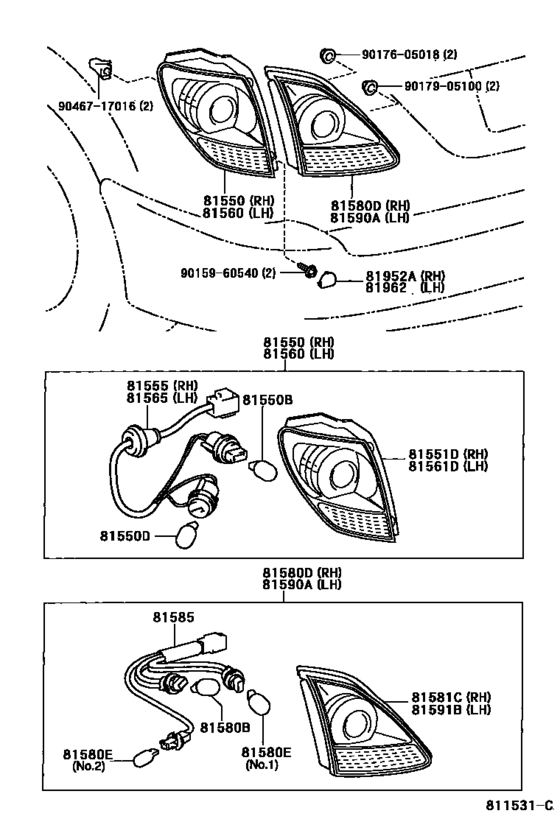

Rear Combination Lamp ([07.2000 - ] (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-48020
Lamp Assy, Rear Combination, Rh
[07.2000 -] MCU15 |
81550-48020 |
— | ||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[07.2000 -] MCU15 12V 21/5W |
90981-13044 |
from US $3.55 |
||
|
81550D
|
81550D
90981-15009 Bulb(For Headlamp, No.2)[07.2000 -] MCU15 12V 21W,AMBER |
90981-15009 |
from US $5.05 |
||
|
81551D
|
81551D
81551-48020 Lens & Body, Rear Combination Lamp, Rh[07.2000 -] MCU15 |
81551-48020 |
US $376.48 |
||
|
81555
|
81555
81555-48020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.2000 -] MCU15 |
81555-48020 |
from US $27.37 |
||
|
81560
|
81560
81560-48020 Lamp Assy, Rear Combination, Lh[07.2000 -] MCU15 |
81560-48020 |
US $394.58 |
||
|
81561D
|
81561D
81561-48020 Lens & Body, Rear Combination Lamp, Lh[07.2000 -] MCU15 |
81561-48020 |
US $374.19 |
||
|
81565
|
81565
81555-48020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[07.2000 -] MCU15 |
81555-48020 |
from US $27.37 |
||
|
81580B
|
81580B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[07.2000 -] MCU15 12V 21/5W |
90981-13044 |
from US $3.55 |
||
|
81580D
|
81580D
81580-48040 Lamp Assy, Rear, Rh[07.2000 -] MCU15 |
81580-48040 |
US $260.62 |
||
|
81580E
|
81580E
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[07.2000 -] MCU15 NO.2 |
90981-11059 |
from US $3.24 |
||
|
81580E
|
81580E
90981-13043 Bulb (12V 21W)[07.2000 -] MCU15 NO.1 |
90981-13043 |
from US $3.24 |
||
|
81581C
|
81581C
81581-48040 Lens And Body, Rear Lamp, Rh[07.2000 -] MCU15 |
81581-48040 |
from US $124.27 |
||
|
81585
|
81585
81585-48040 Socket & Wire, Rear Lamp[07.2000 -] MCU15 |
81585-48040 |
from US $33.05 |
||
|
81590A
|
81590A
81590-48040 Lamp Assy, Rear, Lh[07.2000 -] MCU15 |
81590-48040 |
US $260.62 |
||
|
81591B
|
81591B
81591-48040 Lens And Body, Rear Lamp, Lh[07.2000 -] MCU15 |
81591-48040 |
from US $227.14 |
||
|
81952A
|
81952A
81952-22010 Cover, Rear Lamp, Rh[07.2000 -] MCU15 |
81952-22010 |
from US $0.88 |
||
|
81962
|
81962
81952-22010 Cover, Rear Lamp, Rh[07.2000 -] MCU15 |
81952-22010 |
from US $0.88 |
||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
from US $0.68 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.78 |
||
|
9017905100
|
9017905100
90179-05100 Nut, Antenna |
90179-05100 |
US $1.60 |
||
| replacement | |||||
|
9017905100
|
9017905100
90179-05102 Nut |
90179-05102 |
from US $0.76 |
||
|
9046717016
|
9046717016
90467-17016 CLIP |
90467-17016 |
US $3.40 |
||
