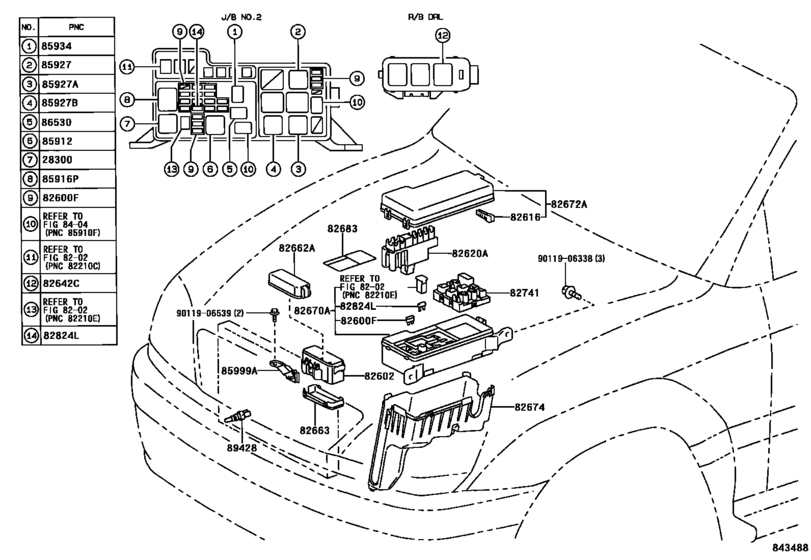

Switch & Relay & Computer ([07.2000 - ] ENGINE ROOM (0007- )) Diagram Toyota LEXUS RX
- Year
- 2000 - 2003
- Sales region
- Europe
- Frame
- MCU15
- ENGINE
- 1MZFE
- Model
- RX300
- From
- 07.2000
- To
- 02.2003
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[07.2000 -] 1MZFE..MCU15 |
28300-10020 |
from US $53.76 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[07.2000 -] MCU15 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[07.2000 -] MCU15 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[07.2000 -] MCU15 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[07.2000 -] MCU15 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[07.2000 -] MCU15 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82602
|
82602
82602-07010
Block Sub-Assy, Relay
[07.2000 -] MCU15..LHD |
82602-07010 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[07.2000 -] MCU15 |
82616-20010 |
from US $2.34 |
||
|
82620A
|
82620A
82620-48020 Block Assy, Fusible LinkFUSIBLE LINK [07.2000 -] MCU15..LHD |
82620-48020 |
from US $51.25 |
||
|
82642C
|
82642C
90987-02006 Relay[07.2000 -] MCU15..LHD |
90987-02006 |
from US $26.75 |
||
|
82662A
|
82662A
82662-48010
Cover, Relay Block, Upper, No.1
[07.2000 -] MCU15..LHD |
82662-48010 |
— | ||
|
82663
|
82663
82663-07030
Cover, Relay Block, No.1
[07.2000 -] MCU15..LHD |
82663-07030 |
— | ||
|
82670A
|
82670A
82720-48011 Block Assy, Junction, No.1[07.2000 -] MCU15 |
82720-48011 |
from US $276.28 |
||
|
82672A
|
82672A
82672-48010 Cover, Junction Block[07.2000 -] MCU15 |
82672-48010 |
US $38.58 |
||
|
82674
|
82674
82674-48010 Cover, Junction Block Lower[07.2000 -] MCU15 |
82674-48010 |
from US $85.90 |
||
|
82683
|
82683
82683-48120 Plate, Fuse Block CautionFUSE BLOCK CAUTION [07.2000 -] MCU15 |
82683-48120 |
US $3.64 |
||
|
82741
|
82741
82741-48031 Block, Engine Room RelayENGINE ROOM RELAY [07.2000 -] MCU15 |
82741-48031 |
US $34.36 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[07.2000 -] MCU15 |
82824-20140 |
US $2.48 |
||
|
85912
|
85912
90987-04003 Relay, Ignition, No.1[07.2000 -] MCU15 |
90987-04003 |
US $75.10 |
||
|
85916P
|
85916P
90987-02006 Relay[07.2000 -] MCU15 |
90987-02006 |
from US $26.75 |
||
|
85927
|
85927
90987-02006 Relay[07.2000 -] MCU15 |
90987-02006 |
from US $26.75 |
||
|
85927A
|
85927A
90987-04002 Relay, Ignition, No.1[07.2000 -] MCU15 |
90987-04002 |
from US $24.30 |
||
|
85927B
|
85927B
90987-02006 Relay[07.2000 -] MCU15 |
90987-02006 |
from US $26.75 |
||
|
85934
|
85934
90987-02020 Relay, Ignition, No.1[07.2000 -] MCU15 |
90987-02020 |
US $46.53 |
||
|
85999A
|
85999A
85999-33150
Bracket, Relay, No.2
[07.2000 -] MCU15..LHD |
85999-33150 |
— | ||
|
86530
|
86530
90987-02020 Relay, Ignition, No.1[07.2000 -] MCU15 |
90987-02020 |
US $46.53 |
||
|
89428
|
89428
89428-21010 Switch, Temperature Detect[07.2000 -] MCU15 |
89428-21010 |
from US $88.82 |
||
|
9011906338
|
9011906338
90119-06338
New Genuine Part
|
90119-06338 |
— | ||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.38 |
