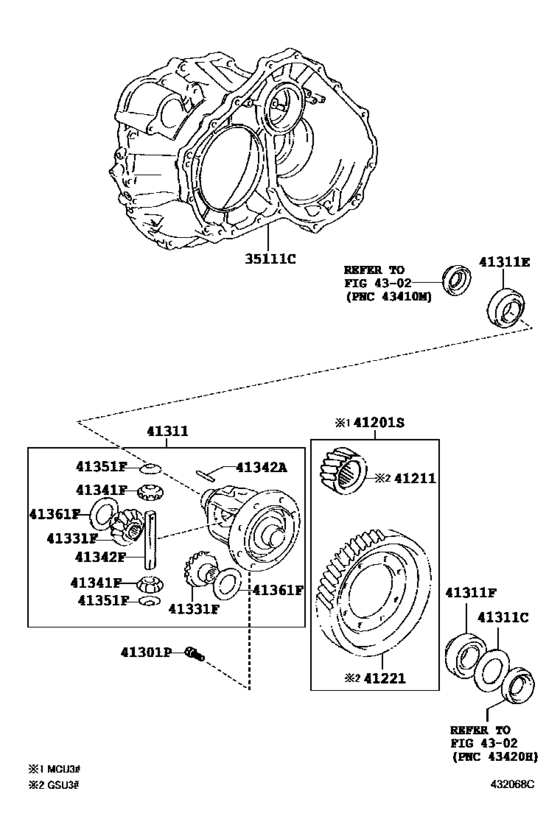

Front Axle Housing & Differential ([02.2003 - ] U151E (0302- )GSU30,MCU33..JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-28011 Housing, Transaxle[02.2003 - 09.2005] MCU33..JPP |
35105-28011 |
US $835.74 |
||
| replacement | |||||
|
35111C
|
35111C
35105-28012 Housing, Transaxle[02.2003 - 09.2005] MCU33..JPP |
35105-28012 |
US $835.74 |
||
|
35111C
|
35111C
35105-28012 Housing, Transaxle[09.2005 - 01.2006] MCU33..JPP |
35105-28012 |
US $835.74 |
||
|
41201S
|
41201S
41201-48030 Final Gear Kit, Differential, Front[02.2003 - 01.2006] MCU3#..JPP *FGR=80:23=3.478 |
41201-48030 |
US $1,011.92 |
||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[02.2003 - 01.2006] MCU33..JPP |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-33080 Case, Front Differential[02.2003 - 01.2006] MCU33..JPP |
41301-33080 |
from US $447.88 |
||
|
41311C
|
41311C
90564-79001
Shim (For Front Differential Case Rear)
[02.2003 - 01.2006] MCU3#..JPP T=2.00,MARK 0 |
90564-79001 |
— | ||
|
41311C
|
41311C
90564-79002 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.05,MARK 1 |
90564-79002 |
US $2.77 |
||
|
41311C
|
41311C
90564-79003 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.10,MARK 2 |
90564-79003 |
US $2.77 |
||
|
41311C
|
41311C
90564-79004 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.15,MARK 3 |
90564-79004 |
US $2.77 |
||
|
41311C
|
41311C
90564-79005 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.20,MARK 4 |
90564-79005 |
US $2.77 |
||
|
41311C
|
41311C
90564-79006 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.25,MARK 5 |
90564-79006 |
US $2.77 |
||
|
41311C
|
41311C
90564-79007 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.30,MARK 6 |
90564-79007 |
US $2.77 |
||
|
41311C
|
41311C
90564-79008 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.35,MARK 7 |
90564-79008 |
US $2.77 |
||
|
41311C
|
41311C
90564-79009 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.40,MARK 8 |
90564-79009 |
US $2.77 |
||
|
41311C
|
41311C
90564-79010 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.45,MARK 9 |
90564-79010 |
US $2.77 |
||
|
41311C
|
41311C
90564-79011 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.50,MARK A |
90564-79011 |
US $2.77 |
||
|
41311C
|
41311C
90564-79012 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.55,MARK B |
90564-79012 |
US $2.77 |
||
|
41311C
|
41311C
90564-79013 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.60,MARK C |
90564-79013 |
US $2.77 |
||
|
41311C
|
41311C
90564-79014 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.65,MARK D |
90564-79014 |
US $2.77 |
||
|
41311C
|
41311C
90564-79015 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.70,MARK E |
90564-79015 |
US $2.77 |
||
|
41311C
|
41311C
90564-79016 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.75,MARK F |
90564-79016 |
US $2.77 |
||
|
41311C
|
41311C
90564-79017 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.80,MARK G |
90564-79017 |
US $2.77 |
||
|
41311C
|
41311C
90564-79018 Shim (For Front Differential Case Rear)[02.2003 - 01.2006] MCU3#..JPP T=2.85,MARK H |
90564-79018 |
US $2.77 |
||
|
41311C
|
41311C
90564-79090 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.025,MARK J |
90564-79090 |
US $2.77 |
||
|
41311C
|
41311C
90564-79091 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.075,MARK K |
90564-79091 |
US $2.77 |
||
|
41311C
|
41311C
90564-79092 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.125,MARK L |
90564-79092 |
US $2.77 |
||
|
41311C
|
41311C
90564-79093 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.175,MARK M |
90564-79093 |
US $2.77 |
||
|
41311C
|
41311C
90564-79094 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.225,MARK N |
90564-79094 |
US $2.77 |
||
|
41311C
|
41311C
90564-79095 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.275,MARK P |
90564-79095 |
US $2.77 |
||
|
41311C
|
41311C
90564-79096 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.325,MARK Q |
90564-79096 |
US $2.77 |
||
|
41311C
|
41311C
90564-79097 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.375,MARK R |
90564-79097 |
US $2.77 |
||
|
41311C
|
41311C
90564-79098 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.425,MARK S |
90564-79098 |
US $2.77 |
||
|
41311C
|
41311C
90564-79099 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.475,MARK T |
90564-79099 |
US $2.77 |
||
|
41311C
|
41311C
90564-79100 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.525,MARK U |
90564-79100 |
US $2.77 |
||
|
41311C
|
41311C
90564-79101 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.575,MARK V |
90564-79101 |
US $2.77 |
||
|
41311C
|
41311C
90564-79102 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.625,MARK W |
90564-79102 |
US $2.77 |
||
|
41311C
|
41311C
90564-79103 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.675,MARK X |
90564-79103 |
US $2.77 |
||
|
41311C
|
41311C
90564-79104 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.725,MARK Y |
90564-79104 |
US $2.77 |
||
|
41311C
|
41311C
90564-79105 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.775,MARK AA |
90564-79105 |
US $2.77 |
||
|
41311C
|
41311C
90564-79106 Shim (For Front Differential Case Rear)[12.2005 - 01.2006] MCU3#..JPP T=2.825,MARK AB |
90564-79106 |
US $2.77 |
||
|
41311E
|
41311E
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[02.2003 - 11.2005] MCU33..JPP |
90366-50057 |
— | ||
| replacements | |||||
|
41311E
|
41311E
04419-33010 BEARING KIT, FR[02.2003 - 11.2005] MCU33..JPP |
04419-33010 |
US $100.46 |
||
|
41311E
|
41311E
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[02.2003 - 11.2005] MCU33..JPP |
90366-50106 |
from US $26.38 |
||
|
41311E
|
41311E
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[11.2005 - 01.2006] MCU33..JPP |
90366-50106 |
from US $26.38 |
||
|
41311F
|
41311F
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[02.2003 - 11.2005] MCU3#..JPP |
90366-50057 |
— | ||
| replacements | |||||
|
41311F
|
41311F
04419-33010 BEARING KIT, FR[02.2003 - 11.2005] MCU3#..JPP |
04419-33010 |
US $100.46 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[02.2003 - 11.2005] MCU3#..JPP |
90366-50106 |
from US $26.38 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[11.2005 - 01.2006] MCU3#..JPP |
90366-50106 |
from US $26.38 |
||
|
41331F
|
41331F
41331-33010 Gear, Front Differential Side[02.2003 - 04.2004] MCU33..JPP |
41331-33010 |
US $75.71 |
||
| replacement | |||||
|
41331F
|
41331F
41039-45H00 Gear, Front Differential Side[02.2003 - 04.2004] MCU33..JPP |
41039-45H00 |
from US $214.03 |
||
|
41331F
|
41331F
41331-48050 Gear, Front Differential Side[04.2004 - 01.2006] MCU33..JPP |
41331-48050 |
from US $52.27 |
||
|
41341F
|
41341F
41341-48010 Pinion, Front Differential[02.2003 - 04.2004] MCU33..JPP |
41341-48010 |
US $37.56 |
||
| replacement | |||||
|
41341F
|
41341F
41039-45H00 Gear, Front Differential Side[02.2003 - 04.2004] MCU33..JPP |
41039-45H00 |
from US $214.03 |
||
|
41341F
|
41341F
41341-48040 Pinion, Front Differential[04.2004 - 01.2006] MCU33..JPP |
41341-48040 |
US $26.06 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[02.2003 - 01.2006] MCU33..JPP |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-28020 Shaft, Front Differential Pinion, No.1[02.2003 - 01.2006] MCU33..JPP |
41342-28020 |
US $21.69 |
||
|
41351F
|
41351F
41351-33011 Washer, Front Differential Pinion Thrust[02.2003 - 01.2006] MCU33..JPP |
41351-33011 |
US $2.91 |
||
|
41361F
|
41361F
41361-33010 Washer, Front Differential Side Gear Thrust, No.1[02.2003 - 01.2006] MCU33..JPP T=1.625 |
41361-33010 |
from US $4.08 |
||
|
41361F
|
41361F
41362-33080 Washer, Front Differential Side Gear Thrust, No.1[02.2003 - 01.2006] MCU33..JPP T=1.725 |
41362-33080 |
US $4.22 |
||
|
41361F
|
41361F
41363-33010 Washer, Front Differential Side Gear Thrust, No.1[02.2003 - 01.2006] MCU33..JPP T=1.825 |
41363-33010 |
US $4.51 |
||
