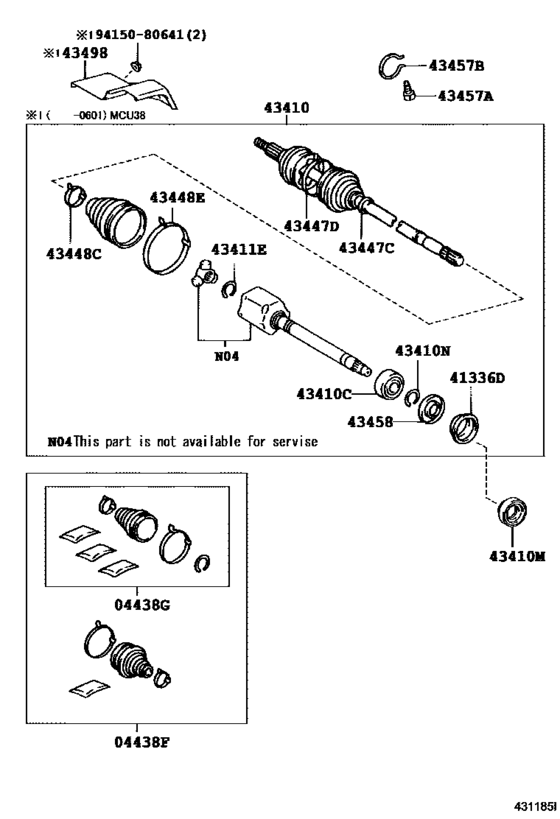

Front Drive Shaft ([02.2003 - ] RH (0302- )GSU30,MCU33..JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-08040
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[02.2003 - 01.2006] MCU33..JPP |
04427-08040 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04438-0E030 Boot Kit, Front Drive Shaft, In & Outboard, Rh[02.2003 - 01.2006] MCU33..JPP |
04438-0E030 |
US $145.60 |
||
|
04438G
|
04438G
04437-08040 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2003 - 01.2006] MCU33..JPP |
04437-08040 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-08010 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2003 - 01.2006] MCU33..JPP |
04438-08010 |
US $81.84 |
||
|
41336D
|
41336D
41336-06020 Cover, Front Drive Shaft Dust, Rh[02.2003 - 01.2006] MCU33..JPP |
41336-06020 |
from US $11.53 |
||
|
43410
|
43410
43410-0E020 Shaft Assy, Front Drive, Rh[02.2003 - 01.2006] MCU33..JPP |
43410-0E020 |
US $1,115.30 |
||
|
43410C
|
43410C
90080-36133 Bearing (For Front Drive Shaft)[02.2003 - 01.2006] MCU33..JPP |
90080-36133 |
from US $25.60 |
||
|
43410M
|
43410M
90311-40028 Oil Seal, Front Drive Shaft, Rh[02.2003 - 11.2005] MCU33..JPP |
90311-40028 |
from US $7.17 |
||
|
43410M
|
43410M
90311-40029
Oil Seal, Front Drive Shaft, Rh
[11.2005 - 01.2006] MCU33..JPP |
90311-40029 |
— | ||
| replacement | |||||
|
43410M
|
43410M
90311-40038 Oil Seal, Front Drive Shaft, Rh[11.2005 - 01.2006] MCU33..JPP |
90311-40038 |
from US $7.17 |
||
|
43410N
|
43410N
90080-52013
Ring, Hole Snap (For Front Drive Shaft Rh)
[02.2003 - 01.2006] MCU33..JPP |
90080-52013 |
— | ||
|
43411E
|
43411E
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[02.2003 - 01.2006] MCU33..JPP |
43425-08040 |
US $0.44 |
||
|
43447C
|
43447C
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[02.2003 - 01.2006] MCU3#..JPP |
42345-04030 |
US $2.48 |
||
|
43447D
|
43447D
42345-04040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[02.2003 - 01.2006] MCU33..JPP |
42345-04040 |
US $4.80 |
||
|
43448C
|
43448C
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[02.2003 - 01.2006] MCU33..JPP |
42345-08070 |
US $3.49 |
||
|
43448E
|
43448E
42345-08060 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[02.2003 - 01.2006] MCU33..JPP |
42345-08060 |
US $4.80 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[02.2003 - 01.2006] MCU33..JPP *10-1.25PX19.8-8.3 |
90119-10461 |
from US $1.25 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[02.2003 - 01.2006] MCU33..JPP |
90521-78002 |
from US $2.32 |
||
|
43458
|
43458
43458-06020 Cover, Front Drive Shaft Dust[02.2003 - 01.2006] MCU33..JPP |
43458-06020 |
US $11.65 |
||
|
43498
|
43498
43498-48010 Insulator, Drive Shaft Heat[02.2003 - 05.2003] MCU3#..JPP |
43498-48010 |
US $26.35 |
||
| replacement | |||||
|
43498
|
43498
43498-48011 Insulator, Drive Shaft Heat[02.2003 - 05.2003] MCU3#..JPP |
43498-48011 |
US $26.50 |
||
|
43498
|
43498
43498-48011 Insulator, Drive Shaft Heat[05.2003 - 01.2006] MCU3#..JPP |
43498-48011 |
US $26.50 |
||
|
9415080641
|
9415080641
94150-80641 New Genuine Part |
94150-80641 |
US $0.87 |
||
| replacement | |||||
|
9415080641
|
9415080641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.98 |
||
