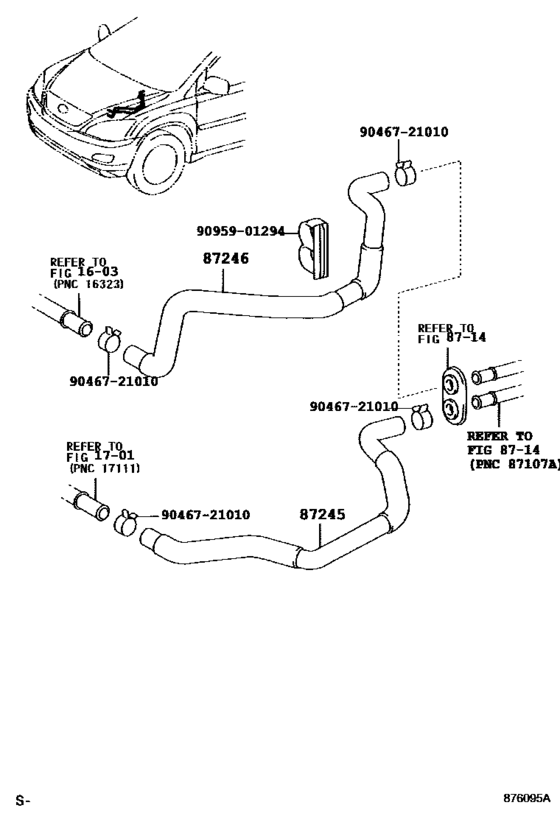

Heating & Air Conditioning - Water Piping ([02.2003 - 01.2006] (0302-0601)JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245
|
87245
87245-48200 Hose, Heater Water, InletHEATER WATER, INLET [02.2003 - 05.2003] MCU3#..JPP |
87245-48200 |
US $35.53 |
||
| replacement | |||||
|
87245
|
87245
87245-48201 Hose, Heater Water, InletHEATER WATER, INLET [02.2003 - 05.2003] MCU3#..JPP |
87245-48201 |
US $37.39 |
||
|
87245
|
87245
87245-48201 Hose, Heater Water, InletHEATER WATER, INLET [05.2003 - 01.2006] MCU3#..JPP |
87245-48201 |
US $37.39 |
||
|
87246
|
87246
87245-48210 Hose, Heater Water, OutletHEATER WATER, OUTLET [02.2003 - 05.2003] MCU3#..JPP |
87245-48210 |
US $45.14 |
||
| replacement | |||||
|
87246
|
87246
87245-48211 Hose, Heater Water, OutletHEATER WATER, OUTLET [02.2003 - 05.2003] MCU3#..JPP |
87245-48211 |
US $43.53 |
||
|
87246
|
87246
87245-48211 Hose, Heater Water, OutletHEATER WATER, OUTLET [05.2003 - 01.2006] MCU3#..JPP |
87245-48211 |
US $43.53 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9095901294
|
9095901294
90959-01294
New Genuine Part
|
90959-01294 |
— | ||
