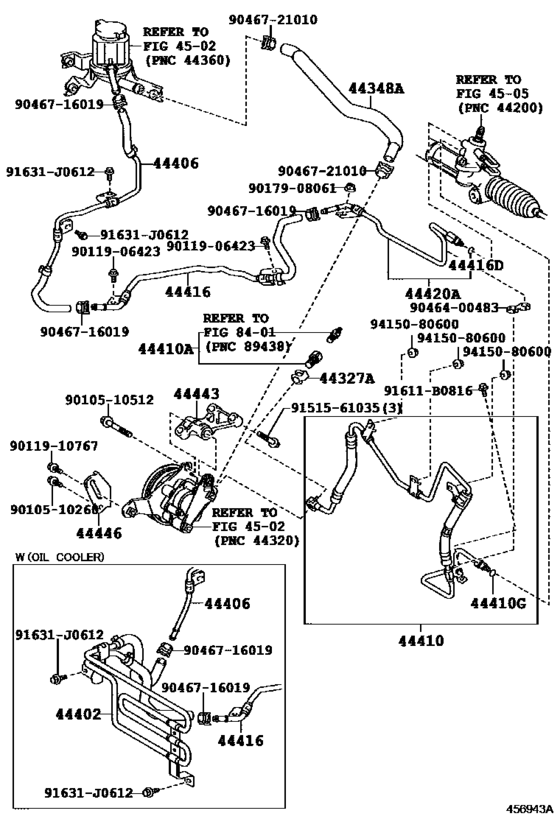

Power Steering Tube ([02.2003 - 09.2003] (0302-0309)JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[02.2003 - 01.2006] MCU3#..JPP |
44327-30030 |
from US $2.01 |
||
|
44348A
|
44348A
44348-48080 Hose, Oil Reservoir To Pump, No.1[02.2003 - 01.2006] MCU3#..JPP |
44348-48080 |
from US $98.40 |
||
|
44402
|
44402
44402-48041 Cooler Sub-Assy, Power Steering Oil, No.1[02.2003 - 01.2006] MCU3#..JPP USA DEPENDANCY SPEC; MCU38..JPP KOREA SPEC; MCU38..JPP TAIWAN SPEC |
44402-48041 |
US $182.40 |
||
|
44406
|
44406
44406-48091 Tube Sub-Assy, ReturnRETURN [02.2003 - 01.2006] MCU3#..JPP |
44406-48091 |
from US $60.63 |
||
|
44406
|
44406
44406-48100 Tube Sub-Assy, Return[02.2003 - 01.2006] MCU3#..JPP USA DEPENDANCY SPEC; MCU38..JPP KOREA SPEC; MCU38..JPP TAIWAN SPEC |
44406-48100 |
from US $57.46 |
||
|
44410
|
44410
44410-48120 Tube Assy, Pressure FeedPRESSURE FEED [02.2003 - 09.2003] MCU3#..JPP |
44410-48120 |
US $365.46 |
||
| replacements | |||||
|
44410
|
44410
17126-20040 Stay, Surge Tank, No.2[02.2003 - 09.2003] MCU3#..JPP |
17126-20040 |
US $51.83 |
||
|
44410
|
44410
44410-48121 Tube Assy, Pressure FeedPRESSURE FEED [02.2003 - 09.2003] MCU3#..JPP |
44410-48121 |
from US $334.25 |
||
|
44410
|
44410
44410-48121 Tube Assy, Pressure FeedPRESSURE FEED [09.2003 - 01.2006] MCU3#..JPP |
44410-48121 |
from US $334.25 |
||
|
44410A
|
44410A
44338-33090 Bolt, Union(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3#..JPP |
44338-33090 |
US $57.79 |
||
|
44410G
|
44410G
90301-07009 Ring, O(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3#..JPP |
90301-07009 |
from US $4.35 |
||
|
44416
|
44416
44416-48071 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [02.2003 - 01.2006] MCU3#..JPP |
44416-48071 |
from US $71.90 |
||
|
44416D
|
44416D
90301-07009 Ring, O(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3#..JPP |
90301-07009 |
from US $4.35 |
||
|
44420A
|
44420A
44420-48050 Tube Assy, ReturnRETURN [02.2003 - 01.2006] MCU3#..JPP USA DEPENDANCY SPEC; MCU38..JPP KOREA SPEC; MCU38..JPP TAIWAN SPEC |
44420-48050 |
US $46.01 |
||
|
44420A
|
44420A
44420-48060 Tube Assy, ReturnRETURN [02.2003 - 01.2006] MCU3#..JPP |
44420-48060 |
US $36.34 |
||
|
44443
|
44443
44443-33041 Bracket, Pump[02.2003 - 01.2006] MCU3#..JPP |
44443-33041 |
US $49.80 |
||
|
44446
|
44446
44446-28030 Strut, Adjusting[02.2003 - 01.2006] MCU3#..JPP |
44446-28030 |
US $10.48 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9010510260
|
9010510260
90105-10260 New Genuine Part |
90105-10260 |
US $2.62 |
||
|
9010510512
|
9010510512
90105-10512 New Genuine Part |
90105-10512 |
US $4.08 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011910767
|
9011910767
90119-10767 New Genuine Part |
90119-10767 |
US $8.06 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046400483
|
9046400483
90464-00483
New Genuine Part
|
90464-00483 |
— | ||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.94 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
