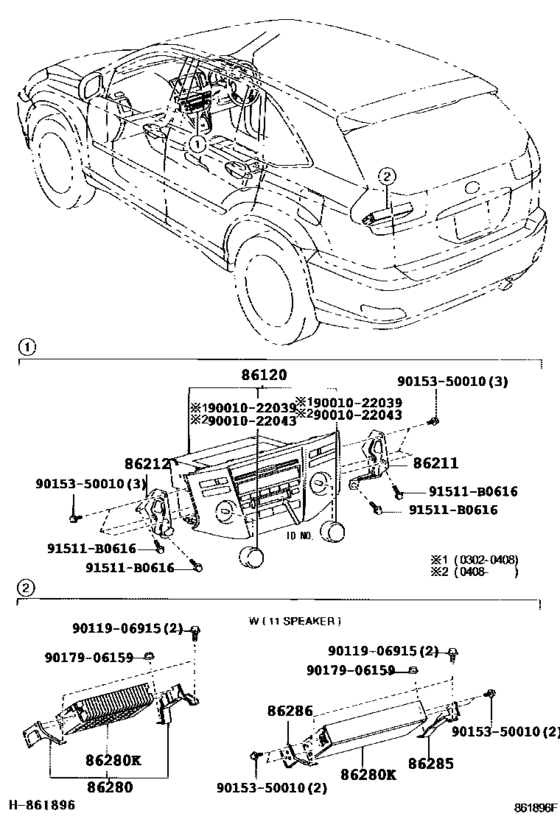

Radio Receiver & Amplifier & Condenser ([02.2003 - 01.2006] (0302-0601)JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-48310
Receiver Assy, Radio
[02.2003 - 08.2004] MCU3#..JPP PIONEER,ID=P6828,TYPE A:REFER ILLUST. |
86120-48310 |
— | ||
|
86120
|
86120
86120-48320
Receiver Assy, Radio
[02.2003 - 08.2004] MCU3#..JPP PIONEER,ID=P6826,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE B:REFER ILLUST.; MCU3#..JPP PIONEER,ID=P6826,TYPE B:REFER ILLUST. |
86120-48320 |
— | ||
|
86120
|
86120
86120-48330
Receiver Assy, Radio
[02.2003 - 08.2004] MCU3#..JPP PIONEER,ID=P6827,AUDIO-MARK LEVINSON 11SP,TYPE C:REFER ILLUST.; MCU3#..JPP PIONEER,ID=P6827,TYPE C:REFER ILLUST. |
86120-48330 |
— | ||
|
86120
|
86120
86120-48560
Receiver Assy, Radio
[08.2004 - 01.2006] MCU3#..JPP PIONEER,ID=P6848,AUDIO-MARK LEVINSON 11SP,TYPE K:REFER ILLUST.; MCU3#..JPP PIONEER,ID=P6848,TYPE K:REFER ILLUST. |
86120-48560 |
— | ||
|
86120
|
86120
86120-48570
Receiver Assy, Radio
[08.2004 - 01.2006] MCU3#..JPP PIONEER,ID=P6849,TYPE I:REFER ILLUST. |
86120-48570 |
— | ||
|
86120
|
86120
86120-48580
Receiver Assy, Radio
[08.2004 - 01.2006] MCU3#..JPP PIONEER,ID=P6847,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE J:REFER ILLUST.; MCU3#..JPP PIONEER,ID=P6847,TYPE J:REFER ILLUST. |
86120-48580 |
— | ||
|
86211
|
86211
86211-48030 Bracket, Radio, No.1[02.2003 - 01.2006] MCU3#..JPP |
86211-48030 |
US $6.99 |
||
|
86212
|
86212
86212-48030 Bracket, Radio, No.2[02.2003 - 01.2006] MCU3#..JPP |
86212-48030 |
US $6.99 |
||
|
86280
|
86280
86100-48010
Amplifier Assy, Stereo Component
[02.2003 - 08.2004] MCU3#..JPP |
86100-48010 |
— | ||
|
86280
|
86280
86100-48070
Amplifier Assy, Stereo Component
[08.2004 - 01.2006] MCU3#..JPP |
86100-48070 |
— | ||
|
86280K
|
86280K
86280-0E020
Amplifier Assy, Stereo Component
[02.2003 - 08.2004] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP |
86280-0E020 |
— | ||
| replacement | |||||
|
86280K
|
86280K
86280-0E021
Amplifier Assy, Stereo Component
[02.2003 - 08.2004] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP |
86280-0E021 |
— | ||
|
86280K
|
86280K
86280-0E021
Amplifier Assy, Stereo Component
[08.2004 - 01.2006] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP |
86280-0E021 |
— | ||
|
86280K
|
86280K
86280-48010
Amplifier Assy, Stereo Component
[08.2004 - 01.2006] MCU3#..JPP |
86280-48010 |
— | ||
|
86280K
|
86280K
86280-48070
Amplifier Assy, Stereo Component
[02.2003 - 08.2004] MCU3#..JPP |
86280-48070 |
— | ||
|
86285
|
86285
86285-48050 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [02.2003 - 08.2004] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP |
86285-48050 |
US $21.55 |
||
|
86285
|
86285
86285-48070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [08.2004 - 01.2006] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP |
86285-48070 |
US $19.95 |
||
|
86286
|
86286
86286-48030 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [02.2003 - 08.2004] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP |
86286-48030 |
US $12.08 |
||
|
86286
|
86286
86286-48050 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [08.2004 - 01.2006] MCU3#..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU3#..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP PREMIUM PACKAGE&AUDIO-MARK LEVINSON 11SP; MCU38..JPP SPORT PACKAGE&AUDIO-MARK LEVINSON 11SP |
86286-48050 |
US $12.08 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLTFLANGE |
91511-B0616 |
from US $0.86 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 New Genuine Part |
90080-10164 |
US $2.67 |
||
|
9001022039
|
9001022039
90010-22039 New Genuine Part |
90010-22039 |
US $2.48 |
||
|
9001022043
|
9001022043
90010-22043
KNOB
|
90010-22043 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
