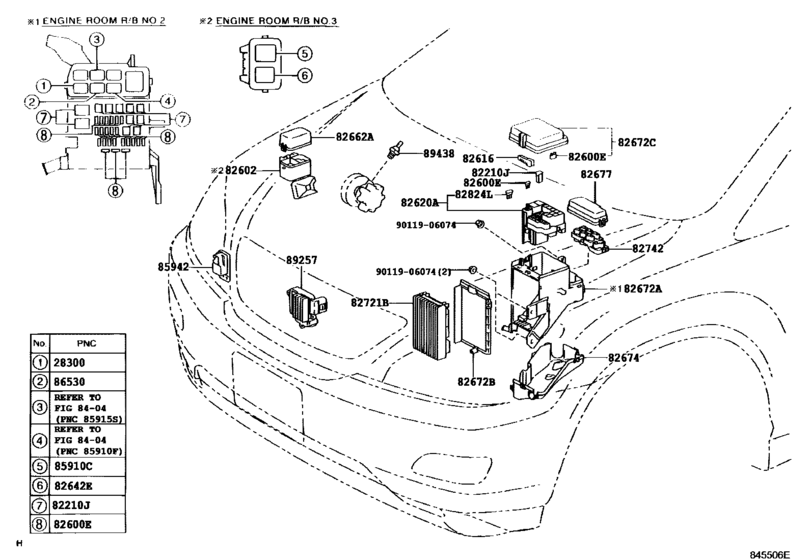

Switch & Relay & Computer ([02.2003 - 01.2006] ENGINE ROOM (0302-0601)JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2003 - 01.2006] 3MZFE..MCU3#..JPP |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2003 - 01.2006] 3MZFE..MCU3#..JPP |
28300-21020 |
from US $44.86 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210J
|
82210J
90982-08246 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82600E
|
82600E
90982-09008 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09009 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600E
|
82600E
90982-09010 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600E
|
82600E
90982-09012 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09013 Fusible Link[02.2003 - 01.2006] MCU3#..JPP 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82602
|
82602
82602-48040 Block Sub-Assy, Relay[02.2003 - 01.2006] MCU3#..JPP |
82602-48040 |
from US $34.36 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2003 - 01.2006] MCU3#..JPP |
82616-58010 |
from US $2.28 |
||
|
82620A
|
82620A
82620-48040 Block Assy, Fusible Link[02.2003 - 01.2006] MCU3#..JPP |
82620-48040 |
US $81.54 |
||
|
82642E
|
82642E
90987-04002 Relay, Ignition, No.1[02.2003 - 01.2006] MCU3#..JPP |
90987-04002 |
from US $24.30 |
||
|
82662A
|
82662A
82662-48030 Cover, Relay Block, Upper, No.1[02.2003 - 01.2006] MCU3#..JPP |
82662-48030 |
from US $13.98 |
||
|
82672A
|
82672A
82672-48040 Cover, Junction Block[02.2003 - 01.2006] MCU3#..JPP |
82672-48040 |
from US $46.01 |
||
|
82672B
|
82672B
82672-48050 Cover, Junction Block[02.2003 - 01.2006] MCU3#..JPP |
82672-48050 |
US $17.33 |
||
|
82672C
|
82672C
82672-48060 Cover, Junction Block[02.2003 - 01.2006] MCU3#..JPP |
82672-48060 |
from US $34.51 |
||
|
82672C
|
82672C
82672-48070 Cover, Junction Block[02.2003 - 01.2006] MCU3#..JPP SPORT PACKAGE |
82672-48070 |
US $34.51 |
||
|
82674
|
82674
82674-48020 Cover, Junction Block Lower[02.2003 - 01.2006] MCU3#..JPP |
82674-48020 |
from US $38.88 |
||
|
82677
|
82677
82677-48010 Cover, Junction Block, Upper No.2[02.2003 - 01.2006] MCU3#..JPP |
82677-48010 |
from US $13.98 |
||
|
82721B
|
82721B
82721-48050 Block, Engine Room Junction[02.2003 - 01.2006] MCU3#..JPP |
82721-48050 |
US $168.90 |
||
| replacement | |||||
|
82721B
|
82721B
82721-48051
Block, Engine Room Junction
[02.2003 - 01.2006] MCU3#..JPP |
82721-48051 |
— | ||
|
82742
|
82742
82741-48050 Block, Engine Room Relay[02.2003 - 01.2006] MCU3#..JPP |
82741-48050 |
US $19.80 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[02.2003 - 01.2006] MCU3#..JPP |
82824-20140 |
US $2.48 |
||
|
85910C
|
85910C
90987-04006 Relay Assy (For Heater Blower Motor)[02.2003 - 01.2006] MCU3#..JPP |
90987-04006 |
US $60.13 |
||
| replacement | |||||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[02.2003 - 01.2006] MCU3#..JPP |
90987-04010 |
from US $47.21 |
||
|
85942
|
85942
85942-48010 Relay, Headlamp Cleaner ControlHEADLAMP CLEANER CONTROL [02.2003 - 01.2006] MCU3#..JPP CANADA SPEC; MCU3#..JPP CANADA SPEC&W/SEAT HEATER; MCU3#..JPP W/SEAT HEATER |
85942-48010 |
US $244.61 |
||
|
86530
|
86530
90987-02027 Relay[02.2003 - 01.2006] MCU3#..JPP |
90987-02027 |
from US $47.11 |
||
|
89257
|
89257
89257-30070 Computer, Cooling Fan[09.2005 - 01.2006] MCU3#..JPP |
89257-30070 |
from US $226.75 |
||
|
89257
|
89257
89257-48020 Computer, Cooling Fan[02.2003 - 08.2005] MCU3#..JPP |
89257-48020 |
US $243.15 |
||
| replacement | |||||
|
89257
|
89257
89257-30070 Computer, Cooling Fan[02.2003 - 08.2005] MCU3#..JPP |
89257-30070 |
from US $226.75 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[02.2003 - 01.2006] MCU3#..JPP |
89438-33010 |
from US $29.78 |
||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $2.15 |
||
