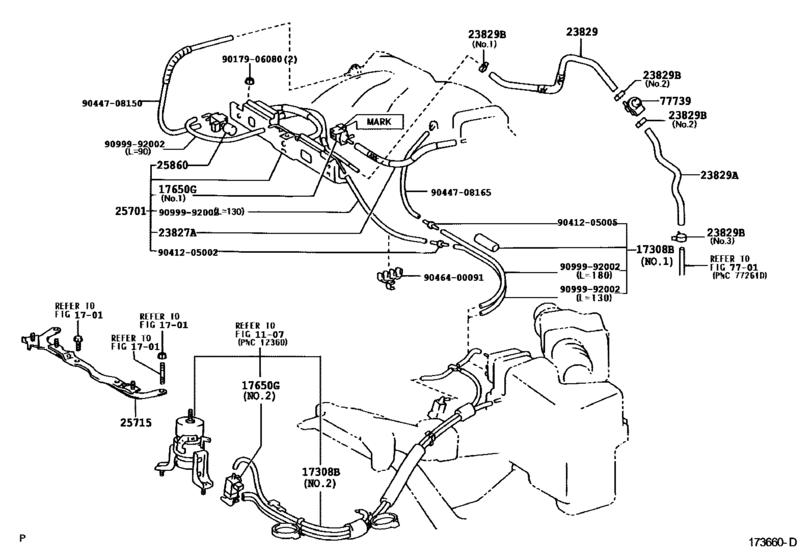

Vacuum Piping ([02.2003 - 01.2006] (0302-0601)JPP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17308B
|
17308B
17308-20170 Hose Sub-Assy, Vacuum[02.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.1 |
17308-20170 |
US $33.05 |
||
|
17308B
|
17308B
17308-20210 Hose Sub-Assy, Vacuum(For Idle-Up)[02.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.2 |
17308-20210 |
US $133.95 |
||
|
17650G
|
17650G
90910-12204 Valve, Duty Vacuum Switching[02.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.2 |
90910-12204 |
from US $22.71 |
||
|
17650G
|
17650G
90910-12259 Valve, Duty Vacuum Switching[02.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.1 90910-12259 |
90910-12259 |
from US $22.71 |
||
|
17650G
|
17650G
90910-12272
Valve, Duty Vacuum Switching
[10.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.1 90910-12272 |
90910-12272 |
— | ||
| replacement | |||||
|
17650G
|
17650G
90910-12259 Valve, Duty Vacuum Switching[10.2003 - 01.2006] 3MZFE..MCU3#..JPP NO.1 90910-12272 |
90910-12259 |
from US $22.71 |
||
|
23827A
|
23827A
23827-20060 Hose, Fuel Vapor Feed, No.2[02.2003 -] 3MZFE..MCU3#..JPP |
23827-20060 |
US $27.96 |
||
|
23829
|
23829
23829-20130 Hose, Fuel Vapor Feed, No.3FUEL VAPOR FEED, NO.3 [02.2003 -] 3MZFE..MCU3#..JPP |
23829-20130 |
from US $17.43 |
||
|
23829A
|
23829A
23829-20140 Hose, Fuel Vapor FeedFUEL VAPOR FEED [02.2003 -] 3MZFE..MCU3#..JPP |
23829-20140 |
from US $12.97 |
||
|
23829B
|
23829B
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[02.2003 -] 3MZFE..MCU3#..JPP |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23829B
|
23829B
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[02.2003 -] 3MZFE..MCU3#..JPP |
90466-A0001 |
US $3.15 |
||
|
23829B
|
23829B
96133-41300 Clip(For Air Hose No.6)[02.2003 -] 3MZFE..MCU3#..JPP NO.3 |
96133-41300 |
US $1.61 |
||
|
23829B
|
23829B
96133-51100 Clip(For Fuel Vapor Feed Hose)[02.2003 -] 3MZFE..MCU3#..JPP NO.2 |
96133-51100 |
US $2.18 |
||
|
25701
|
25701
25701-20220 Valve Set, Emission ControlEMISSION CONTROL [02.2003 -] 3MZFE..MCU3#..JPP |
25701-20220 |
US $314.50 |
||
|
25715
|
25715
25715-20020
Bracket, Emission Control Valve
[02.2003 - 07.2004] 3MZFE..MCU3#..JPP |
25715-20020 |
— | ||
| replacement | |||||
|
25715
|
25715
25715-20021
Bracket, Emission Control Valve
[02.2003 - 07.2004] 3MZFE..MCU3#..JPP |
25715-20021 |
— | ||
|
25715
|
25715
25715-20021
Bracket, Emission Control Valve
[07.2004 -] 3MZFE..MCU3#..JPP |
25715-20021 |
— | ||
|
25860
|
25860
25860-62010 Valve Assy, Vacuum Switching[02.2003 -] 3MZFE..MCU3#..JPP |
25860-62010 |
from US $63.80 |
||
|
77739
|
77739
77739-33010 Valve, Evap Service PortEVAP SERVICE PORT [02.2003 -] MCU3#..JPP |
77739-33010 |
from US $13.26 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.47 |
||
|
9041205002
|
9041205002
90412-05002 Way, 2(For Fuel Expansion Tank) |
90412-05002 |
US $4.30 |
||
|
9041205005
|
9041205005
90412-05005 New Genuine Part |
90412-05005 |
US $5.24 |
||
|
9044708150
|
9044708150
90447-08150 New Genuine Part |
90447-08150 |
US $16.77 |
||
|
9044708165
|
9044708165
90447-08165 New Genuine Part |
90447-08165 |
US $15.58 |
||
|
9046400091
|
9046400091
90464-00091
New Genuine Part
|
90464-00091 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
