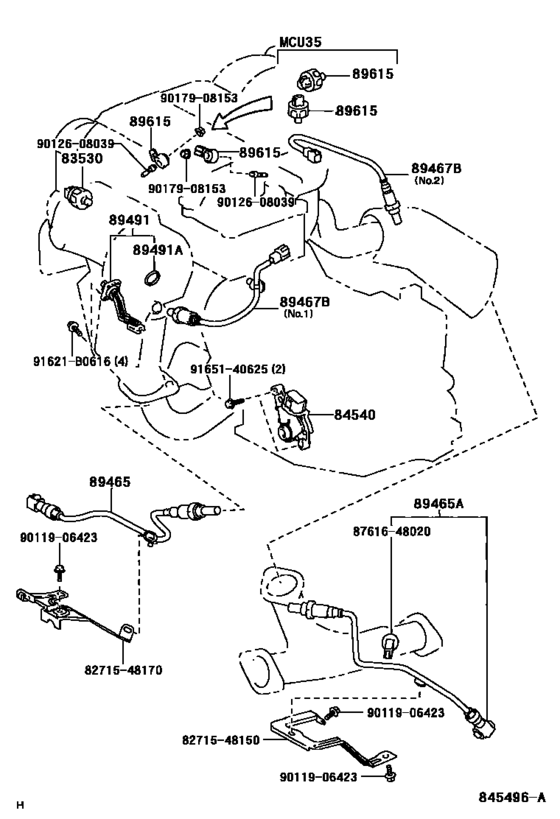

Switch & Relay & Computer ([02.2003 - 01.2006] ENGINE & TRANSMISSION (0302-0601)) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- MCU35
- grade
- STD
- body
- WG
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- RX300
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX300
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[04.2003 - 01.2006] MCU3# (L) |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.2003 - 01.2006] MCU3# (J),DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2003 - 01.2006] MCU3# (J),DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.2003 - 01.2006] MCU3# (J),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2003 - 01.2006] MCU3# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-48010 Switch Assy, Neutral Start[02.2003 - 01.2006] MCU3# |
84540-48010 |
US $159 |
||
|
89465
|
89465
89465-48170 Sensor, OxygenLH [02.2003 - 01.2006] MCU3# |
89465-48170 |
US $160.74 |
||
|
89465A
|
89465A
89465-48180 Sensor, Oxygen No.2RH [02.2003 - 01.2006] MCU3# |
89465-48180 |
from US $162.72 |
||
|
89467B
|
89467B
89467-48050 Sensor, Air Fuel RatioAIR FUEL RATIO [02.2003 - 01.2006] MCU3# NO.1 |
89467-48050 |
from US $227.14 |
||
|
89467B
|
89467B
89467-48060 Sensor, Air Fuel Ratio[02.2003 - 01.2006] MCU3# NO.2 |
89467-48060 |
from US $165.77 |
||
|
89491
|
89491
89491-33030 Sensor, Engine Oil LevelENGINE OIL LEVEL [02.2003 - 01.2006] MCU35 |
89491-33030 |
US $295.28 |
||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[02.2003 - 01.2006] MCU35 |
90430-27001 |
from US $1.09 |
||
|
89615
|
89615
89615-12090 Sensor, Knock Control[02.2003 - 01.2006] MCU35 |
89615-12090 |
from US $137.81 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.84 |
||
|
8271548150
|
8271548150
82715-48150 Bracket,wiring Harness Clamp |
82715-48150 |
US $18.35 |
||
|
8271548170
|
8271548170
82715-48170 Bracket,wiring Harness Clamp |
82715-48170 |
US $13.83 |
||
| replacement | |||||
|
8271548170
|
8271548170
82715-08120
Bracket,wiring Harness Clamp
|
82715-08120 |
— | ||
|
8761648020
|
8761648020
87616-48020 Clamp, Cooling Unit Case |
87616-48020 |
US $5.24 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
