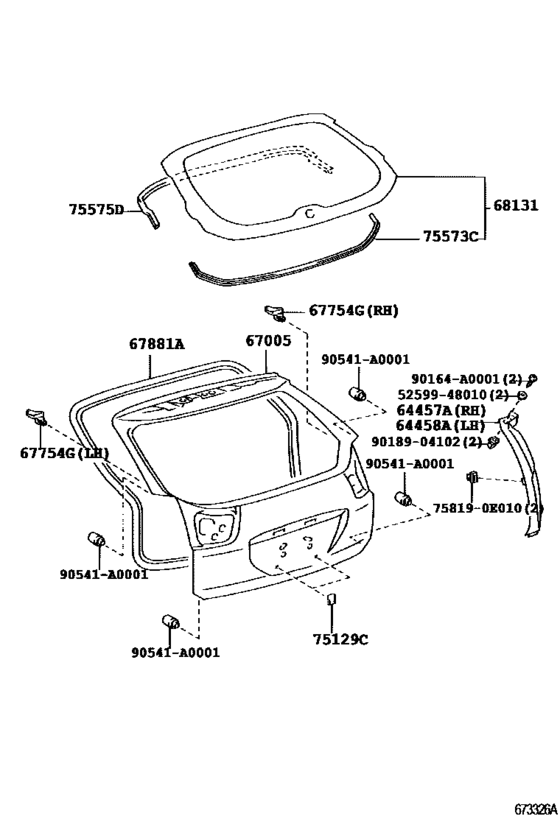

Back Door Panel & Glass ([09.2003 - ] (0309- )NAP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU38
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX330
- From
- 09.2003
- To
- 02.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64457A
|
64457A
64457-0E010
Cover, Luggage Door Stopper Cushion, Rh
[09.2003 - 02.2006] MCU3#..NAP |
64457-0E010 |
— | ||
|
64458A
|
64458A
64458-0E010
Cover, Luggage Door Stopper Cushion, Lh
[09.2003 - 02.2006] MCU3#..NAP |
64458-0E010 |
— | ||
|
67005
|
67005
67005-0E050
Panel Sub-Assy, Back Door
[09.2003 - 09.2004] MCU3#..NAP; MCU3#..NAP CANADA SPEC |
67005-0E050 |
— | ||
|
67005
|
67005
67005-0E060
Panel Sub-Assy, Back Door
[09.2003 - 09.2004] MCU3#..NAP AUTO & EASY CLOSER DOOR-WITH |
67005-0E060 |
— | ||
|
67005
|
67005
67005-0E070
Panel Sub-Assy, Back Door
[09.2003 - 09.2004] MCU3#..NAP W/DVD NAVIGATION |
67005-0E070 |
— | ||
|
67005
|
67005
67005-0E080
Panel Sub-Assy, Back Door
[09.2003 - 09.2004] MCU3#..NAP AUTO & EASY CLOSER DOOR-WITH&W/DVD NAVIGATION |
67005-0E080 |
— | ||
|
67754G
|
67754G
67754-0E010-A0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,RH |
67754-0E010-A0 |
— | ||
| replacements | |||||
|
67754G
|
67754G
67754-0E030-A0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,RH |
67754-0E030-A0 |
— | ||
|
67754G
|
67754G
64333-0E011-A0
Cover, Package Tray Trim, Side
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,RH |
64333-0E011-A0 |
— | ||
|
67754G
|
67754G
67754-0E010-B0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,RH |
67754-0E010-B0 |
— | ||
| replacements | |||||
|
67754G
|
67754G
67754-0E030-B0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,RH |
67754-0E030-B0 |
— | ||
|
67754G
|
67754G
64333-0E011-B0
Cover, Package Tray Trim, Side
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,RH |
64333-0E011-B0 |
— | ||
|
67754G
|
67754G
67754-0E020-A0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,LH |
67754-0E020-A0 |
— | ||
| replacements | |||||
|
67754G
|
67754G
67754-0E040-A0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,LH |
67754-0E040-A0 |
— | ||
|
67754G
|
67754G
64349-0E013-A0
Cover, Tonneau Side, Lh
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0#,LH |
64349-0E013-A0 |
— | ||
|
67754G
|
67754G
67754-0E020-B0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,LH |
67754-0E020-B0 |
— | ||
| replacements | |||||
|
67754G
|
67754G
67754-0E040-B0
Spacer, Back Door Trim
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,LH |
67754-0E040-B0 |
— | ||
|
67754G
|
67754G
64349-0E013-B0
Cover, Tonneau Side, Lh
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1#,2#,LH |
64349-0E013-B0 |
— | ||
|
67881A
|
67881A
67881-0E010
Weatherstrip, Back Door
[09.2003 - 02.2006] MCU3#..NAP |
67881-0E010 |
— | ||
| replacement | |||||
|
67881A
|
67881A
67881-0E011
Weatherstrip, Back Door
[09.2003 - 02.2006] MCU3#..NAP |
67881-0E011 |
— | ||
|
68131
|
68131
68105-0E010
Glass, Back Door
[09.2003 - 02.2006] MCU3#..NAP *EHT,T=3.5,PRIVACY |
68105-0E010 |
— | ||
|
75129C
|
75129C
75129-AC010
Cushion, Rear Licence Plate
[09.2003 - 02.2006] MCU3#..NAP |
75129-AC010 |
— | ||
| replacement | |||||
|
75129C
|
75129C
75129-13020 Cushion, Rr Licence Plate[09.2003 - 02.2006] MCU3#..NAP |
75129-13020 |
from US $0.88 |
||
|
75573C
|
75573C
75573-0E010
Moulding, Back Window, Outside
[09.2003 - 02.2006] MCU3#..NAP |
75573-0E010 |
— | ||
|
75575D
|
75575D
75575-48010 Moulding, Back Window, Lower[09.2003 - 02.2006] MCU3#..NAP |
75575-48010 |
US $15.14 |
||
| replacement | |||||
|
75575D
|
75575D
56117-50140 Dam Kit, Back Window Glass[09.2003 - 02.2006] MCU3#..NAP |
56117-50140 |
from US $11.17 |
||
|
90164A0001
|
90164A0001
90164-A0001
New Genuine Part
|
90164-A0001 |
— | ||
|
90541A0001
|
90541A0001
90541-A0001
Cushion, Hood Bumper
|
90541-A0001 |
— | ||
|
758190E010
|
758190E010
75819-0E010
Clip, Luggage Compartment Door Moulding
|
75819-0E010 |
— | ||
| replacement | |||||
|
758190E010
|
758190E010
75819-48010 Clip, Luggage Compartment Door Moulding |
75819-48010 |
US $2.33 |
||
|
5259948010
|
5259948010
52599-48010 Stopper, Rear Bumper, Upper |
52599-48010 |
from US $1.21 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.13 |
||
