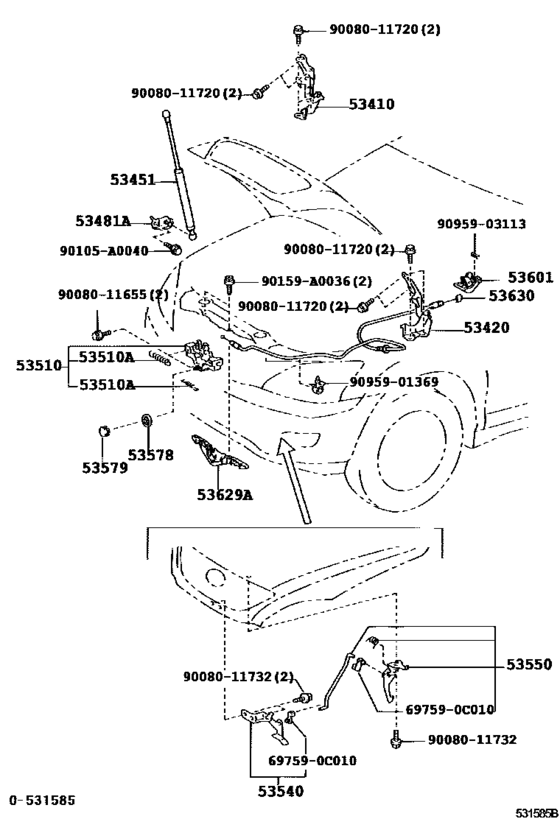

Hood Lock & Hinge ([09.2003 - ] (0309- )NAP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU38
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX330
- From
- 09.2003
- To
- 02.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-0E050
Hinge Assy, Hood, Rh
[09.2003 - 02.2006] MCU3#..NAP |
53410-0E050 |
— | ||
|
53420
|
53420
53420-0E050
Hinge Assy, Hood, Lh
[09.2003 - 02.2006] MCU3#..NAP |
53420-0E050 |
— | ||
|
53451
|
53451
53440-0E010
Rod, Hood Support
[09.2003 - 02.2006] MCU3#..NAP |
53440-0E010 |
— | ||
|
53481A
|
53481A
53481-0E010
Bracket, Hood Support, Rh
[09.2003 - 02.2006] MCU3#..NAP |
53481-0E010 |
— | ||
|
53510
|
53510
53510-0E010
Lock Assy, Hood
[09.2003 - 02.2006] MCU3#..NAP |
53510-0E010 |
— | ||
| replacement | |||||
|
53510
|
53510
53510-0C040 Lock Assy, HoodHOOD [09.2003 - 02.2006] MCU3#..NAP |
53510-0C040 |
US $41.86 |
||
|
53510A
|
53510A
90084-50002 Spring, Tension(For Hood Lock)[09.2003 - 02.2006] MCU3#..NAP WD=1.8,CW=5 |
90084-50002 |
US $1.75 |
||
|
53510A
|
53510A
90084-50003 Spring, Tension(For Hood Lock)[09.2003 - 02.2006] MCU3#..NAP WD=2.3,CW=10 |
90084-50003 |
US $5.53 |
||
|
53540
|
53540
53540-0E010
Lever Assy, Auxiliary Catch Release
[09.2003 - 02.2006] MCU3#..NAP |
53540-0E010 |
— | ||
|
53550
|
53550
53550-0E010
Hook Assy, Hood Auxiliary Catch
[09.2003 - 02.2006] MCU3#..NAP |
53550-0E010 |
— | ||
|
53578
|
53578
53578-0E010
Nut, Hood Lock
[09.2003 - 02.2006] MCU3#..NAP |
53578-0E010 |
— | ||
|
53579
|
53579
53579-0E010
Cap, Hood Lock Nut
[09.2003 - 02.2006] MCU3#..NAP |
53579-0E010 |
— | ||
|
53601
|
53601
53611-0E010-A0
Lever Sub-Assy, Hood Lock Control
[09.2003 - 02.2006] MCU3#..NAP IVORY,TRIM0# |
53611-0E010-A0 |
— | ||
|
53601
|
53601
53611-0E010-B0
Lever Sub-Assy, Hood Lock Control
[09.2003 - 02.2006] MCU3#..NAP LT.GRAY,TRIM1# |
53611-0E010-B0 |
— | ||
|
53601
|
53601
53611-0E010-C0
Lever Sub-Assy, Hood Lock Control
[09.2003 - 02.2006] MCU3#..NAP BLACK,TRIM2# |
53611-0E010-C0 |
— | ||
|
53629A
|
53629A
53629-0E010
Cover, Hood Lock Control Cable
[09.2003 - 02.2006] MCU3#..NAP |
53629-0E010 |
— | ||
|
53630
|
53630
53630-0E010
Cable Assy, Hood Lock Control
[09.2003 - 02.2006] MCU3#..NAP |
53630-0E010 |
— | ||
|
90105A0040
|
90105A0040
90105-A0040
New Genuine Part
|
90105-A0040 |
— | ||
|
90159A0036
|
90159A0036
90159-A0036 New Genuine Part |
90159-A0036 |
US $0.73 |
||
|
697590C010
|
697590C010
69759-0C010 Snap, Auxiliary Catch Release Lever Control LinkHOOD AUXILIARY CATCH HOOK CONTROL LINK |
69759-0C010 |
from US $1.61 |
||
|
9008011655
|
9008011655
90080-11655
New Genuine Part
|
90080-11655 |
— | ||
|
9008011720
|
9008011720
90080-11720
New Genuine Part
|
90080-11720 |
— | ||
|
9008011732
|
9008011732
90080-11732
New Genuine Part
|
90080-11732 |
— | ||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
|
9095903113
|
9095903113
90959-03113 SPRING TORSION |
90959-03113 |
US $0.70 |
||
