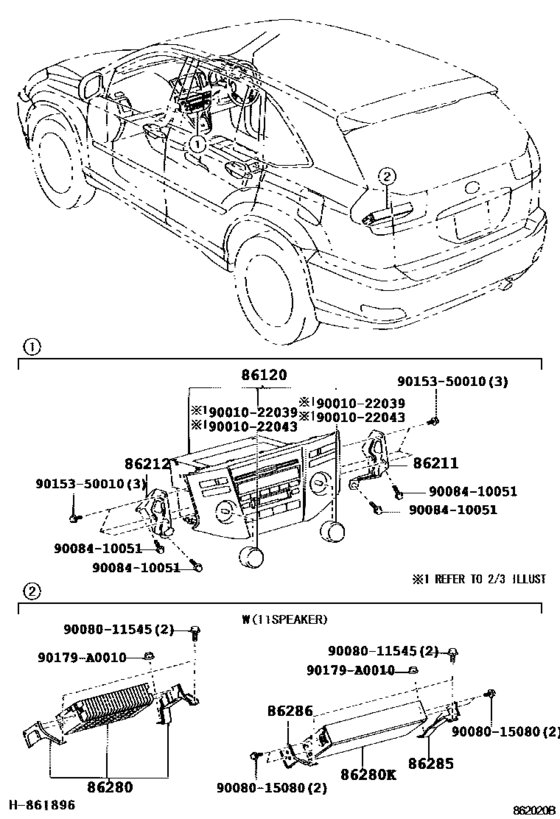

Radio Receiver & Amplifier & Condenser ([09.2003 - 02.2006] (0309-0602)NAP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU38
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX330
- From
- 09.2003
- To
- 02.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-0E010
Receiver Assy, Radio
[09.2003 - 09.2004] MCU3#..NAP PIONEER,ID=AP6829,AUDIO-AM/FM/CASETTE/CD-CHNGER 8SP; MCU3#..NAP PIONEER,ID=AP6829,TYPE A:REFER ILLUST. |
86120-0E010 |
— | ||
|
86120
|
86120
86120-0E020
Receiver Assy, Radio
[09.2003 - 09.2004] MCU3#..NAP PIONEER,ID=AP6830,AUDIO-MARK LEVINSON 11SP; MCU3#..NAP PIONEER,ID=AP6830,TYPE B:REFER ILLUST. |
86120-0E020 |
— | ||
|
86120
|
86120
86120-0E050
Receiver Assy, Radio
[09.2004 - 02.2006] MCU3#..NAP PIONEER,ID=AP6860,AUDIO-AM/FM/CASETTE/CD-CHNGER 8SP; MCU3#..NAP PIONEER,ID=AP6860,TYPE D:REFER ILLUST. |
86120-0E050 |
— | ||
|
86120
|
86120
86120-0E060
Receiver Assy, Radio
[09.2004 - 02.2006] MCU3#..NAP PIONEER,ID=AP6859,AUDIO-MARK LEVINSON 11SP; MCU3#..NAP PIONEER,ID=AP6859,TYPE E:REFER ILLUST. |
86120-0E060 |
— | ||
|
86120
|
86120
86120-48310
Receiver Assy, Radio
[09.2003 - 09.2004] MCU3#..NAP PIONEER,ID=P6828; MCU3#..NAP PIONEER,ID=P6828,TYPE C:REFER ILLUST. |
86120-48310 |
— | ||
|
86120
|
86120
86120-48570
Receiver Assy, Radio
[09.2004 - 02.2006] MCU3#..NAP PIONEER,ID=P6849; MCU3#..NAP PIONEER,ID=P6849,TYPE F:REFER ILLUST. |
86120-48570 |
— | ||
|
86211
|
86211
86211-48030 Bracket, Radio, No.1[09.2003 - 02.2006] MCU3#..NAP |
86211-48030 |
US $6.99 |
||
|
86212
|
86212
86212-48030 Bracket, Radio, No.2[09.2003 - 02.2006] MCU3#..NAP |
86212-48030 |
US $6.99 |
||
|
86280
|
86280
86100-0E010
Amplifier Assy, Stereo Component
[09.2003 - 09.2004] MCU3#..NAP |
86100-0E010 |
— | ||
|
86280
|
86280
86100-0E020
Amplifier Assy, Stereo Component
[09.2004 - 02.2006] MCU3#..NAP |
86100-0E020 |
— | ||
|
86280K
|
86280K
86280-0E020
Amplifier Assy, Stereo Component
[09.2003 - 08.2004] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86280-0E020 |
— | ||
| replacement | |||||
|
86280K
|
86280K
86280-0E021
Amplifier Assy, Stereo Component
[09.2003 - 08.2004] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86280-0E021 |
— | ||
|
86280K
|
86280K
86280-0E021
Amplifier Assy, Stereo Component
[09.2004 - 02.2006] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86280-0E021 |
— | ||
|
86285
|
86285
86285-48050 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [09.2003 - 09.2004] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86285-48050 |
US $21.55 |
||
|
86285
|
86285
86285-48070 Bracket, Amplifier, No.1AMPLIFIER, NO.1 [09.2004 - 02.2006] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86285-48070 |
US $19.95 |
||
|
86286
|
86286
86286-48030 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [09.2003 - 09.2004] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86286-48030 |
US $12.08 |
||
|
86286
|
86286
86286-48050 Bracket, Amplifier, No.2AMPLIFIER, NO.2 [09.2004 - 02.2006] MCU3#..NAP AUDIO-MARK LEVINSON 11SP |
86286-48050 |
US $12.08 |
||
|
90179A0010
|
90179A0010
90179-A0010 Nut, Rear Wiper Link Pivot, No.1 |
90179-A0010 |
US $1.16 |
||
| replacement | |||||
|
90179A0010
|
90179A0010
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9001022039
|
9001022039
90010-22039 New Genuine Part |
90010-22039 |
US $2.48 |
||
|
9001022043
|
9001022043
90010-22043
KNOB
|
90010-22043 |
— | ||
|
9008011545
|
9008011545
90080-11545 New Genuine Part |
90080-11545 |
US $1.60 |
||
|
9008015080
|
9008015080
90080-15080
SCREW CROSSRECESS
|
90080-15080 |
— | ||
|
9008410051
|
9008410051
90084-10051
New Genuine Part
|
90084-10051 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
