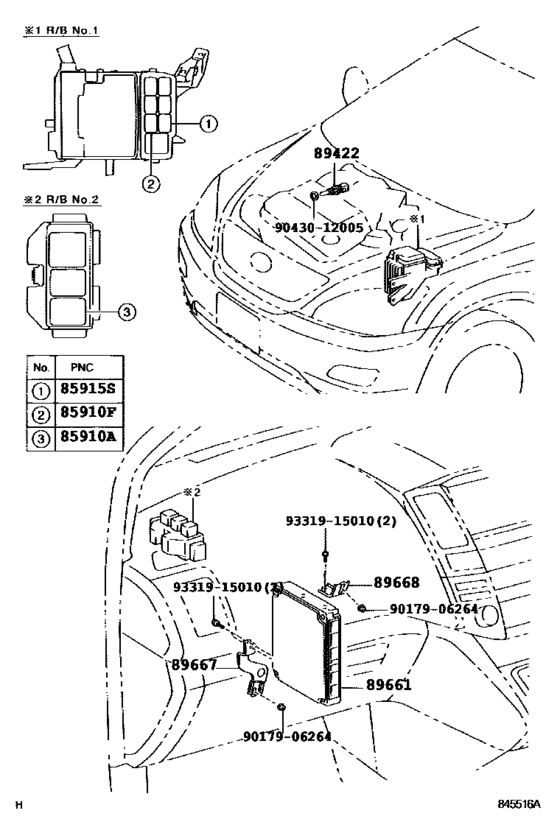

Electronic Fuel Injection System ([02.2003 - 01.2006] (0302-0601)RHD) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- MCU38
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02027 Relay[02.2003 - 01.2006] MCU3# |
90987-02027 |
from US $47.11 |
||
|
85910F
|
85910F
90987-02027 Relay[02.2003 - 01.2006] MCU3# |
90987-02027 |
from US $47.11 |
||
|
85915S
|
85915S
90987-02027 Relay[02.2003 - 01.2006] MCU3# |
90987-02027 |
from US $47.11 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[02.2003 - 01.2006] MCU3# |
89422-35010 |
from US $44.67 |
||
|
89661
|
89661
89661-48580
Computer, Engine Control
[02.2003 - 11.2005] MCU38..ARL |
89661-48580 |
— | ||
|
89661
|
89661
89661-48581
Computer, Engine Control
[11.2005 - 01.2006] MCU38..ARL |
89661-48581 |
— | ||
|
89667
|
89667
89667-48050 Bracket, Engine Control Computer[02.2003 - 04.2005] MCU38..ARL |
89667-48050 |
US $7.28 |
||
|
89668
|
89668
89668-48050 Bracket, Engine Control Computer, No.2[02.2003 - 04.2005] MCU38..ARL |
89668-48050 |
US $5.24 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.84 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
