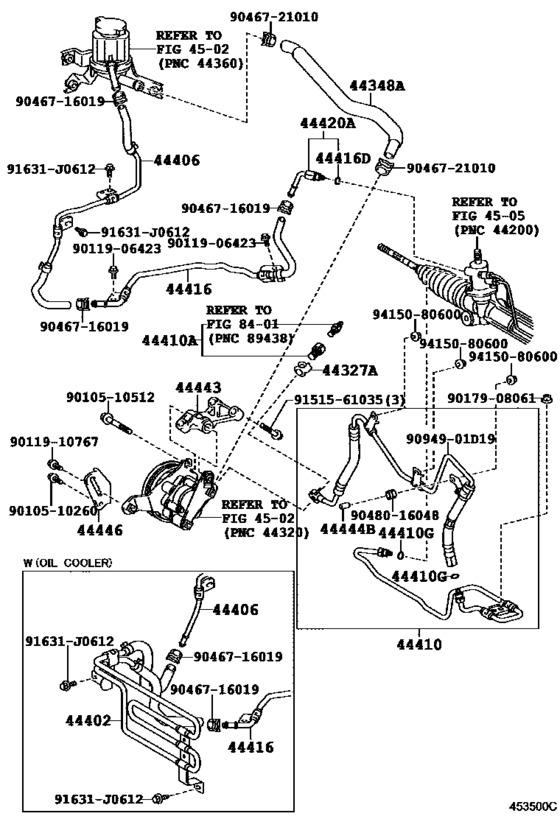

Power Steering Tube ([02.2003 - ] (0302- )MCU3#..RHD) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- MCU38
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- RX330
- From
- 02.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[02.2003 - 01.2006] MCU3# |
44327-30030 |
from US $2.15 |
||
|
44348A
|
44348A
44348-48080 Hose, Oil Reservoir To Pump, No.1[02.2003 - 01.2006] MCU3# |
44348-48080 |
from US $98.40 |
||
|
44402
|
44402
44402-48041 Cooler Sub-Assy, Power Steering Oil, No.1[02.2003 - 01.2006] MCU38; MCU35..LHD CHINA SPEC; MCU35..LHD TURKEY SPEC; MCU35..RHD SINGAPORE SPEC; MCU35..RHD BRUNEI SPEC; MCU35..RHD SOUTH AFRICA SPEC; MCU35..RHD HONG KONG SPEC |
44402-48041 |
US $182.40 |
||
|
44406
|
44406
44406-48100 Tube Sub-Assy, Return[02.2003 - 01.2006] MCU38; MCU35..LHD CHINA SPEC; MCU35..LHD TURKEY SPEC; MCU35..RHD SINGAPORE SPEC; MCU35..RHD BRUNEI SPEC; MCU35..RHD SOUTH AFRICA SPEC; MCU35..RHD HONG KONG SPEC |
44406-48100 |
from US $57.46 |
||
|
44410
|
44410
44410-48110 Tube Assy, Pressure Feed[02.2003 - 09.2003] MCU3#..RHD |
44410-48110 |
US $492.13 |
||
| replacements | |||||
|
44410
|
44410
17126-20040 Stay, Surge Tank, No.2[02.2003 - 09.2003] MCU3#..RHD |
17126-20040 |
US $51.83 |
||
|
44410
|
44410
44410-48111 Tube Assy, Pressure Feed[02.2003 - 09.2003] MCU3#..RHD |
44410-48111 |
US $466.46 |
||
|
44410
|
44410
44410-48111 Tube Assy, Pressure Feed[09.2003 - 01.2006] MCU3#..RHD |
44410-48111 |
US $466.46 |
||
|
44410A
|
44410A
44338-33090 Bolt, Union(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3# |
44338-33090 |
US $57.79 |
||
|
44410G
|
44410G
90301-07009 Ring, O(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3# |
90301-07009 |
from US $4.29 |
||
|
44416
|
44416
44416-48051 Tube, Return(For Steering Gear Outlet)[02.2003 - 01.2006] MCU3#..RHD |
44416-48051 |
US $57.66 |
||
| replacement | |||||
|
44416
|
44416
44416-48052 Tube, Return(For Steering Gear Outlet)[02.2003 - 01.2006] MCU3#..RHD |
44416-48052 |
from US $71.74 |
||
|
44416D
|
44416D
90301-07009 Ring, O(For Pressure Feed Tube)[02.2003 - 01.2006] MCU3# |
90301-07009 |
from US $4.29 |
||
|
44420A
|
44420A
44420-48020 Tube Assy, Return[02.2003 - 01.2006] MCU3#..RHD |
44420-48020 |
US $13.87 |
||
|
44443
|
44443
44443-33041 Bracket, Pump[02.2003 - 01.2006] MCU3# |
44443-33041 |
US $49.80 |
||
|
44444B
|
44444B
90387-09066 Collar (For Pump Rear Stay)[02.2003 - 01.2006] MCU3# |
90387-09066 |
US $2.18 |
||
|
44446
|
44446
44446-28030 Strut, Adjusting[02.2003 - 01.2006] MCU3# |
44446-28030 |
US $10.48 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9094901D19
|
9094901D19
90949-01D19
New Genuine Part
|
90949-01D19 |
— | ||
|
9010510260
|
9010510260
90105-10260 New Genuine Part |
90105-10260 |
US $2.62 |
||
|
9010510512
|
9010510512
90105-10512 New Genuine Part |
90105-10512 |
US $4.08 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011910767
|
9011910767
90119-10767 New Genuine Part |
90119-10767 |
US $8.06 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9048016048
|
9048016048
90480-16048 New Genuine Part |
90480-16048 |
US $3.06 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.94 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
