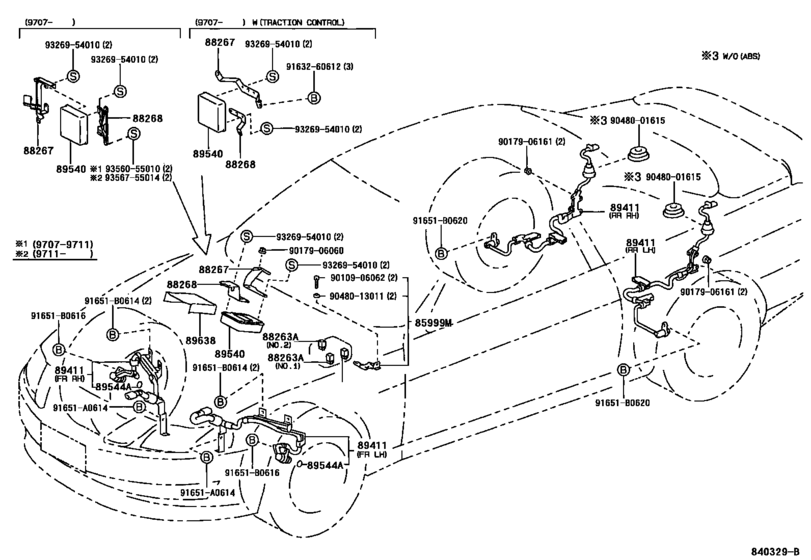

Abs & Vsc ([08.1996 - ] (9608- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85999M
|
85999M
85999-24050 Bracket, Relay[04.1991 -] JZZ31,UZZ30 |
85999-24050 |
US $10.92 |
||
|
88263A
|
88263A
88263-24020 Relay, Skid Control[04.1991 -] JZZ31,UZZ30 NO.1(BROWN) |
88263-24020 |
from US $45.98 |
||
|
88263A
|
88263A
88263-24030 Relay, Skid Control[08.1996 -] JZZ31,UZZ30 NO.2(GRAY) |
88263-24030 |
from US $48.40 |
||
|
88267
|
88267
88267-24110 Bracket, Skid Control Computer, No.1SKID CONTROL COMPUTER, NO.1 [09.1997 -] JZZ31,UZZ30 W(TRACTION CONTROL) |
88267-24110 |
US $17.04 |
||
|
88267
|
88267
89634-24050 Bracket, Skid Control Computer, No.1SKID CONTROL COMPUTER, NO.1 [09.1997 -] JZZ31,UZZ30 |
89634-24050 |
US $19.80 |
||
|
88268
|
88268
88268-24110 Bracket, Skid Control Computer, No.2SKID CONTROL COMPUTER, NO.2 [09.1997 -] JZZ31,UZZ30 W(TRACTION CONTROL) |
88268-24110 |
US $7.28 |
||
|
88268
|
88268
89634-24060 Bracket, Skid Control Computer, No.2SKID CONTROL COMPUTER, NO.2 [09.1997 -] JZZ31,UZZ30 |
89634-24060 |
US $17.76 |
||
|
89411
|
89411
89542-14030
Sensor, Speed
[08.1996 -] JZZ31,UZZ30 FRONT RH |
89542-14030 |
— | ||
|
89411
|
89411
89543-14030
Sensor, Speed
[08.1996 -] JZZ31,UZZ30 FRONT LH |
89543-14030 |
— | ||
|
89411
|
89411
89545-24020 Sensor, Speed[08.1996 -] JZZ31,UZZ30 REAR RH |
89545-24020 |
US $292.66 |
||
|
89411
|
89411
89546-30030 Sensor, Speed[08.1996 -] JZZ31,UZZ30 REAR LH |
89546-30030 |
US $292.66 |
||
|
89540
|
89540
89541-24060 Computer Assy, Skid Control[08.1996 -] JZZ31,UZZ30..USA |
89541-24060 |
US $808.08 |
||
|
89540
|
89540
89541-24080
Computer Assy, Skid Control
[09.1997 -] JZZ31,UZZ30 W(TRACTION CONTROL) |
89541-24080 |
— | ||
|
89544A
|
89544A
96721-19016 Ring, O(For Oil Pipe No.1)[03.1993 -] JZZ31,UZZ30 |
96721-19016 |
US $3.06 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9010906062
|
9010906062
90109-06062 New Genuine Part |
90109-06062 |
US $3.20 |
||
|
9017906060
|
9017906060
90179-06060 Nut, Wing(For Air Cleaner) |
90179-06060 |
US $2.08 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9048001615
|
9048001615
90480-01615 New Genuine Part |
90480-01615 |
US $5.39 |
||
|
9048013011
|
9048013011
90480-13011 New Genuine Part |
90480-13011 |
US $8.01 |
||
|
9163260612
|
9163260612
91632-60612 BOLT WWASHER |
91632-60612 |
US $1.46 |
||
| replacement | |||||
|
9163260612
|
9163260612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $0.96 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
