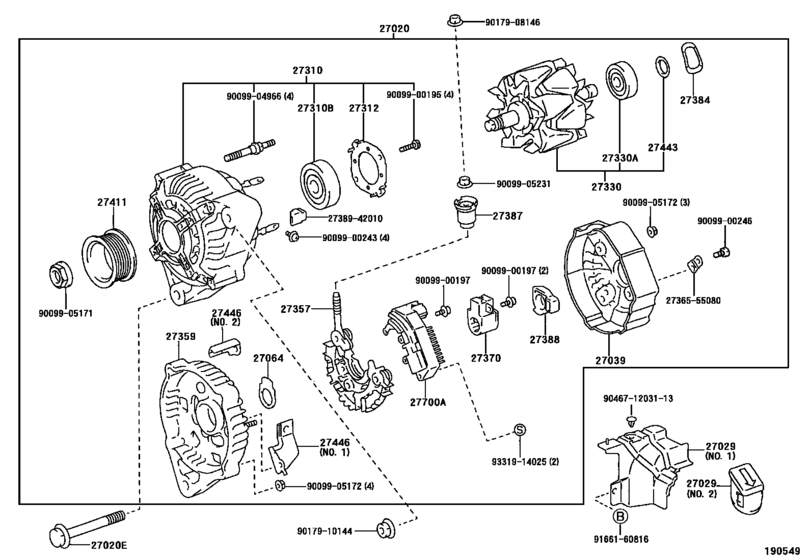

Alternator ([09.1997 - ] 12V 100A (9709- )1UZFE) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-50210 Alternator Assy[09.1997 -] 1UZFE..UZZ30 12V 100A |
27060-50210 |
US $1,820 |
||
| replacement | |||||
|
27020
|
27020
27060-50230 Alternator Assy[09.1997 -] 1UZFE..UZZ30 12V 100A |
27060-50230 |
US $1,805.44 |
||
|
27020E
|
27020E
90119-10791 Bolt(For Alternator)[09.1997 -] 1UZFE..UZZ30 |
90119-10791 |
US $3.67 |
||
|
27029
|
27029
27029-46020
Cover, Alternator
[01.1994 -] 2JZGE,1UZFE..JZZ31,UZZ30 NO.2 |
27029-46020 |
— | ||
|
27029
|
27029
27029-46030 Cover, Alternator[01.1994 -] 2JZGE,1UZFE..JZZ31,UZZ30 NO.1 |
27029-46030 |
US $21.69 |
||
|
27039
|
27039
27039-50090
Cover, Alternator Rear End
[01.1994 - 06.1998] 1UZFE..UZZ30 |
27039-50090 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[01.1994 - 06.1998] 1UZFE..UZZ30 |
27039-17230 |
— | ||
|
27039
|
27039
27039-50250
Cover, Alternator Rear End
[06.1998 - 07.2000] 1UZFE..UZZ30 |
27039-50250 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[06.1998 - 07.2000] 1UZFE..UZZ30 |
27039-17230 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-50030
Frame Assy, Drive End, Alternator
[01.1994 -] 1UZFE..UZZ30 |
27310-50030 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27312-42010 |
— | ||
|
27330
|
27330
27330-46090
Rotor Assy, Alternator
[05.1995 -] 1UZFE..UZZ30 |
27330-46090 |
— | ||
|
27330A
|
27330A
90099-10194 Bearing(For Alternator Rotor)[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
90099-10194 |
from US $8.56 |
||
|
27357
|
27357
27357-74170 Holder, Alternator, W/rectifier[01.1994 -] 1UZFE..UZZ30 |
27357-74170 |
US $107.33 |
||
|
27359
|
27359
27359-50030
Frame, Alternator Rectifier End
[04.1991 -] 1UZFE..UZZ30 |
27359-50030 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42040
Insulator, Terminal
[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27387-42040 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1996 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-46080
Pulley, Alternator
[05.1995 -] 2JZGE..JZZ31;1UZFE..UZZ30..5FC |
27411-46080 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[04.1991 -] 2JZGE,1UZFE..JZZ31,UZZ30 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-46130
Clip, Alternator Cord
[09.1997 -] 1UZFE..UZZ30 NO.1 |
27446-46130 |
— | ||
|
27446
|
27446
27446-62050
Clip, Alternator Cord
[09.1997 -] 1UZFE..UZZ30 NO.2 |
27446-62050 |
— | ||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[09.1997 -] 1UZFE..UZZ30 |
27700-50030 |
from US $160.78 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
904671203113
|
904671203113
90467-12031-13 Clip (For Quarter Trim) |
90467-12031-13 |
US $1.89 |
||
| replacement | |||||
|
904671203113
|
904671203113
90467-12031-B0 Clip (For Quarter Trim) |
90467-12031-B0 |
from US $1.76 |
||
