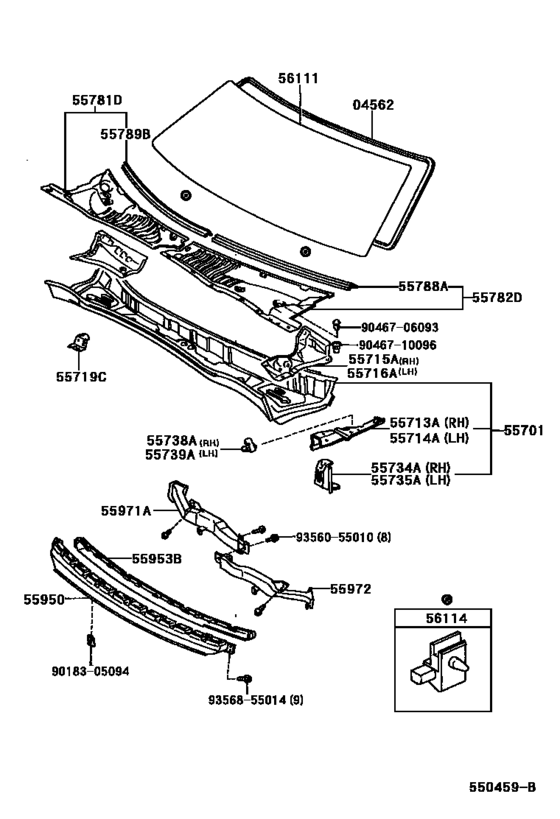

Cowl Panel & Windshield Glass ([09.1997 - ] (9709- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[04.1991 - 07.2000] JZZ31,UZZ30 |
04562-12010 |
from US $31.92 |
||
|
55701
|
55701
55700-24091 Panel Sub-Assy, Cowl[09.1992 -] UZZ30 |
55700-24091 |
US $594.05 |
||
| replacement | |||||
|
55701
|
55701
55700-24902 Panel Sub-Assy, Cowl[09.1992 -] UZZ30 |
55700-24902 |
US $594.05 |
||
|
55713A
|
55713A
55713-24030 Panel, Cowl Top Side, Rh[04.1991 -] JZZ31,UZZ30 |
55713-24030 |
US $28.97 |
||
|
55714A
|
55714A
55714-24030 Panel, Cowl Top Side, Lh[04.1991 -] JZZ31,UZZ30 |
55714-24030 |
US $28.97 |
||
|
55715A
|
55715A
55715-24040 Brace, Cowl Top To Apron, RhCOWL TOP TO APRON, RH [04.1991 -] JZZ31,UZZ30 |
55715-24040 |
US $53.29 |
||
|
55716A
|
55716A
55716-24040 Brace, Cowl Top To Apron, LhCOWL TOP TO APRON, LH [04.1991 -] JZZ31,UZZ30 |
55716-24040 |
US $28.97 |
||
|
55719C
|
55719C
55719-24030 Bracket, Windshield Wiper MotorWINDSHIELD WIPER MOTOR [04.1991 -] JZZ31,UZZ30 |
55719-24030 |
US $18.20 |
||
|
55734A
|
55734A
55734-24040 Plate, Water Guard, Rh[04.1991 -] JZZ31,UZZ30 |
55734-24040 |
US $6.41 |
||
|
55735A
|
55735A
55735-24040 Plate, Water Guard, Lh[04.1991 -] JZZ31,UZZ30 |
55735-24040 |
US $6.41 |
||
|
55738A
|
55738A
55738-24020 Stopper, Hood, Rh[04.1991 -] JZZ31,UZZ30 |
55738-24020 |
US $9.17 |
||
|
55739A
|
55739A
55739-24030 Stopper, Hood, Lh[04.1991 -] JZZ31,UZZ30 |
55739-24030 |
US $9.17 |
||
|
55781D
|
55781D
55781-24060
Louver, Cowl Top Ventilator, Rh
[04.1991 -] JZZ31,UZZ30 |
55781-24060 |
— | ||
|
55782D
|
55782D
55782-24030
Louver, Cowl Top Ventilator, Lh
[04.1991 -] JZZ31,UZZ30 |
55782-24030 |
— | ||
|
55788A
|
55788A
55788-24010 Protector, Cowl Top Ventilator Louver[04.1991 -] JZZ31,UZZ30 |
55788-24010 |
US $13.83 |
||
|
55789B
|
55789B
55789-24010 Protector, Cowl Top Venttinator Louver, No.2[04.1991 -] JZZ31,UZZ30 |
55789-24010 |
US $14.56 |
||
|
55950
|
55950
55951-24030 Nozzle Assy, Defroster[04.1991 -] JZZ31,UZZ30 |
55951-24030 |
US $62.46 |
||
|
55953B
|
55953B
55953-24020 Nozzle, Defroster, Rear[04.1991 -] JZZ31,UZZ30 |
55953-24020 |
US $62.46 |
||
|
55971A
|
55971A
55971-24051 Duct, Side Defroster Nozzle, No.1[05.1992 -] JZZ31,UZZ30 |
55971-24051 |
US $36.25 |
||
|
55972
|
55972
55972-24030 Duct, Side Defroster Nozzle, No.2[04.1991 -] JZZ31,UZZ30 |
55972-24030 |
US $36.25 |
||
|
56111
|
56111
56111-24150 Glass, WindshieldWINDSHIELD [08.1996 -] JZZ31,UZZ30 *LAM,T=4.7,GREEN |
56111-24150 |
US $1,442.90 |
||
|
56114
|
56114
56110-24010
Retainer, Windshield Glass
[04.1991 -] JZZ31,UZZ30 |
56110-24010 |
— | ||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046706093
|
9046706093
90467-06093 CLIP |
90467-06093 |
US $3.20 |
||
|
9046710096
|
9046710096
90467-10096
New Genuine Part
|
90467-10096 |
— | ||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $0.96 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
