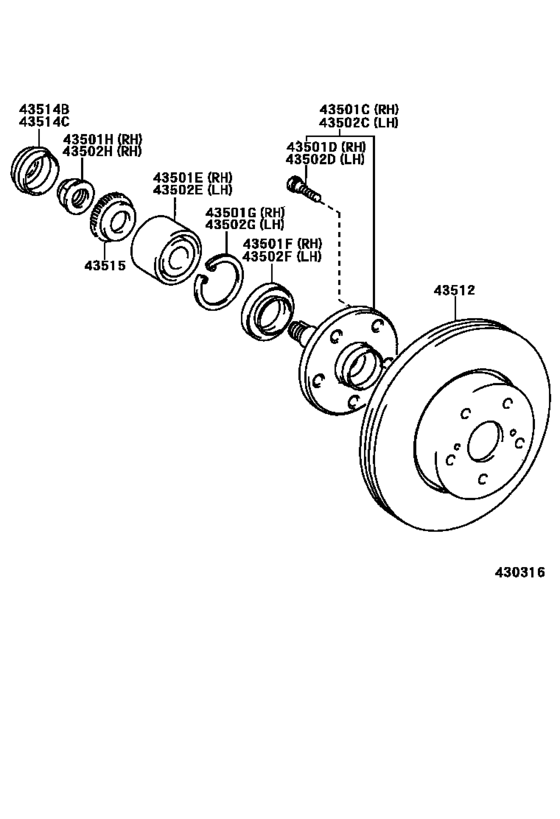

Front Axle Hub ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-30140 Hub Sub-Assy, Front Axle[08.1991 -] JZZ31,UZZ30 |
43502-30140 |
US $185.76 |
||
|
43501D
|
43501D
90942-02070 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
43501D
|
43501D
90942-02049 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02049 |
US $3.84 |
||
|
43501D
|
43501D
90942-02082 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90903-63006 Bearing (For Front Axle Hub)[10.1993 -] JZZ31,UZZ30 |
90903-63006 |
from US $75.93 |
||
|
43501F
|
43501F
90311-50008 Seal, Oil (For Front Axle Hub)[04.1991 -] JZZ31,UZZ30 |
90311-50008 |
from US $8.32 |
||
|
43501G
|
43501G
90521-82001 Ring, Hole Snap (For Front Axle Hub)[04.1991 -] JZZ31,UZZ30 |
90521-82001 |
US $4.80 |
||
|
43501H
|
43501H
90179-24005 Nut (For Front Axle Shaft)[04.1991 -] JZZ31,UZZ30 |
90179-24005 |
from US $2.22 |
||
|
43502C
|
43502C
43502-30140 Hub Sub-Assy, Front Axle[08.1991 -] JZZ31,UZZ30 |
43502-30140 |
US $185.76 |
||
|
43502D
|
43502D
90942-02070 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
43502D
|
43502D
90942-02049 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02049 |
US $3.84 |
||
|
43502D
|
43502D
90942-02082 Bolt, Hub[08.1991 -] JZZ31,UZZ30 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90903-63006 Bearing (For Front Axle Hub)[10.1993 -] JZZ31,UZZ30 |
90903-63006 |
from US $75.93 |
||
|
43502F
|
43502F
90311-50008 Seal, Oil (For Front Axle Hub)[04.1991 -] JZZ31,UZZ30 |
90311-50008 |
from US $8.32 |
||
|
43502G
|
43502G
90521-82001 Ring, Hole Snap (For Front Axle Hub)[04.1991 -] JZZ31,UZZ30 |
90521-82001 |
US $4.80 |
||
|
43502H
|
43502H
90179-24005 Nut (For Front Axle Shaft)[04.1991 -] JZZ31,UZZ30 |
90179-24005 |
from US $2.22 |
||
|
43512
|
43512
43512-24051
Disc, Front
[04.1991 - 08.1998] UZZ30 |
43512-24051 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-50100 Disc, Front[04.1991 - 08.1998] UZZ30 |
43512-50100 |
US $239.04 |
||
|
43514B
|
43514B
43514-24010
Cap, Front Axle Hub Grease, Rh
[04.1991 -] JZZ31,UZZ30 |
43514-24010 |
— | ||
|
43514C
|
43514C
43514-24010
Cap, Front Axle Hub Grease, Rh
[04.1991 -] JZZ31,UZZ30 |
43514-24010 |
— | ||
|
43515
|
43515
43515-24010 Rotor, Skid Control, Front[04.1991 -] JZZ31,UZZ30 |
43515-24010 |
US $17.94 |
||
