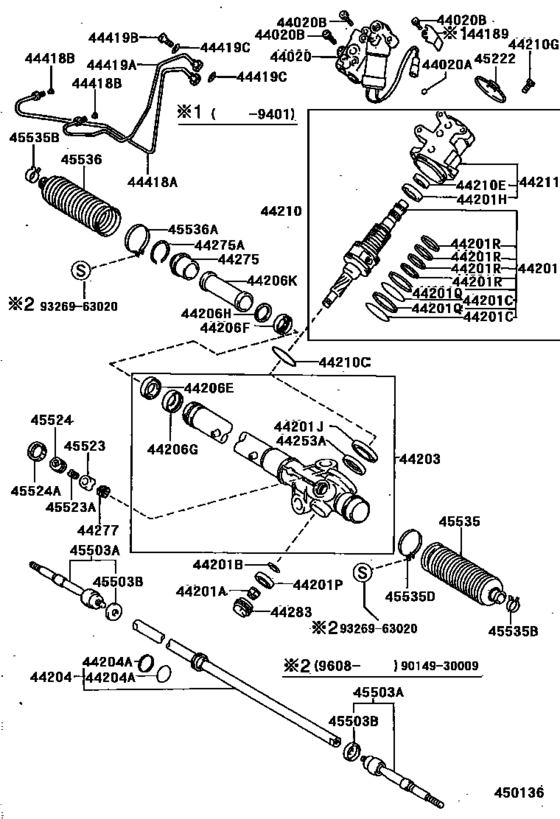

Front Steering Gear & Link ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020
|
44020
44020-24060 Valve Assy, Pressure Control W/solenoid ValvePRESSURE CONTROL W/SOLENOID VALVE [01.1994 -] JZZ31,UZZ30 |
44020-24060 |
US $607.15 |
||
|
44020A
|
44020A
90301-11009 Ring, O (For Front Power Take-Off Shaft)[04.1991 - 01.2000] JZZ31,UZZ30 |
90301-11009 |
from US $1.93 |
||
|
44020B
|
44020B
90110-08012 Bolt(For Power Steering Pressure Control Valve)[04.1991 -] JZZ31,UZZ30 *8-1.25PX29-26 |
90110-08012 |
US $0.96 |
||
|
44020B
|
44020B
90110-08014 Bolt(For Power Steering Pressure Control Valve)[04.1991 -] JZZ31,UZZ30 *8-1.25PX52-49.5 |
90110-08014 |
US $2.48 |
||
|
44201
|
44201
44201-24120 Valve Sub-Assy, Power Steering Control[01.1994 -] JZZ31,UZZ30 |
44201-24120 |
US $294.11 |
||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[04.1991 - 09.1999] JZZ31,UZZ30 |
94184-61200 |
from US $1.13 |
||
|
44201A
|
44201A
94184-61201 Nut, Lock(For Power Steering Control Valve)[09.1999 -] JZZ31,UZZ30 |
94184-61201 |
US $1.76 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90560-12030 |
US $4.37 |
||
|
44201C
|
44201C
90562-50001 Ring(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90562-50001 |
US $2.24 |
||
|
44201H
|
44201H
90363-19002 Bearing(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90363-19002 |
US $21.67 |
||
|
44201J
|
44201J
90363-30054 Bearing(For Power Steering Control Valve Center)[04.1991 -] JZZ31,UZZ30 |
90363-30054 |
US $21.14 |
||
|
44201P
|
44201P
90363-12014 Bearing(For Power Steering Control Valve Lower)[07.1997 -] JZZ31,UZZ30 |
90363-12014 |
from US $11.01 |
||
|
44201Q
|
44201Q
90301-45002 Ring(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90301-45002 |
US $4.32 |
||
|
44201R
|
44201R
90562-33008 Ring(For Power Steering Control Valve)[04.1997 -] JZZ31,UZZ30 |
90562-33008 |
from US $1.92 |
||
|
44203
|
44203
44203-24090 Housing Sub-Assy, Power Steering Rack[08.1996 -] JZZ31,UZZ30 |
44203-24090 |
US $604.24 |
||
|
44204
|
44204
44204-24040
Rack Sub-Assy, Power Steering
[04.1991 -] JZZ31,UZZ30 |
44204-24040 |
— | ||
|
44204A
|
44204A
90301-36004 Ring(For Rack Steering Piston)[04.1991 -] JZZ31,UZZ30 INNER |
90301-36004 |
from US $3.84 |
||
|
44204A
|
44204A
90560-40008 Ring(For Rack Steering Piston)[04.1997 -] JZZ31,UZZ30 OUTER |
90560-40008 |
US $1.02 |
||
|
44206E
|
44206E
90310-26021 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1996 - 08.1998] JZZ31,UZZ30 NOK |
90310-26021 |
from US $3.04 |
||
|
44206E
|
44206E
90310-26022 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1996 - 08.1998] JZZ31,UZZ30 KOYO |
90310-26022 |
US $2.77 |
||
| replacement | |||||
|
44206E
|
44206E
90310-26021 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1996 - 08.1998] JZZ31,UZZ30 KOYO |
90310-26021 |
from US $3.04 |
||
|
44206K
|
44206K
90905-61017 Spacer, No.3(For Power Steering Cylinder Tube)[09.1995 -] JZZ31,UZZ30 |
90905-61017 |
US $19.66 |
||
|
44210
|
44210
44210-24130 Valve Assy, Power Steering Control[01.1994 - 01.2000] JZZ31,UZZ30 |
44210-24130 |
US $563.47 |
||
| replacements | |||||
|
44210
|
44210
44210-24131 Valve Assy, Power Steering Control[01.1994 - 01.2000] JZZ31,UZZ30 |
44210-24131 |
US $563.47 |
||
|
44210
|
44210
90301-11009 Ring, O (For Front Power Take-Off Shaft)[01.1994 - 01.2000] JZZ31,UZZ30 |
90301-11009 |
from US $1.93 |
||
|
44210
|
44210
44210-24131 Valve Assy, Power Steering Control[01.2000 -] JZZ31,UZZ30 |
44210-24131 |
US $563.47 |
||
|
44210C
|
44210C
90301-57003 Ring, O(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90301-57003 |
from US $2.83 |
||
|
44210E
|
44210E
90311-19014 Seal, Oil(For Power Steering Control Valve)[12.1996 -] JZZ31,UZZ30 |
90311-19014 |
US $2.77 |
||
| replacement | |||||
|
44210E
|
44210E
90311-19016 Seal, Oil(For Power Steering Control Valve)[12.1996 -] JZZ31,UZZ30 |
90311-19016 |
from US $3.04 |
||
|
44210G
|
44210G
90110-08012 Bolt(For Power Steering Pressure Control Valve)[04.1991 -] JZZ31,UZZ30 |
90110-08012 |
US $0.96 |
||
|
44211
|
44211
44022-14050 Housing, Control ValveCONTROL VALVE [04.1991 - 01.2000] JZZ31,UZZ30 |
44022-14050 |
US $225.68 |
||
| replacements | |||||
|
44211
|
44211
44211-50050 Housing, Control ValveCONTROL VALVE [04.1991 - 01.2000] JZZ31,UZZ30 |
44211-50050 |
US $195.10 |
||
|
44211
|
44211
90301-11009 Ring, O (For Front Power Take-Off Shaft)[04.1991 - 01.2000] JZZ31,UZZ30 |
90301-11009 |
from US $1.93 |
||
|
44211
|
44211
90311-19016 Seal, Oil(For Power Steering Control Valve)[04.1991 - 01.2000] JZZ31,UZZ30 |
90311-19016 |
from US $3.04 |
||
|
44211
|
44211
90363-19002 Bearing(For Power Steering Control Valve)[04.1991 - 01.2000] JZZ31,UZZ30 |
90363-19002 |
US $21.67 |
||
|
44211
|
44211
44022-14051 Housing, Control Valve[01.2000 -] JZZ31,UZZ30 |
44022-14051 |
US $225.68 |
||
| replacements | |||||
|
44211
|
44211
44211-50050 Housing, Control ValveCONTROL VALVE [01.2000 -] JZZ31,UZZ30 |
44211-50050 |
US $195.10 |
||
|
44211
|
44211
90311-19016 Seal, Oil(For Power Steering Control Valve)[01.2000 -] JZZ31,UZZ30 |
90311-19016 |
from US $3.04 |
||
|
44211
|
44211
90363-19002 Bearing(For Power Steering Control Valve)[01.2000 -] JZZ31,UZZ30 |
90363-19002 |
US $21.67 |
||
|
44253A
|
44253A
90310-30013 Seal, Oil, No.2(For Power Steering Cylinder Tube)[04.1997 -] JZZ31,UZZ30 |
90310-30013 |
from US $3.04 |
||
|
44275
|
44275
44275-24020 Stopper, Cylinder End[04.1991 -] JZZ31,UZZ30 |
44275-24020 |
from US $17.26 |
||
|
44275A
|
44275A
90521-53002 Ring, Hole Snap(For Cylinder End Stopper)[04.1991 -] JZZ31,UZZ30 |
90521-53002 |
US $3.68 |
||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[04.1991 -] JZZ31,UZZ30 |
44283-12010 |
US $10.83 |
||
|
44418A
|
44418A
44418-14090 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [05.1993 -] JZZ31,UZZ30 |
44418-14090 |
US $19.66 |
||
|
44418B
|
44418B
90410-04003 Seat, Union(For Power Steering Control Valve)[04.1991 -] JZZ31,UZZ30 |
90410-04003 |
US $2.72 |
||
|
44419A
|
44419A
44419-14090 Tube, Steering Right Turn PressureSTEERING LEFT TURN PRESSURE [05.1993 -] JZZ31,UZZ30 |
44419-14090 |
US $23.30 |
||
|
44419B
|
44419B
90401-12017 Bolt, Union(For Steering Turn Pressure Tube)[04.1991 -] JZZ31,UZZ30 |
90401-12017 |
US $3.49 |
||
|
44419C
|
44419C
90430-12013 Gasket(For Fuel Pipe)[04.1991 -] JZZ31,UZZ30 |
90430-12013 |
US $3.20 |
||
|
45222
|
45222
45222-50010 Cover, Steering Gear Dust[04.1991 -] JZZ31,UZZ30 |
45222-50010 |
US $6.84 |
||
|
45503A
|
45503A
45503-39095 End Sub-Assy, Steering Rack[08.1995 -] JZZ31,UZZ30 |
45503-39095 |
from US $91.76 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[04.1991 -] JZZ31,UZZ30 |
90214-14007 |
from US $1.56 |
||
|
45523
|
45523
45053-50010
Guide, Rack(For Steering Gear)
[07.1997 -] JZZ31,UZZ30 |
45053-50010 |
— | ||
|
45523A
|
45523A
90501-29036 Spring(For Steering Gear Rack Guide)[01.1994 - 12.1997] JZZ31,UZZ30 |
90501-29036 |
US $3.64 |
||
|
45523A
|
45523A
90501-30017 Spring(For Steering Gear Rack Guide)[12.1997 -] JZZ31,UZZ30 |
90501-30017 |
US $3.79 |
||
|
45524
|
45524
45524-50010 Cap, Rack Housing[07.1992 -] JZZ31,UZZ30 |
45524-50010 |
US $8.74 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[04.1991 -] JZZ31,UZZ30 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-24030 Boot, Steering Rack, No.1[04.1991 -] JZZ31,UZZ30 |
45535-24030 |
from US $19.03 |
||
|
45535B
|
45535B
90467-19019 Clip[02.1996 -] JZZ31,UZZ30 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-50004 Clamp(For Steering Rack Boot No.1)[04.1991 -] JZZ31,UZZ30 |
90460-50004 |
US $6.40 |
||
|
45536
|
45536
45535-24040 Boot, Steering Rack, No.2[04.1991 -] JZZ31,UZZ30 |
45535-24040 |
from US $19.46 |
||
|
45536A
|
45536A
90460-54003 Clamp(For Steering Rack Boot No.2)[04.1991 -] JZZ31,UZZ30 |
90460-54003 |
US $6.40 |
||
|
9014930009
|
9014930009
90149-30009 Screw(For Steering Rack Boot Clamp) |
90149-30009 |
US $1.76 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
