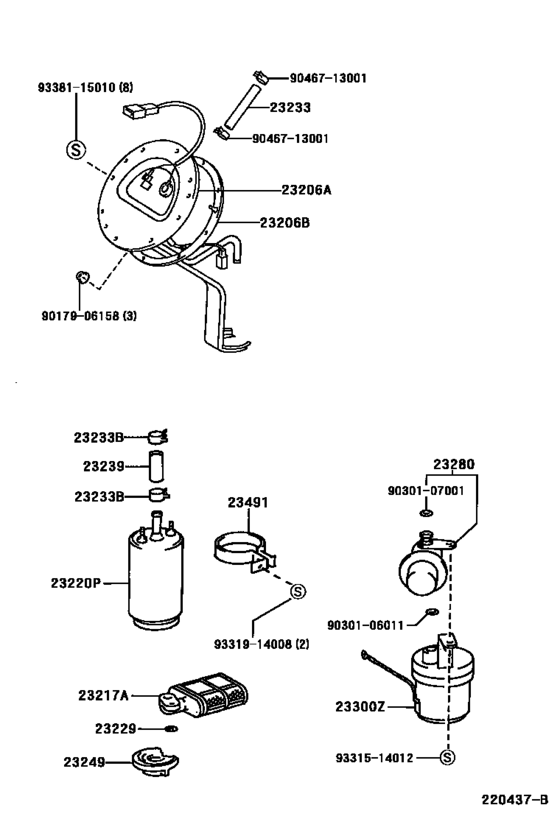

Fuel Injection System ([09.1997 - ] (9709- )1UZFE) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23206A
|
23206A
77203-24030 Bracket, Fuel Pump[09.1997 - 07.2000] 2JZGE..JZZ31; 1UZFE..UZZ30 |
77203-24030 |
US $119.39 |
||
|
23206B
|
23206B
77169-50020 Gasket, Fuel Pump Bracket[08.1996 - 07.2000] 1UZFE..UZZ30 |
77169-50020 |
US $10.56 |
||
|
23217A
|
23217A
23217-16451 Filter, Fuel Pump[03.1993 -] 2JZGE..JZZ31; 1UZFE..UZZ30 |
23217-16451 |
US $11.36 |
||
|
23220P
|
23220P
23221-62010 Pump Assy, Fuel[04.1991 -] 1UZFE..UZZ30 |
23221-62010 |
US $416.42 |
||
| replacement | |||||
|
23220P
|
23220P
23221-66040 Pump Assy, FuelFUEL [04.1991 -] 1UZFE..UZZ30 |
23221-66040 |
from US $416.42 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[04.1991 -] 1UZFE..UZZ30 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[04.1991 -] 1UZFE..UZZ30 |
23219-03010 |
US $2.55 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.1991 -] 1UZFE..UZZ30 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[04.1991 -] 1UZFE..UZZ30 |
96135-51300 |
from US $1.92 |
||
|
23239
|
23239
23239-63010 Hose, Fuel Pump[04.1991 -] 1UZFE..UZZ30 |
23239-63010 |
from US $2.09 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[04.1991 -] 1UZFE..UZZ30 |
23249-74610 |
from US $8.56 |
||
|
23280
|
23280
23280-50040 Regulator Assy, Fuel Pressure[09.1997 -] 2JZGE..JZZ31; 1UZFE..UZZ30 |
23280-50040 |
US $131.04 |
||
|
23300Z
|
23300Z
23300-20050 Filter, Fuel(For Fuel Tank)[09.1997 -] 2JZGE..JZZ31; 1UZFE..UZZ30 |
23300-20050 |
from US $58.68 |
||
|
23491
|
23491
23491-74010 Clamp, Fuel Filter Earth[09.1997 -] 2JZGE..JZZ31; 1UZFE..UZZ30 |
23491-74010 |
US $4.89 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9030106011
|
9030106011
90301-06011 Ring, O(For Fuel Pressure Regulator) |
90301-06011 |
US $3.14 |
||
|
9030107001
|
9030107001
90301-07001 Ring, O(For Fuel Injector) |
90301-07001 |
from US $2.93 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
