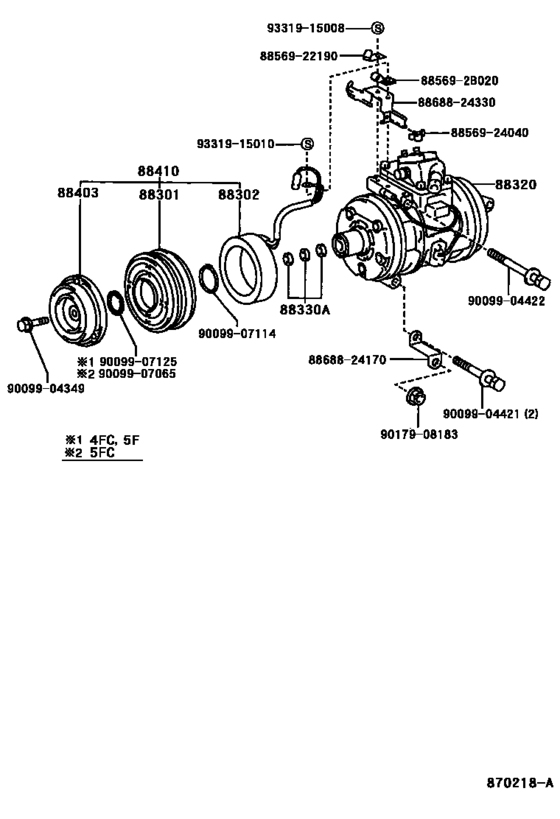

Heating & Air Conditioning - Compressor ([04.1991 - ] (9104- )UZZ30) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-30380
Rotor Sub-Assy, Magnet Clutch
[04.1991 -] UZZ30 |
88412-30380 |
— | ||
|
88302
|
88302
88411-24030
Stator Sub-Assy, Magnet Clutch
[08.1993 -] UZZ30 |
88411-24030 |
— | ||
|
88320
|
88320
88320-24140
Compressor Assy, Cooler
[08.1993 -] UZZ30 |
88320-24140 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[01.1992 -] JZZ31,UZZ30 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1993 -] JZZ31,UZZ30 |
88403-30290 |
US $86.66 |
||
|
88410
|
88410
88410-24040 Clutch Assy, Magnet[08.1993 -] UZZ30 |
88410-24040 |
US $585.31 |
||
|
885692B020
|
885692B020
88569-2B020
Clamp (for Cooler Relay)
|
88569-2B020 |
— | ||
|
8856922190
|
8856922190
88569-22190
Clamp (for Cooler Relay)
|
88569-22190 |
— | ||
|
8856924040
|
8856924040
88569-24040
Clamp (for Cooler Relay)
|
88569-24040 |
— | ||
|
8868824170
|
8868824170
88688-24170
Bracket, Cooler Diaphragm
|
88688-24170 |
— | ||
|
8868824330
|
8868824330
88688-24330
Bracket, Cooler Diaphragm
|
88688-24330 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.19 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.15 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $2.56 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
