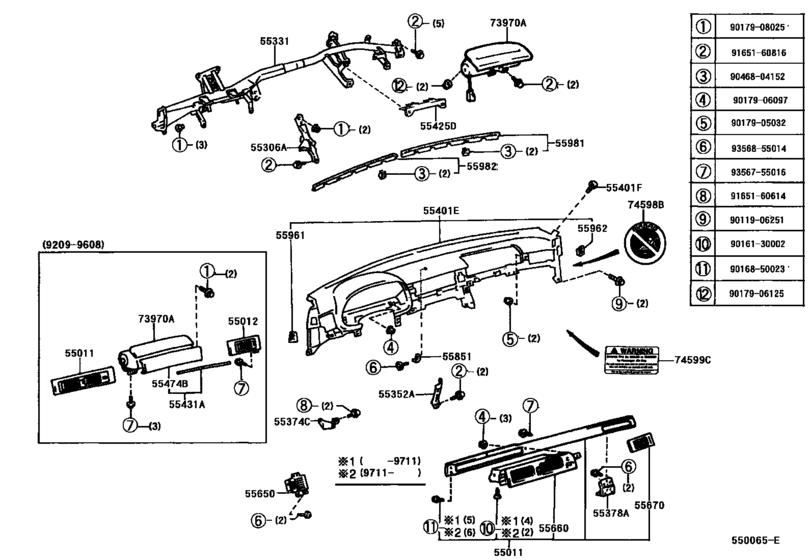

Instrument Panel & Glove Compartment ([09.1992 - ] (9209- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011
|
55011
55011-24050 Garnish Sub-Assy, Instrument Panel Safety PadINSTRUMENT PANEL SAFETY PAD [08.1996 -] JZZ31,UZZ30 |
55011-24050 |
US $1,071.62 |
||
|
55306A
|
55306A
55306-24041 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [04.1991 -] JZZ31,UZZ30 |
55306-24041 |
US $33.05 |
||
|
55331
|
55331
55330-24080 Reinforcement, Instrument PanelINSTRUMENT PANEL [08.1996 -] JZZ31,UZZ30 |
55330-24080 |
US $283.92 |
||
|
55352A
|
55352A
55352-24030 Brace, Instrument Panel To Floor, No.2INSTRUMENT PANEL TO FLOOR, NO.2 [09.1992 -] JZZ31,UZZ30 |
55352-24030 |
US $8.88 |
||
|
55374C
|
55374C
55374-24020 Bracket, Instrument Panel Lower Mounting, No.1INSTRUMENT PANEL LOWER MOUNTING, NO.1 [04.1991 -] JZZ31,UZZ30 |
55374-24020 |
US $8.30 |
||
|
55378A
|
55378A
55378-24070 Bracket, Glove Compartment Door Lock MountingGLOVE COMPARTMENT DOOR LOCK MOUNTING [08.1996 -] JZZ31,UZZ30 |
55378-24070 |
US $7.72 |
||
|
55401E
|
55401E
55401-24090-C0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55401-24090-C0 |
US $745.47 |
||
|
55401E
|
55401E
55401-24090-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55401-24090-E0 |
US $745.47 |
||
|
55401F
|
55401F
90467-06020-C0 Clip[04.1997 - 08.1998] UZZ30 BLACK,TRIM07,08,2#; JZZ31 BLACK,TRIM0#,07,08,2# |
90467-06020-C0 |
from US $1.37 |
||
|
55425D
|
55425D
55425-24020
Base, Air Bag Passenger Mounting
[08.1996 -] JZZ31,UZZ30 |
55425-24020 |
— | ||
|
55650
|
55650
55650-24040
Register Assy, Instrument Panel, No.1
[04.1991 -] JZZ31,UZZ30 |
55650-24040 |
— | ||
|
55660
|
55660
55660-24071
Register Assy, Instrument Panel, No.2
[08.1996 -] JZZ31,UZZ30 |
55660-24071 |
— | ||
|
55670
|
55670
55670-24040 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [10.1997 - 05.1998] JZZ31,UZZ30 |
55670-24040 |
US $90.27 |
||
|
55670
|
55670
55670-24041
Register Assy, Instrument Panel, No.3
[05.1998 -] JZZ31,UZZ30 |
55670-24041 |
— | ||
|
55851
|
55851
55851-24030 Retainer, Air Duct No.1[04.1991 -] JZZ31,UZZ30 |
55851-24030 |
US $5.10 |
||
|
55961
|
55961
55961-24030-C0 Nozzle, Side Defroster, No.1[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55961-24030-C0 |
US $10.19 |
||
|
55961
|
55961
55961-24030-E0 Nozzle, Side Defroster, No.1[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55961-24030-E0 |
US $10.19 |
||
| replacement | |||||
|
55961
|
55961
55961-24030-C0 Nozzle, Side Defroster, No.1[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55961-24030-C0 |
US $10.19 |
||
|
55962
|
55962
55962-24030-C0 Nozzle, Side Defroster, No.2[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55962-24030-C0 |
US $10.19 |
||
|
55962
|
55962
55962-24030-E0 Nozzle, Side Defroster, No.2[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55962-24030-E0 |
US $10.19 |
||
| replacement | |||||
|
55962
|
55962
55962-24030-C0 Nozzle, Side Defroster, No.2[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55962-24030-C0 |
US $10.19 |
||
|
55981
|
55981
55981-24050-C0
Garnish, Defroster Nozzle, No.1
[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55981-24050-C0 |
— | ||
|
55981
|
55981
55981-24050-E0 Garnish, Defroster Nozzle, No.1[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55981-24050-E0 |
US $31.89 |
||
| replacement | |||||
|
55981
|
55981
55981-24050-C0
Garnish, Defroster Nozzle, No.1
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55981-24050-C0 |
— | ||
|
55982
|
55982
55982-24050-C0
Garnish, Defroster Nozzle, No.2
[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55982-24050-C0 |
— | ||
|
55982
|
55982
55982-24050-E0 Garnish, Defroster Nozzle, No.2[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55982-24050-E0 |
US $31.89 |
||
| replacement | |||||
|
55982
|
55982
55982-24050-C0
Garnish, Defroster Nozzle, No.2
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55982-24050-C0 |
— | ||
|
73970A
|
73970A
73970-24031-C0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [09.1997 - 08.1998] JZZ31,UZZ30 BLACK,TRIM08,2# |
73970-24031-C0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-24031-E0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [09.1997 - 08.1998] JZZ31,UZZ30 OAK,TRIM07 |
73970-24031-E0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-24032-C0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [08.1998 -] JZZ31,UZZ30 BLACK,TRIM2# |
73970-24032-C0 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-24032-E0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [08.1998 -] JZZ31,UZZ30 OAK,TRIM0# |
73970-24032-E0 |
US $1,776.32 |
||
|
74599C
|
74599C
74599-50010 Label, Driver & Passenger Air Bag CautionDRIVER & PASSENGER AIR BAG INFORMATION [02.1997 -] JZZ31,UZZ30..USA |
74599-50010 |
US $4.95 |
||
| replacement | |||||
|
74599C
|
74599C
74599-48020 Label, Driver & Passenger Air Bag CautionDRIVER & PASSENGER AIR BAG CAUTION [02.1997 -] JZZ31,UZZ30..USA |
74599-48020 |
US $5.28 |
||
|
9011906251
|
9011906251
90119-06251 New Genuine Part |
90119-06251 |
US $2.56 |
||
|
9016130002
|
9016130002
90161-30002 Screw |
90161-30002 |
US $1.92 |
||
|
9016850023
|
9016850023
90168-50023 SCREW |
90168-50023 |
US $1.76 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
US $1.92 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
