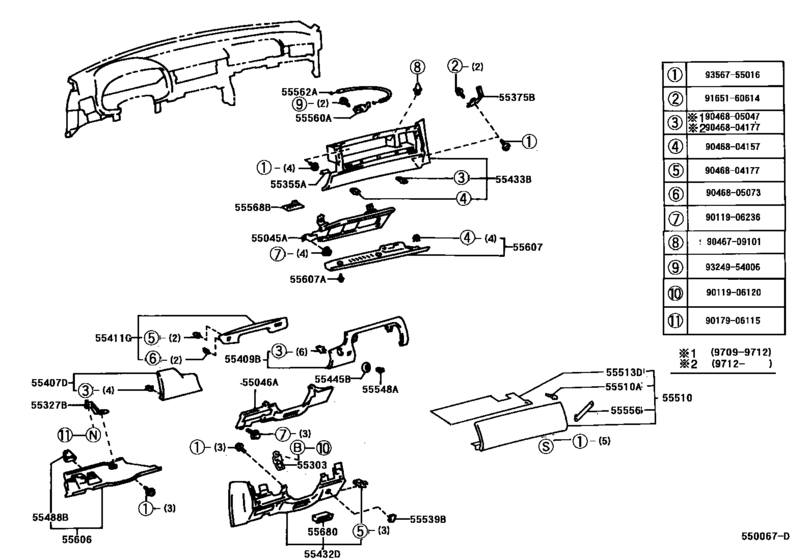

Instrument Panel & Glove Compartment ([09.1992 - ] (9209- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55045A
|
55045A
55045-24010 Panel Sub-Assy, Instrument Panel Finish, Lower RhINSTRUMENT PANEL FINISH, LOWER RH [09.1992 -] JZZ31,UZZ30 |
55045-24010 |
US $208.21 |
||
|
55046A
|
55046A
55046-24010 Panel Sub-Assy, Instrument Panel Finish, Lower LhINSTRUMENT PANEL FINISH, LOWER LH [04.1991 -] JZZ31,UZZ30 |
55046-24010 |
US $54.89 |
||
|
55303
|
55303
55303-24010 Stay Sub-Assy, Instrument Panel, RhINSTRUMENT PANEL, RH [09.1997 -] UZZ30 |
55303-24010 |
US $9.90 |
||
|
55327B
|
55327B
55327-24020 Stay, Instrument Panel, LhINSTRUMENT PANEL, LH [08.1995 -] JZZ31,UZZ30 |
55327-24020 |
US $6.26 |
||
|
55355A
|
55355A
55355-24030 Plate, Instrument Panel[04.1996 -] JZZ31,UZZ30 |
55355-24030 |
US $1.89 |
||
|
55375B
|
55375B
55032-24030 Bracket, Instrument Panel Lower Mounting, No.2INSTRUMENT PANEL LOWER MOUNTING, NO.2 [09.1992 -] JZZ31,UZZ30 |
55032-24030 |
US $6.70 |
||
|
55407D
|
55407D
55407-24040-A0 Pad Sub-Assy, Instrument Panel, End[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55407-24040-A0 |
US $71.64 |
||
|
55407D
|
55407D
55407-24040-C0 Pad Sub-Assy, Instrument Panel, End[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55407-24040-C0 |
US $71.64 |
||
|
55409B
|
55409B
55409-24030-A0
Pad Sub-Assy, Instrument Panel, Lower Center
[09.1997 - 08.1998] JZZ31 IVORY,TRIM0#,07,08; UZZ30 IVORY,TRIM07,08 |
55409-24030-A0 |
— | ||
|
55409B
|
55409B
55409-24030-C0 Pad Sub-Assy, Instrument Panel, Lower CenterINSTRUMENT PANEL, LOWER CENTER [09.1997 -] JZZ31,UZZ30 BLACK,TRIM2# |
55409-24030-C0 |
US $110.66 |
||
|
55411G
|
55411G
55411-24080 Panel, Instrument Cluster Finish, No.1INSTRUMENT CLUSTER FINISH, NO.1 [04.1991 -] JZZ31,UZZ30 |
55411-24080 |
US $34.94 |
||
|
55432D
|
55432D
55432-24020-A2 Panel, Instrument Panel Finish, Lower No.1[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55432-24020-A2 |
US $147.06 |
||
|
55432D
|
55432D
55432-24020-C0 Panel, Instrument Panel Finish, Lower No.1[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55432-24020-C0 |
US $147.06 |
||
|
55433B
|
55433B
55433-24060-A0 Panel, Instrument Panel Finish, Lower No.2[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55433-24060-A0 |
US $247.52 |
||
|
55433B
|
55433B
55433-24060-C0 Panel, Instrument Panel Finish, Lower No.2[08.1996 -] JZZ31,UZZ30 BLACK,TRIM2# |
55433-24060-C0 |
US $247.52 |
||
|
55445B
|
55445B
55445-24050-A0 Plate, Instrument Panel FinishINSTRUMENT PANEL FINISH [09.1997 - 08.1998] JZZ31 IVORY,TRIM0#,07,08; UZZ30 IVORY,TRIM07,08 |
55445-24050-A0 |
US $3.93 |
||
| replacement | |||||
|
55445B
|
55445B
55445-24050-C0 Plate, Instrument Panel FinishINSTRUMENT PANEL FINISH [09.1997 - 08.1998] JZZ31 IVORY,TRIM0#,07,08; UZZ30 IVORY,TRIM07,08 |
55445-24050-C0 |
US $3.93 |
||
|
55445B
|
55445B
55445-24050-C0 Plate, Instrument Panel FinishINSTRUMENT PANEL FINISH [09.1997 -] JZZ31,UZZ30 BLACK,TRIM2# |
55445-24050-C0 |
US $3.93 |
||
|
55488B
|
55488B
55488-50010 Lens, Front Foot Lamp, No.1[04.1991 -] JZZ31,UZZ30 |
55488-50010 |
US $9.90 |
||
|
55510
|
55510
55550-24060-A0 Door Assy, Glove Compartment[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55550-24060-A0 |
US $247.52 |
||
|
55510
|
55510
55550-24060-C0 Door Assy, Glove Compartment[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55550-24060-C0 |
US $247.52 |
||
|
55510A
|
55510A
90541-05020 Cushion(For Glove Compartment)[04.1991 -] JZZ31,UZZ30 |
90541-05020 |
from US $0.87 |
||
|
55513D
|
55513D
55513-24030
Plate, Glove Compartment, No.2
[09.1992 -] JZZ31,UZZ30 |
55513-24030 |
— | ||
|
55539B
|
55539B
55539-20080-A2 Cover, Spare Switch Hole[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55539-20080-A2 |
US $5.82 |
||
| replacement | |||||
|
55539B
|
55539B
55539-32010-C0 Cover, Cooler Switch Hole (BLACK)[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55539-32010-C0 |
from US $3.10 |
||
|
55539B
|
55539B
55539-20080-C0
Cover, Spare Switch Hole
[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55539-20080-C0 |
— | ||
| replacement | |||||
|
55539B
|
55539B
55539-12130-C0
Cover, Spare Switch Hole
[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55539-12130-C0 |
— | ||
|
55548A
|
55548A
55548-24030-A2 Cover, Instrument Panel Hole[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55548-24030-A2 |
US $4.37 |
||
| replacement | |||||
|
55548A
|
55548A
55548-24030-C0 Cover, Instrument Panel Hole[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55548-24030-C0 |
US $4.37 |
||
|
55548A
|
55548A
55548-24030-C0 Cover, Instrument Panel Hole[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55548-24030-C0 |
US $4.37 |
||
|
55556
|
55556
55556-50010 Arm, Glove Compartment Door Check[04.1991 -] JZZ31,UZZ30 |
55556-50010 |
US $10.19 |
||
| replacement | |||||
|
55556
|
55556
55556-50070 Arm, Glove Compartment Door Check[04.1991 -] JZZ31,UZZ30 |
55556-50070 |
US $5.24 |
||
|
55560A
|
55560A
55560-24020 Lock Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [08.1996 -] JZZ31,UZZ30 |
55560-24020 |
US $43.53 |
||
|
55562A
|
55562A
55562-24010 Link, Glove Compartment Door Lock[08.1996 -] JZZ31,UZZ30 |
55562-24010 |
US $9.03 |
||
|
55568B
|
55568B
55568-24020 Plate, Glove Compartment Door Pad[01.1993 -] JZZ31,UZZ30 |
55568-24020 |
US $12 |
||
|
55606
|
55606
55606-24051 Cover Sub-Assy, Instrument Panel Under, No.1[08.1995 -] JZZ31,UZZ30 |
55606-24051 |
US $104.83 |
||
|
55607
|
55607
55607-24060-A2 Cover Sub-Assy, Instrument Panel Under, No.2[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55607-24060-A2 |
US $113.57 |
||
|
55607
|
55607
55607-24060-C0 Cover Sub-Assy, Instrument Panel Under, No.2[01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55607-24060-C0 |
US $113.57 |
||
|
55607A
|
55607A
90467-08154-22 Clip(For Front Fender Apron Seal)[08.1996 - 08.1998] UZZ30 BLACK,TRIM07,08,2#; JZZ31 BLACK,TRIM0#,07,08,2# |
90467-08154-22 |
US $1.44 |
||
|
55680
|
55680
55680-22020-A2 Register Assy, Instrument Panel, Lower No.1[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55680-22020-A2 |
US $26.50 |
||
| replacement | |||||
|
55680
|
55680
55680-22020-A1 Register Assy, Instrument Panel, Lower No.1[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
55680-22020-A1 |
US $26.64 |
||
|
55680
|
55680
55680-50010-C0
Register Assy, Instrument Panel, Lower No.1
[10.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
55680-50010-C0 |
— | ||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9011906236
|
9011906236
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9046709101
|
9046709101
90467-09101 CLIP |
90467-09101 |
from US $1.28 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.90 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9046805073
|
9046805073
90468-05073 New Genuine Part |
90468-05073 |
US $0.87 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.76 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
