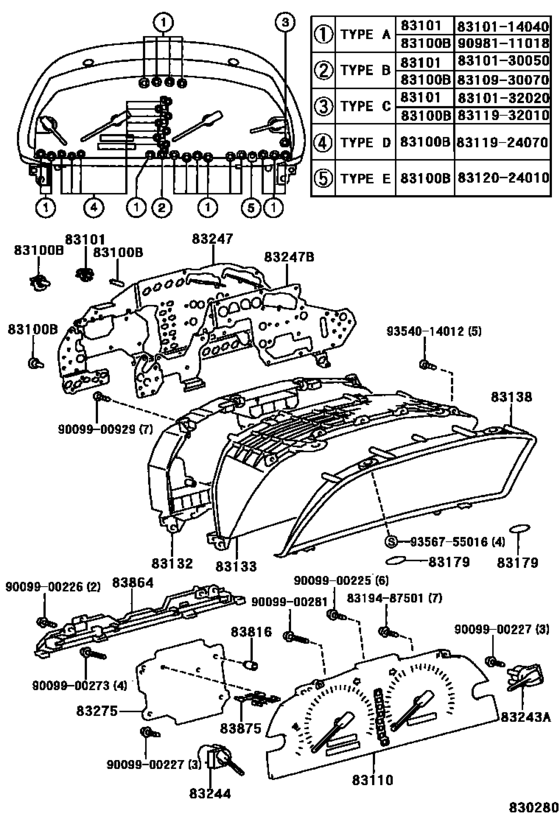

Meter ([09.1997 - ] (9709- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[09.1997 -] UZZ30 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-24070 Bulb, Combination Meter, No.1[09.1997 -] UZZ30 12V 1.4W W(SOCKET) |
83119-24070 |
US $13.12 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[09.1997 -] UZZ30 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[08.1997 -] JZZ31,UZZ30..ATM..USA 13.5V,W(SOCKET) |
83120-24010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1997 -] UZZ30 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1996 -] JZZ31,UZZ30..ATM TYPE A:REFER TO ILLUSTRATION |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[08.1996 -] JZZ31,UZZ30 TYPE B:REFER TO ILLUSTRATION |
83101-30050 |
— | ||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[04.1991 -] JZZ31,UZZ30 TYPE C:REFER TO ILLUSTRATION |
83101-32020 |
US $6.12 |
||
|
83110
|
83110
83220-24011
Speedometer Assy
[08.1997 -] UZZ30..USA |
83220-24011 |
— | ||
|
83132
|
83132
83841-24011
Case, Combination Meter
[08.1997 -] JZZ31,UZZ30..ATM..USA |
83841-24011 |
— | ||
|
83133
|
83133
83133-24550
Plate, Combination Meter, No.1
[04.1991 -] JZZ31,UZZ30 |
83133-24550 |
— | ||
|
83138
|
83138
83138-24190
Glass, Speedometer
[04.1991 -] JZZ31,UZZ30 |
83138-24190 |
— | ||
|
83179
|
83179
83179-24010
Cover, Combination Meter, Hole
[04.1991 -] JZZ31,UZZ30 |
83179-24010 |
— | ||
|
83243A
|
83243A
83882-24010 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1996 -] JZZ31,UZZ30 |
83882-24010 |
US $77.17 |
||
|
83244
|
83244
83883-24010 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1996 -] JZZ31,UZZ30 |
83883-24010 |
US $70.76 |
||
|
83247
|
83247
83861-24011
Plate, Meter Circuit
[08.1997 -] UZZ30..USA |
83861-24011 |
— | ||
|
83247B
|
83247B
83862-24010
Plate, Meter Circuit, No.2
[08.1996 -] JZZ31,UZZ30 |
83862-24010 |
— | ||
|
83275
|
83275
83275-24010 Plate,computer Meter Circuit No.1COMPUTER METER CIRCUIT NO.1 [09.1997 -] UZZ30 |
83275-24010 |
US $848.85 |
||
|
83816
|
83816
83816-24010
Plate, Combination Meter, No.6
[09.1997 -] UZZ30 |
83816-24010 |
— | ||
|
83864
|
83864
83864-24010
Plate, Meter Circuit, No.4 (For Computer)
[09.1997 -] UZZ30 |
83864-24010 |
— | ||
|
83875
|
83875
83875-24010
Wire, Combination Meter, No.1
[09.1997 -] UZZ30 |
83875-24010 |
— | ||
|
8319487501
|
8319487501
83194-87501
SCREWWWASHER
|
83194-87501 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900226
|
9009900226
90099-00226
New Genuine Part
|
90099-00226 |
— | ||
|
9009900227
|
9009900227
90099-00227
New Genuine Part
|
90099-00227 |
— | ||
|
9009900273
|
9009900273
90099-00273 New Genuine Part |
90099-00273 |
US $1.31 |
||
|
9009900281
|
9009900281
90099-00281 New Genuine Part |
90099-00281 |
US $1.46 |
||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
