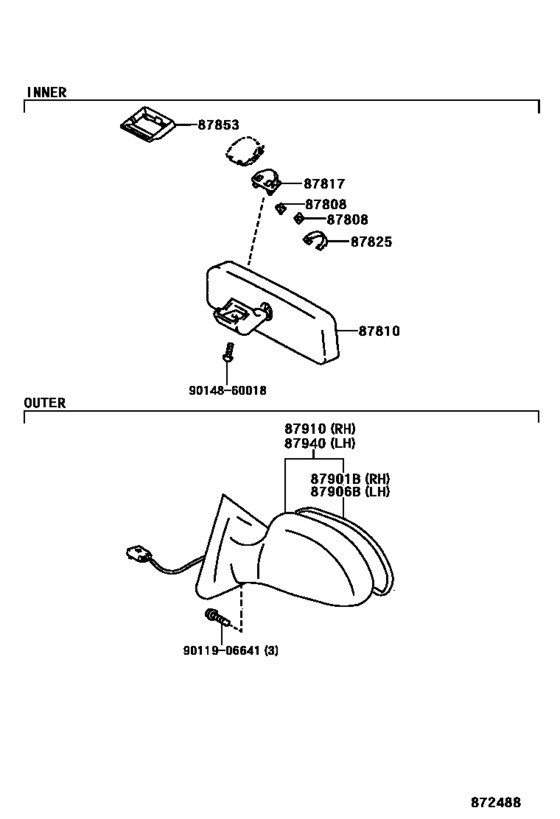

Mirror ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87808
|
87808
87808-24010 Holder Sub-Assy, Inner Mirror[04.1991 -] JZZ31,UZZ30 |
87808-24010 |
from US $2.09 |
||
|
87810
|
87810
87810-24100-C0 Mirror Assy, Inner Rear View[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
87810-24100-C0 |
US $834.29 |
||
|
87810
|
87810
87810-24100-E0 Mirror Assy, Inner Rear View[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
87810-24100-E0 |
US $834.29 |
||
|
87817
|
87817
87817-24010 Spacer, Inner Rear View Mirror[04.1991 -] JZZ31,UZZ30 |
87817-24010 |
US $7.16 |
||
|
87825
|
87825
87825-24010 Spring, Inner Rear View Mirror Setting[04.1991 -] JZZ31,UZZ30 |
87825-24010 |
US $6.46 |
||
|
87853
|
87853
87853-24020
Base, Inner Rear View Mirror
[08.1996 -] JZZ31..4FC;UZZ30..5FC |
87853-24020 |
— | ||
| replacement | |||||
|
87853
|
87853
87853-24020-C0 Base, Inner Rear View Mirror[08.1996 -] JZZ31..4FC;UZZ30..5FC |
87853-24020-C0 |
US $4.89 |
||
|
87901B
|
87901B
87931-24150 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [09.1997 -] UZZ30 |
87931-24150 |
US $288.29 |
||
|
87906B
|
87906B
87906-24050
Mirror Sub-Assy, Outer Rear View, Lh
[09.1997 - 01.2000] UZZ30 |
87906-24050 |
— | ||
| replacement | |||||
|
87906B
|
87906B
87906-24070
Mirror Sub-Assy, Outer Rear View, Lh
[09.1997 - 01.2000] UZZ30 |
87906-24070 |
— | ||
|
87910
|
87910
87910-24150-A0
Mirror Assy, Outer Rear View, Rh
[08.1995 - 08.1998] UZZ30 SU.WHITE PM,051; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SU.WHITE PM,051 |
87910-24150-A0 |
— | ||
|
87910
|
87910
87910-24150-A1
Mirror Assy, Outer Rear View, Rh
[08.1998 -] UZZ30 WHITE PM.,057; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,WHITE PM.,057 |
87910-24150-A1 |
— | ||
|
87910
|
87910
87910-24150-B0
Mirror Assy, Outer Rear View, Rh
[08.1995 - 08.1998] UZZ30 BLUISH SILVER ME.,1A0; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLUISH SILVER ME.,1A0 |
87910-24150-B0 |
— | ||
|
87910
|
87910
87910-24150-B1
Mirror Assy, Outer Rear View, Rh
[08.1998 -] UZZ30 SILVER ME.,1C0; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1C0 |
87910-24150-B1 |
— | ||
|
87910
|
87910
87910-24150-C0 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1995 -] UZZ30 BLACK,202; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202 |
87910-24150-C0 |
US $995.90 |
||
|
87910
|
87910
87910-24150-D0
Mirror Assy, Outer Rear View, Rh
[08.1995 -] UZZ30 SUPER RED 4,3L2; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 4,3L2 |
87910-24150-D0 |
— | ||
|
87910
|
87910
87910-24150-D2
Mirror Assy, Outer Rear View, Rh
[08.1996 - 08.1998] UZZ30 LT.GRAISH ROSE OP,3K7; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,LT.GRAISH ROSE OP,3K7 |
87910-24150-D2 |
— | ||
|
87910
|
87910
87910-24150-D3
Mirror Assy, Outer Rear View, Rh
[09.1997 - 08.1999] UZZ30 ROSE RED MC.,3M9; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,ROSE RED MC.,3M9 |
87910-24150-D3 |
— | ||
|
87910
|
87910
87910-24150-D4
Mirror Assy, Outer Rear View, Rh
[08.1999 -] UZZ30 RED MC.,3N1; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,RED MC.,3N1 |
87910-24150-D4 |
— | ||
|
87910
|
87910
87910-24150-E1
Mirror Assy, Outer Rear View, Rh
[08.1998 -] UZZ30 GRAYISH BROWN ME,4P9; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,GRAYISH BROWN ME,4P9 |
87910-24150-E1 |
— | ||
|
87910
|
87910
87910-24150-G2
Mirror Assy, Outer Rear View, Rh
[09.1997 -] UZZ30 DK. GREEN MC.,6Q7; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,DK. GREEN MC.,6Q7 |
87910-24150-G2 |
— | ||
|
87910
|
87910
87910-24150-J1
Mirror Assy, Outer Rear View, Rh
[08.1996 - 08.1998] UZZ30 BLUE M.M.,8L5; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLUE M.M.,8L5 |
87910-24150-J1 |
— | ||
|
87940
|
87940
87940-24150-A0
Mirror Assy, Outer Rear View, Lh
[08.1995 - 08.1998] UZZ30 SU.WHITE PM,051; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SU.WHITE PM,051 |
87940-24150-A0 |
— | ||
|
87940
|
87940
87940-24150-A1
Mirror Assy, Outer Rear View, Lh
[08.1998 -] UZZ30 WHITE PM.,057; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,WHITE PM.,057 |
87940-24150-A1 |
— | ||
|
87940
|
87940
87940-24150-B0
Mirror Assy, Outer Rear View, Lh
[08.1995 - 08.1998] UZZ30 BLUISH SILVER ME.,1A0; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLUISH SILVER ME.,1A0 |
87940-24150-B0 |
— | ||
|
87940
|
87940
87940-24150-B1
Mirror Assy, Outer Rear View, Lh
[08.1998 -] UZZ30 SILVER ME.,1C0; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SILVER ME.,1C0 |
87940-24150-B1 |
— | ||
|
87940
|
87940
87940-24150-C0
Mirror Assy, Outer Rear View, Lh
[08.1995 -] UZZ30 BLACK,202; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202 |
87940-24150-C0 |
— | ||
|
87940
|
87940
87940-24150-D0
Mirror Assy, Outer Rear View, Lh
[08.1995 -] UZZ30 SUPER RED 4,3L2; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,SUPER RED 4,3L2 |
87940-24150-D0 |
— | ||
|
87940
|
87940
87940-24150-D2
Mirror Assy, Outer Rear View, Lh
[08.1996 - 08.1998] UZZ30 LT.GRAISH ROSE OP,3K7; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,LT.GRAISH ROSE OP,3K7 |
87940-24150-D2 |
— | ||
|
87940
|
87940
87940-24150-D3
Mirror Assy, Outer Rear View, Lh
[09.1997 - 08.1999] UZZ30 ROSE RED MC.,3M9; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,ROSE RED MC.,3M9 |
87940-24150-D3 |
— | ||
|
87940
|
87940
87940-24150-D4
Mirror Assy, Outer Rear View, Lh
[08.1999 -] UZZ30 RED MC.,3N1; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,RED MC.,3N1 |
87940-24150-D4 |
— | ||
|
87940
|
87940
87940-24150-E1
Mirror Assy, Outer Rear View, Lh
[08.1998 -] UZZ30 GRAYISH BROWN ME,4P9; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,GRAYISH BROWN ME,4P9 |
87940-24150-E1 |
— | ||
|
87940
|
87940
87940-24150-G2
Mirror Assy, Outer Rear View, Lh
[09.1997 -] UZZ30 DK. GREEN MC.,6Q7; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,DK. GREEN MC.,6Q7 |
87940-24150-G2 |
— | ||
|
87940
|
87940
87940-24150-J1
Mirror Assy, Outer Rear View, Lh
[08.1996 - 08.1998] UZZ30 BLUE M.M.,8L5; JZZ31 ELECTRIC REMOTE CONTROL W/HEATER,BLUE M.M.,8L5 |
87940-24150-J1 |
— | ||
|
9011906641
|
9011906641
90119-06641
New Genuine Part
|
90119-06641 |
— | ||
|
9014860018
|
9014860018
90148-60018 Screw Hex Lobular |
90148-60018 |
US $1.22 |
||
