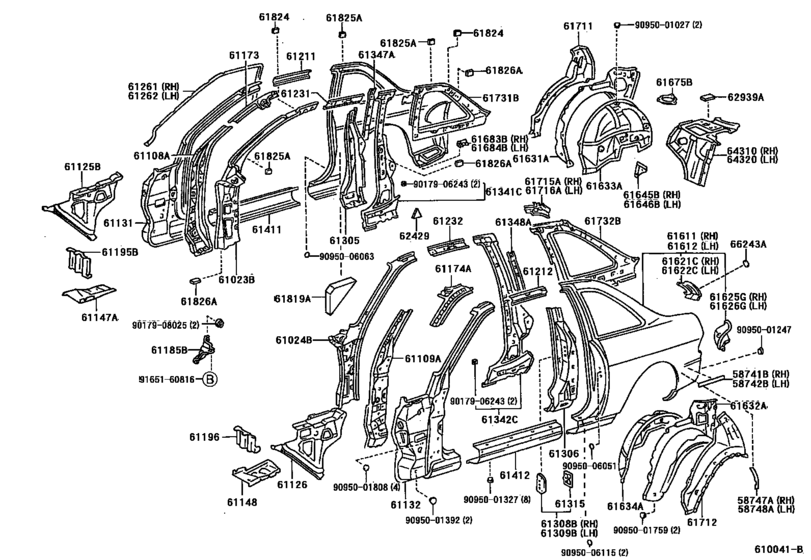

Side Member ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-24900 Pillar Sub-Assy, Front Body, Inner Rh[08.1991 -] JZZ31,UZZ30 |
61023-24900 |
US $292.66 |
||
|
61023B
|
61023B
61023-24901 Pillar Sub-Assy, Front Body, Inner Rh[08.1991 -] JZZ31,UZZ30 W(MOON ROOF) |
61023-24901 |
US $292.66 |
||
|
61024B
|
61024B
61024-24900 Pillar Sub-Assy, Front Body, Inner Lh[08.1991 -] JZZ31,UZZ30 |
61024-24900 |
US $292.66 |
||
|
61024B
|
61024B
61024-24901 Pillar Sub-Assy, Front Body, Inner Lh[08.1991 -] JZZ31,UZZ30 W(MOON ROOF) |
61024-24901 |
US $292.66 |
||
|
61108A
|
61108A
61108-24040 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[01.1994 -] JZZ31,UZZ30 |
61108-24040 |
US $182 |
||
|
61109A
|
61109A
61109-24040 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[01.1994 -] JZZ31,UZZ30 |
61109-24040 |
US $182 |
||
|
61125B
|
61125B
61125-24900 Panel, Cowl Side, Front Rh[04.1991 -] JZZ31,UZZ30 |
61125-24900 |
US $68 |
||
|
61126
|
61126
61126-24900 Panel, Cowl Side, Front Lh[04.1991 -] JZZ31,UZZ30 |
61126-24900 |
US $68 |
||
|
61131
|
61131
61131-24041 Pillar, Front Body, Upper Outer Rh[08.1996 -] JZZ31,UZZ30 |
61131-24041 |
US $272.27 |
||
|
61132
|
61132
61132-24041 Pillar, Front Body, Upper Outer Lh[08.1996 -] JZZ31,UZZ30 |
61132-24041 |
US $272.27 |
||
|
61147A
|
61147A
61147-24020 Extension, Front Body Pillar, Upper Outer[04.1991 -] JZZ31,UZZ30 |
61147-24020 |
US $31.01 |
||
|
61148
|
61148
61148-24020 Extension, Front Body Pillar, Outer Lh[04.1991 -] JZZ31,UZZ30 |
61148-24020 |
US $31.01 |
||
|
61173
|
61173
61173-24030 Reinforcement, Front Body Pillar, Upper Inner[04.1991 -] JZZ31,UZZ30 |
61173-24030 |
US $65.67 |
||
|
61174A
|
61174A
61174-24030 Reinforcement, Front Body Pillar, Upper Inner Lh[04.1991 -] JZZ31,UZZ30 |
61174-24030 |
US $65.67 |
||
|
61185B
|
61185B
61185-24011 Bracket, Instrument Panel Side, No.3 Rh[01.1994 -] JZZ31,UZZ30 |
61185-24011 |
US $30.43 |
||
|
61195B
|
61195B
61195-24020 Plate, Side Panel Water Guard, Rh[04.1991 -] JZZ31,UZZ30 |
61195-24020 |
US $9.90 |
||
|
61196
|
61196
61196-24010 Plate, Side Panel Water Guard, Lh[04.1991 -] JZZ31,UZZ30 |
61196-24010 |
US $9.90 |
||
|
61211
|
61211
61211-24030 Rail, Roof Side, Outer Rh[04.1991 -] JZZ31,UZZ30 |
61211-24030 |
US $35.67 |
||
|
61212
|
61212
61212-24030 Rail, Roof Side, Outer Lh[04.1991 -] JZZ31,UZZ30 |
61212-24030 |
US $35.67 |
||
|
61231
|
61231
61231-24030 Rail, Roof Side, Inner Rh[04.1991 -] JZZ31,UZZ30 |
61231-24030 |
US $36.69 |
||
|
61232
|
61232
61232-24030 Rail, Roof Side, Inner Lh[04.1991 -] JZZ31,UZZ30 |
61232-24030 |
US $36.69 |
||
|
61261
|
61261
61261-24010
Channel, Roof Drip, Rh
[04.1991 -] JZZ31,UZZ30 |
61261-24010 |
— | ||
|
61262
|
61262
61262-24010
Channel, Roof Drip, Lh
[04.1991 -] JZZ31,UZZ30 |
61262-24010 |
— | ||
|
61305
|
61305
61305-24020 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[01.1994 -] JZZ31,UZZ30 |
61305-24020 |
US $125.22 |
||
|
61306
|
61306
61306-24020 Reinforce Sub-Assy, Center Body Pillar, Lower Lh[01.1994 -] JZZ31,UZZ30 |
61306-24020 |
US $125.22 |
||
|
61308B
|
61308B
61309-24010 Retainer Sub-Assy, Door Lock Striker, Rh[04.1991 -] JZZ31,UZZ30 |
61309-24010 |
US $12.52 |
||
|
61309B
|
61309B
61309-24010 Retainer Sub-Assy, Door Lock Striker, Rh[04.1991 -] JZZ31,UZZ30 |
61309-24010 |
US $12.52 |
||
|
61315
|
61315
61315-22020 Retainer, Door Lock Striker Plate[04.1991 -] JZZ31,UZZ30 |
61315-22020 |
US $18.64 |
||
|
61341C
|
61341C
61341-24011 Pillar, Center Body, Inner Upper Rh[01.1994 -] JZZ31,UZZ30 |
61341-24011 |
US $477.57 |
||
|
61342C
|
61342C
61342-24011 Pillar, Center Body, Inner Upper Lh[01.1994 -] JZZ31,UZZ30 |
61342-24011 |
US $477.57 |
||
|
61347A
|
61347A
61347-24040 Reinforcement, Belt Anchor To Center Pillar, Rh[01.1994 -] JZZ31,UZZ30 |
61347-24040 |
US $43.53 |
||
|
61348A
|
61348A
61348-24040 Reinforcement, Belt Anchor To Center Pillar, Lh[01.1994 -] JZZ31,UZZ30 |
61348-24040 |
US $43.53 |
||
|
61411
|
61411
61411-24041
Panel, Rocker, Outer Rh
[08.1996 -] JZZ31,UZZ30 |
61411-24041 |
— | ||
|
61412
|
61412
61412-24041
Panel, Rocker, Outer Lh
[08.1996 -] JZZ31,UZZ30 |
61412-24041 |
— | ||
|
61611
|
61611
61611-24122 Panel, Quarter, Rh[08.1996 - 08.1999] JZZ31,UZZ30 |
61611-24122 |
US $876.51 |
||
|
61611
|
61611
61611-24140 Panel, Quarter, RhQUARTER, RH [08.1999 -] JZZ31,UZZ30 |
61611-24140 |
US $876.51 |
||
|
61612
|
61612
61612-24131 Panel, Quarter, LhQUARTER, LH [08.1996 -] JZZ31,UZZ30 |
61612-24131 |
US $876.51 |
||
|
61621C
|
61621C
61621-24030 Trough, Luggage Compartment Opening, Rh[04.1991 -] JZZ31,UZZ30 |
61621-24030 |
US $30.43 |
||
|
61622C
|
61622C
61622-24030 Trough, Luggage Compartment Opening, Lh[04.1991 -] JZZ31,UZZ30 |
61622-24030 |
US $30.43 |
||
|
61625G
|
61625G
61625-24900 Extension, Quarter Panel, Rear Rh[04.1991 -] JZZ31,UZZ30 |
61625-24900 |
US $35.53 |
||
|
61626G
|
61626G
61626-24900 Extension, Quarter Panel, Rear Lh[04.1991 -] JZZ31,UZZ30 |
61626-24900 |
US $35.53 |
||
|
61631A
|
61631A
61631-24030 Panel, Quarter Wheel House, Outer Rh[04.1991 -] JZZ31,UZZ30 |
61631-24030 |
US $214.03 |
||
|
61632A
|
61632A
61632-24030 Panel, Quarter Wheel House, Outer Lh[04.1991 -] JZZ31,UZZ30 |
61632-24030 |
US $214.03 |
||
|
61633A
|
61633A
61633-24902 Panel, Quarter Wheel House, Inner Rh[08.1996 -] JZZ31,UZZ30 |
61633-24902 |
US $394.58 |
||
| replacements | |||||
|
61633A
|
61633A
61633-24903 Panel, Quarter Wheel House, Inner Rh[08.1996 -] JZZ31,UZZ30 |
61633-24903 |
US $394.58 |
||
|
61633A
|
61633A
90950-01872 Plug, Hole, No.3(For Dash Panel)[08.1996 -] JZZ31,UZZ30 |
90950-01872 |
from US $2.29 |
||
|
61634A
|
61634A
61634-24902 Panel, Quarter Wheel House, Inner Lh[08.1996 -] JZZ31,UZZ30 |
61634-24902 |
US $394.58 |
||
| replacements | |||||
|
61634A
|
61634A
61634-24903 Panel, Quarter Wheel House, Inner Lh[08.1996 -] JZZ31,UZZ30 |
61634-24903 |
US $394.58 |
||
|
61634A
|
61634A
90950-01872 Plug, Hole, No.3(For Dash Panel)[08.1996 -] JZZ31,UZZ30 |
90950-01872 |
from US $2.29 |
||
|
61645B
|
61645B
61645-24020 Gusset, Quarter Wheel House, Rear Rh[04.1991 -] JZZ31,UZZ30 |
61645-24020 |
US $12.38 |
||
|
61646B
|
61646B
61646-24030 Gusset, Quarter Wheel House, Rear Lh[04.1991 -] JZZ31,UZZ30 |
61646-24030 |
US $12.38 |
||
|
61675B
|
61675B
61675-24010 Reinforcement, Rear Suspension Spring Support[08.1996 -] JZZ31,UZZ30 |
61675-24010 |
US $13.69 |
||
|
61683B
|
61683B
61683-24010 Bracket, Rear Wheel Opening, No.1 Rh[04.1991 -] JZZ31,UZZ30 |
61683-24010 |
US $5.10 |
||
|
61684B
|
61684B
61684-24010 Bracket, Rear Wheel Opening, No.1 Lh[04.1991 -] JZZ31,UZZ30 |
61684-24010 |
US $5.10 |
||
|
61711
|
61711
61711-24030 Panel, Roof Side, Outer Rh[04.1991 -] JZZ31,UZZ30 |
61711-24030 |
US $170.35 |
||
|
61712
|
61712
61712-24030 Panel, Roof Side, Outer Lh[04.1991 -] JZZ31,UZZ30 |
61712-24030 |
US $170.35 |
||
|
61715A
|
61715A
61715-24010 Extension, Roof Side, Inner Upper Rh[04.1991 -] JZZ31,UZZ30 |
61715-24010 |
US $30.87 |
||
|
61716A
|
61716A
61716-24010 Extension, Roof Side, Inner Upper Lh[04.1991 -] JZZ31,UZZ30 |
61716-24010 |
US $30.87 |
||
|
61731B
|
61731B
61731-24030 Panel, Roof Side, Inner Rh[04.1991 -] JZZ31,UZZ30 |
61731-24030 |
US $170.35 |
||
|
61732B
|
61732B
61732-24030 Panel, Roof Side, Inner Lh[04.1991 -] JZZ31,UZZ30 |
61732-24030 |
US $170.35 |
||
|
61819A
|
61819A
61819-24010 Seal, Roof Side Inner Lower Cover[01.1994 -] JZZ31,UZZ30 |
61819-24010 |
US $28.10 |
||
|
61824
|
61824
61824-22030 Plate, Noise Control, No.1[04.1991 -] JZZ31,UZZ30 |
61824-22030 |
US $9.17 |
||
|
61825A
|
61825A
61825-22020 Plate, Noise Control, No.1[09.1997 -] UZZ30 W(MOON ROOF) |
61825-22020 |
US $3.84 |
||
|
61826A
|
61826A
61826-22010 Plate, Noise Control, No.2[04.1991 -] JZZ31,UZZ30 |
61826-22010 |
US $6.70 |
||
|
62429
|
62429
62429-24010 Cover, Center Pillar Service Hole[04.1991 -] JZZ31,UZZ30 |
62429-24010 |
US $5.68 |
||
|
62939A
|
62939A
62939-32020 Pad, Cowl Side Silencer[08.1996 -] JZZ31,UZZ30 |
62939-32020 |
US $6.70 |
||
|
64310
|
64310
64301-24010 Bracket, Package Tray Trim, Rh[04.1991 - 08.1999] JZZ31,UZZ30 |
64301-24010 |
US $136.86 |
||
| replacement | |||||
|
64310
|
64310
64301-24011 Bracket, Package Tray Trim, Rh[04.1991 - 08.1999] JZZ31,UZZ30 |
64301-24011 |
US $136.86 |
||
|
64310
|
64310
64301-24011 Bracket, Package Tray Trim, Rh[08.1999 -] JZZ31,UZZ30 |
64301-24011 |
US $136.86 |
||
|
64320
|
64320
64302-24010 Bracket, Package Tray Trim, Lh[04.1991 -] JZZ31,UZZ30 |
64302-24010 |
US $136.86 |
||
|
66243A
|
66243A
90950-06063 Protector, Rear Body, No.1[10.1991 -] JZZ31,UZZ30 |
90950-06063 |
from US $1.92 |
||
|
9017906243
|
9017906243
90179-06243 New Genuine Part |
90179-06243 |
US $1.60 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $1.31 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
from US $1.76 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.08 |
||
|
9095006063
|
9095006063
90950-06063 Protector, Rear Body, No.1 |
90950-06063 |
from US $1.92 |
||
|
9095006115
|
9095006115
90950-06115 COVER HOLE |
90950-06115 |
from US $0.55 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
