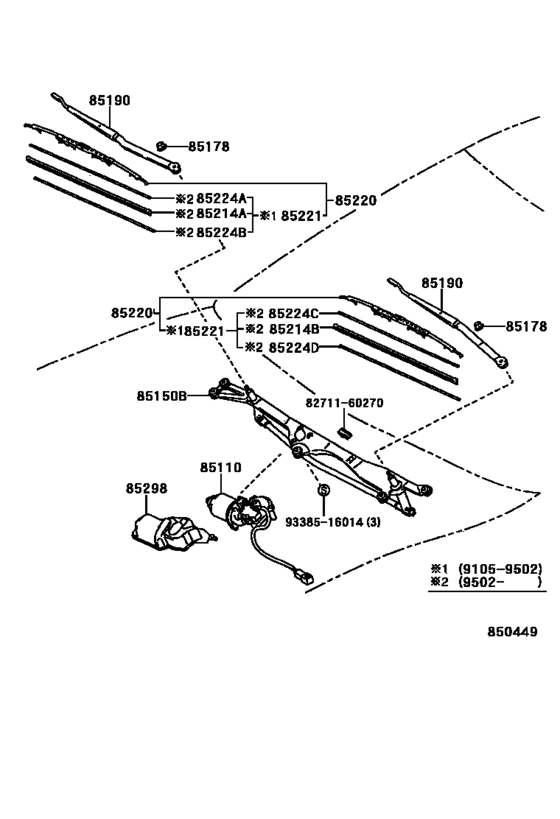

Windshield Wiper ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-24100 Motor Assy, Windshield Wiper[01.1994 -] JZZ31,UZZ30 |
85110-24100 |
US $423.70 |
||
|
85150B
|
85150B
85150-24060 Link Assy, WiperWIPER [04.1991 -] JZZ31,UZZ30 |
85150-24060 |
US $198.02 |
||
|
85178
|
85178
90176-08040
Nut (For Front Wiper Arm Setting)
[04.1991 -] JZZ31,UZZ30 |
90176-08040 |
— | ||
| replacement | |||||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[04.1991 -] JZZ31,UZZ30 |
90176-08051 |
US $2.08 |
||
|
85190
|
85190
85211-24080 Arm Assy, Windshield WiperWINDSHIELD WIPER [04.1991 -] JZZ31,UZZ30 RH |
85211-24080 |
US $62.61 |
||
|
85190
|
85190
85221-24090 Arm Assy, Windshield Wiper[01.1994 -] JZZ31,UZZ30 LH |
85221-24090 |
US $65.81 |
||
|
85214A
|
85214A
85214-30240 Rubber, Wiper, Lh[02.1995 -] JZZ31,UZZ30 |
85214-30240 |
US $12.96 |
||
| replacement | |||||
|
85214A
|
85214A
85214-30250 Rubber, Wiper, Rh[02.1995 -] JZZ31,UZZ30 |
85214-30250 |
US $11.20 |
||
|
85214B
|
85214B
85214-33050
Rubber, Wiper, Lh
[02.1995 -] JZZ31,UZZ30 |
85214-33050 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-40080 Rubber, Wiper, Lh[02.1995 -] JZZ31,UZZ30 |
85214-40080 |
from US $13.60 |
||
|
85220
|
85220
85212-24071 Blade Assy, Windshield Wiper[02.1993 -] JZZ31,UZZ30 RH |
85212-24071 |
US $44.26 |
||
|
85220
|
85220
85222-14610
Blade Assy, Windshield Wiper
[01.1994 -] JZZ31,UZZ30 LH |
85222-14610 |
— | ||
| replacement | |||||
|
85220
|
85220
85222-20340 Blade Assy, Windshield WiperWINDSHIELD WIPER [01.1994 -] JZZ31,UZZ30 LH |
85222-20340 |
US $40.01 |
||
|
85224A
|
85224A
85224-24080 Plate, Wiper Rubber Backing, No.3[02.1995 -] JZZ31,UZZ30 |
85224-24080 |
US $6.41 |
||
|
85224B
|
85224B
85224-24070 Plate, Wiper Rubber Backing, No.4[02.1995 -] JZZ31,UZZ30 |
85224-24070 |
US $6.41 |
||
|
85224C
|
85224C
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 -] JZZ31,UZZ30 |
85224-33050 |
US $5.07 |
||
|
85224D
|
85224D
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 -] JZZ31,UZZ30 |
85224-33050 |
US $5.07 |
||
|
85298
|
85298
85111-24050 Cover, Wiper MotorWIPER MOTOR [04.1991 -] JZZ31,UZZ30 |
85111-24050 |
US $14.56 |
||
|
8271160270
|
8271160270
82711-60270 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60270 |
US $1.44 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
