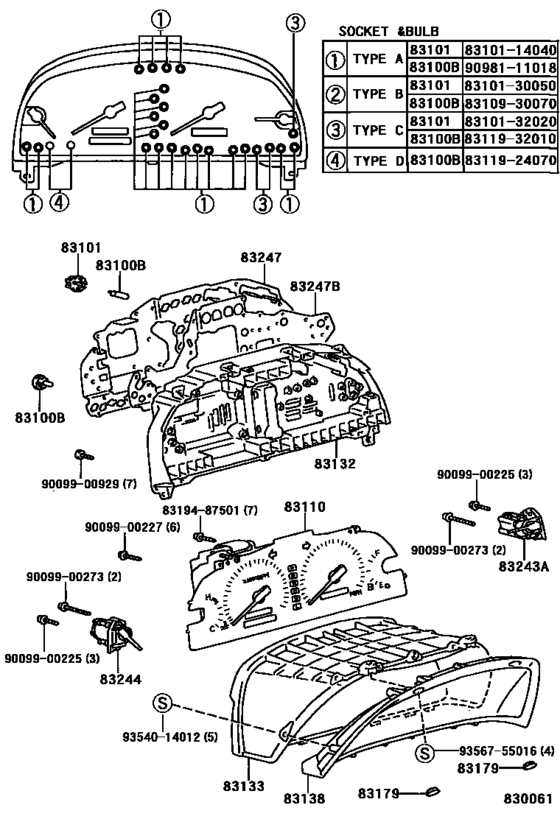

Meter ([08.1996 - 09.1997] (9608-9709)) Diagram Toyota LEXUS SC
- Year
- 1991 - 1997
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 04.1991
- To
- 09.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24040 Bulb, Combination Meter, No.1[04.1991 - 01.1994] JZZ31,UZZ30 12V 1.4W W(GREEN CAP) |
83109-24040 |
US $2.36 |
||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[01.1994 - 08.1996] JZZ31,UZZ30 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-24070 Bulb, Combination Meter, No.1[08.1996 -] JZZ31,UZZ30..4FC 12V 1.4W W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
83119-24070 |
US $13.12 |
||
|
83100B
|
83100B
83119-24570
Bulb, Combination Meter, No.1
[04.1991 - 08.1993] JZZ31,UZZ30 14V 3.0W,BLUE CAP |
83119-24570 |
— | ||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[01.1994 - 08.1996] JZZ31,UZZ30 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83119-50050 Bulb, Combination Meter, No.1[04.1991 - 01.1994] JZZ31,UZZ30..4FC 14V 3.0W,LONG LIFE |
83119-50050 |
US $7.25 |
||
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[08.1997 -] JZZ31,UZZ30..ATM..USA 13.5V,W(SOCKET) |
83120-24010 |
— | ||
|
83100B
|
83100B
90099-53007
Bulb, Combination Meter, No.1
[08.1993 - 08.1996] JZZ31,UZZ30 14V 3.0W(T6.5) |
90099-53007 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[04.1991 - 01.1994] UZZ30..USA 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1996 -] JZZ31,UZZ30..ATM TYPE A:REFER TO ILLUSTRATION |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-24010 Socket Sub-Assy, Combination Meter Bulb[04.1991 - 08.1996] JZZ31,UZZ30 TYPE B:REFER TO ILLUSTRATION |
83101-24010 |
US $2.57 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[08.1996 -] JZZ31,UZZ30 TYPE B:REFER TO ILLUSTRATION |
83101-30050 |
— | ||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[04.1991 -] JZZ31,UZZ30 TYPE C:REFER TO ILLUSTRATION |
83101-32020 |
from US $2.42 |
||
|
83110
|
83110
83110-24050 Speedometer Assy[04.1991 - 09.1992] UZZ30..USA |
83110-24050 |
US $910 |
||
|
83110
|
83110
83110-24051 Speedometer Assy[09.1992 - 08.1993] UZZ30..USA |
83110-24051 |
US $777.50 |
||
|
83110
|
83110
83110-24052 Speedometer Assy[08.1993 - 01.1994] UZZ30..USA |
83110-24052 |
US $776.05 |
||
|
83110
|
83110
83110-24053 Speedometer Assy[01.1994 - 08.1994] UZZ30..USA |
83110-24053 |
US $776.05 |
||
|
83110
|
83110
83110-24054 Speedometer Assy[08.1994 - 08.1995] UZZ30..USA |
83110-24054 |
US $998.82 |
||
|
83110
|
83110
83110-24055 Speedometer Assy[08.1995 - 08.1996] UZZ30..USA |
83110-24055 |
US $998.82 |
||
|
83110
|
83110
83220-24010
Speedometer Assy
[08.1996 - 08.1997] UZZ30..USA |
83220-24010 |
— | ||
|
83110
|
83110
83220-24011
Speedometer Assy
[08.1997 -] UZZ30..USA |
83220-24011 |
— | ||
|
83132
|
83132
83132-24170
Case, Combination Meter
[04.1991 - 08.1992] JZZ31..CND;JZZ31,UZZ30..4FC NO.1 |
83132-24170 |
— | ||
|
83132
|
83132
83132-24210
Case, Combination Meter
[04.1991 - 08.1996] JZZ31,UZZ30 NO.2 |
83132-24210 |
— | ||
|
83132
|
83132
83132-24470
Case, Combination Meter
[08.1993 - 01.1994] JZZ31,UZZ30 NO.1 |
83132-24470 |
— | ||
|
83132
|
83132
83132-24490
Case, Combination Meter
[01.1994 - 08.1996] JZZ31,UZZ30 NO.1 |
83132-24490 |
— | ||
|
83132
|
83132
83841-24010
Case, Combination Meter
[08.1996 - 08.1997] JZZ31,UZZ30 |
83841-24010 |
— | ||
|
83132
|
83132
83841-24011
Case, Combination Meter
[08.1997 -] JZZ31,UZZ30..ATM..USA |
83841-24011 |
— | ||
|
83133
|
83133
83133-24550
Plate, Combination Meter, No.1
[04.1991 -] JZZ31,UZZ30 |
83133-24550 |
— | ||
|
83138
|
83138
83138-24190
Glass, Speedometer
[04.1991 -] JZZ31,UZZ30 |
83138-24190 |
— | ||
|
83179
|
83179
83179-24010
Cover, Combination Meter, Hole
[04.1991 -] JZZ31,UZZ30 |
83179-24010 |
— | ||
|
83243A
|
83243A
83243-24050 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [04.1991 - 08.1993] JZZ31,UZZ30 |
83243-24050 |
US $70.47 |
||
|
83243A
|
83243A
83243-24070
Gauge Sub-Assy, Fuel Receiver
[08.1993 - 08.1996] JZZ31,UZZ30 |
83243-24070 |
— | ||
|
83243A
|
83243A
83882-24010 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1996 -] JZZ31,UZZ30 |
83882-24010 |
US $77.17 |
||
|
83244
|
83244
83244-24030
Gauge Sub-Assy, Water Temperature Receiver
[04.1991 - 08.1993] JZZ31,UZZ30 |
83244-24030 |
— | ||
|
83244
|
83244
83244-24050
Gauge Sub-Assy, Water Temperature Receiver
[08.1993 - 08.1996] JZZ31,UZZ30 |
83244-24050 |
— | ||
|
83244
|
83244
83883-24010 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1996 -] JZZ31,UZZ30 |
83883-24010 |
US $70.76 |
||
|
83247
|
83247
83247-24510
Plate, Meter Circuit
[04.1991 - 08.1993] JZZ31,UZZ30 |
83247-24510 |
— | ||
|
83247
|
83247
83247-2U130
Plate, Meter Circuit
[08.1993 - 01.1994] JZZ31,UZZ30 |
83247-2U130 |
— | ||
|
83247
|
83247
83247-2U230
Plate, Meter Circuit
[01.1994 - 08.1996] JZZ31,UZZ30 |
83247-2U230 |
— | ||
|
83247
|
83247
83861-24010
Plate, Meter Circuit
[08.1996 - 08.1997] UZZ30..USA |
83861-24010 |
— | ||
|
83247
|
83247
83861-24011
Plate, Meter Circuit
[08.1997 -] UZZ30..USA |
83861-24011 |
— | ||
|
83247B
|
83247B
83247-24530
Plate, Meter Circuit, No.2
[04.1991 - 08.1992] JZZ31,UZZ30..USA..4FC |
83247-24530 |
— | ||
| replacement | |||||
|
83247B
|
83247B
83247-24610
Plate, Meter Circuit, No.2
[04.1991 - 08.1992] JZZ31,UZZ30..USA..4FC |
83247-24610 |
— | ||
|
83247B
|
83247B
83247-24610
Plate, Meter Circuit, No.2
[08.1992 - 08.1993] UZZ30 |
83247-24610 |
— | ||
|
83247B
|
83247B
83247-2U150
Plate, Meter Circuit, No.2
[08.1993 - 01.1994] JZZ31,UZZ30 |
83247-2U150 |
— | ||
|
83247B
|
83247B
83247-2U210
Plate, Meter Circuit, No.2
[01.1994 - 08.1996] JZZ31,UZZ30 |
83247-2U210 |
— | ||
|
83247B
|
83247B
83862-24010
Plate, Meter Circuit, No.2
[08.1996 -] JZZ31,UZZ30 |
83862-24010 |
— | ||
|
8319487501
|
8319487501
83194-87501
SCREWWWASHER
|
83194-87501 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900227
|
9009900227
90099-00227
New Genuine Part
|
90099-00227 |
— | ||
|
9009900273
|
9009900273
90099-00273 New Genuine Part |
90099-00273 |
US $1.31 |
||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
