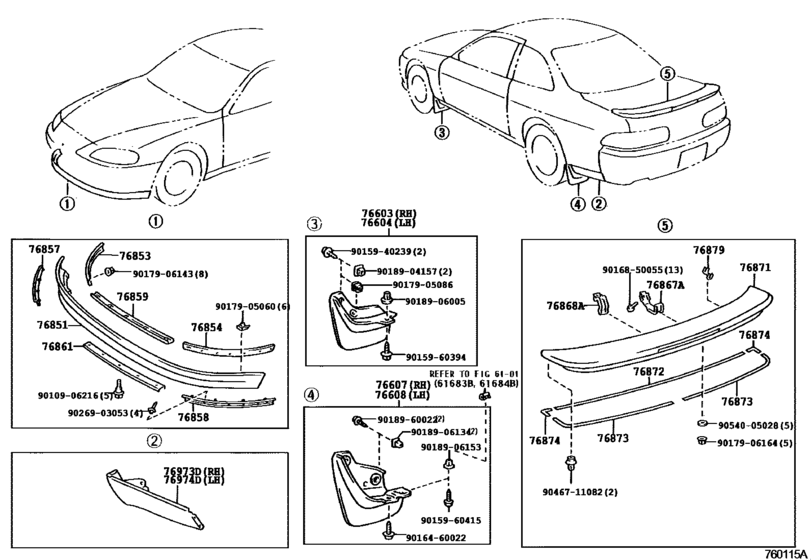

Mudguard & Spoiler ([04.1991 - 08.1996] (9104-9608)) Diagram Toyota LEXUS SC
- Year
- 1991 - 1997
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 04.1991
- To
- 09.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76621-29115
Mudguard Sub-Assy, Front Fender, Rh
[04.1991 - 08.1996] JZZ31,UZZ30 |
76621-29115 |
— | ||
|
76604
|
76604
76622-29115
Mudguard Sub-Assy, Front Fender, Lh
[04.1991 - 08.1996] JZZ31,UZZ30 |
76622-29115 |
— | ||
|
76607
|
76607
76625-29105 Mudguard Sub-Assy, Quarter Panel, Rear Rh[04.1991 - 08.1996] JZZ31,UZZ30 |
76625-29105 |
US $52.42 |
||
|
76608
|
76608
76626-29105
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[04.1991 - 08.1996] JZZ31,UZZ30 |
76626-29105 |
— | ||
|
76851
|
76851
76851-24030
Cover, Front Spoiler
[04.1991 - 01.1994] UZZ30 |
76851-24030 |
— | ||
|
76853
|
76853
76853-24020
Retainer, Front Spoiler, Upper Rh
[04.1991 - 01.1994] UZZ30 |
76853-24020 |
— | ||
|
76854
|
76854
76854-24020
Retainer, Front Spoiler, Upper Lh
[04.1991 - 01.1994] UZZ30 |
76854-24020 |
— | ||
|
76857
|
76857
76857-24020
Retainer, Front Spoiler Side, Rh
[04.1991 - 01.1994] UZZ30 |
76857-24020 |
— | ||
|
76858
|
76858
76858-24020
Retainer, Front Spoiler Side, Lh
[04.1991 - 01.1994] UZZ30 |
76858-24020 |
— | ||
|
76859
|
76859
76859-24020
Retainer, Front Spoiler, Upper No.3
[04.1991 - 01.1994] UZZ30 |
76859-24020 |
— | ||
|
76861
|
76861
76861-24020 Retainer, Front Spoiler, Lower No.1[04.1991 - 01.1994] UZZ30 |
76861-24020 |
US $30.87 |
||
|
76867A
|
76867A
76867-24030 Retainer, Rear Spoiler, No.3[04.1991 - 08.1995] JZZ31,UZZ30 |
76867-24030 |
US $3.49 |
||
|
76868A
|
76868A
76868-24030 Retainer, Rear Spoiler, No.4[04.1991 - 08.1995] JZZ31,UZZ30 |
76868-24030 |
US $2.77 |
||
|
76871
|
76871
76871-24902 Spoiler, Rear[04.1991 - 08.1995] JZZ31,UZZ30 |
76871-24902 |
US $605.70 |
||
|
76871
|
76871
76871-24904 Spoiler, Rear[08.1996 - 11.1996] UZZ30 |
76871-24904 |
US $607.15 |
||
|
76872
|
76872
76872-24030 Protector, Rear Spoiler, No.1[04.1991 - 08.1995] JZZ31,UZZ30 |
76872-24030 |
US $41.64 |
||
| replacement | |||||
|
76872
|
76872
90999-91057
Protector, Rear Spoiler, No.1
[04.1991 - 08.1995] JZZ31,UZZ30 |
90999-91057 |
— | ||
|
76872
|
76872
76872-24040 Protector, Rear Spoiler, No.1[08.1996 - 11.1996] UZZ30 |
76872-24040 |
US $5.10 |
||
|
76872
|
76872
90999-91057
Protector, Rear Spoiler, No.1
[08.1995 - 08.1996] UZZ30 |
90999-91057 |
— | ||
|
76873
|
76873
76873-24020 Protector, Rear Spoiler, No.2[04.1991 - 05.1993] JZZ31,UZZ30 |
76873-24020 |
US $33.49 |
||
| replacement | |||||
|
76873
|
76873
90999-91054 Protector, Rear Spoiler, Center[04.1991 - 05.1993] JZZ31,UZZ30 |
90999-91054 |
US $4.80 |
||
|
76873
|
76873
76873-24021 Protector, Rear Spoiler, No.2[05.1993 - 08.1995] JZZ31,UZZ30 |
76873-24021 |
US $11.50 |
||
| replacement | |||||
|
76873
|
76873
90999-91054 Protector, Rear Spoiler, Center[05.1993 - 08.1995] JZZ31,UZZ30 |
90999-91054 |
US $4.80 |
||
|
76873
|
76873
76873-24030 Protector, Rear Spoiler, No.2[08.1996 - 11.1996] UZZ30 |
76873-24030 |
US $7.28 |
||
|
76873
|
76873
90999-91054 Protector, Rear Spoiler, Center[08.1995 - 08.1996] UZZ30 |
90999-91054 |
US $4.80 |
||
|
76874
|
76874
76874-24020
Protector, Rear Spoiler, No.3
[04.1991 - 08.1995] JZZ31,UZZ30 |
76874-24020 |
— | ||
|
76874
|
76874
76874-24030 Protector, Rear Spoiler, No.3[08.1996 - 11.1996] UZZ30 |
76874-24030 |
US $7.28 |
||
|
76879
|
76879
76879-20030 Clip, Rear Spoiler, No.1[04.1991 - 08.1995] JZZ31,UZZ30 |
76879-20030 |
US $1.75 |
||
|
76973D
|
76973D
76973-24901 Cover, Rear Under Side, Rh[04.1991 - 08.1996] JZZ31,UZZ30 |
76973-24901 |
US $88.82 |
||
|
76973D
|
76973D
76973-24902 Cover, Rear Under Side, RhREAR UNDER SIDE, RH [08.1996 -] JZZ31,UZZ30 |
76973-24902 |
US $123.76 |
||
|
76974D
|
76974D
76974-24901 Cover, Rear Under Side, Lh[04.1991 - 08.1996] JZZ31,UZZ30 |
76974-24901 |
US $88.82 |
||
|
76974D
|
76974D
76974-24902 Cover, Rear Under Side, LhREAR UNDER SIDE, LH [08.1996 -] JZZ31,UZZ30 |
76974-24902 |
US $123.76 |
||
|
9010906216
|
9010906216
90109-06216 New Genuine Part |
90109-06216 |
US $1.31 |
||
|
9015940239
|
9015940239
90159-40239
New Genuine Part
|
90159-40239 |
— | ||
|
9015960394
|
9015960394
90159-60394
New Genuine Part
|
90159-60394 |
— | ||
|
9015960415
|
9015960415
90159-60415 SCREW WWASHER |
90159-60415 |
from US $0.86 |
||
|
9016460022
|
9016460022
90164-60022 New Genuine Part |
90164-60022 |
US $0.51 |
||
|
9016850055
|
9016850055
90168-50055 New Genuine Part |
90168-50055 |
US $1.02 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.78 |
||
|
9017905086
|
9017905086
90179-05086 New Genuine Part |
90179-05086 |
US $1.92 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
|
9017906164
|
9017906164
90179-06164
Nut, Wire Adjusting, No.1
|
90179-06164 |
— | ||
| replacement | |||||
|
9017906164
|
9017906164
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.92 |
||
|
9018904157
|
9018904157
90189-04157 GROMMETSCREW |
90189-04157 |
US $1.05 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.08 |
||
|
9018906134
|
9018906134
90189-06134 GROMMET |
90189-06134 |
from US $1.28 |
||
|
9018906153
|
9018906153
90189-06153 New Genuine Part |
90189-06153 |
US $1.89 |
||
| replacement | |||||
|
9018906153
|
9018906153
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018960022
|
9018960022
90189-60022
New Genuine Part
|
90189-60022 |
— | ||
|
9026903053
|
9026903053
90269-03053 RIVET |
90269-03053 |
from US $0.70 |
||
|
9046711082
|
9046711082
90467-11082 New Genuine Part |
90467-11082 |
US $2.18 |
||
|
9054005028
|
9054005028
90540-05028
New Genuine Part
|
90540-05028 |
— | ||
