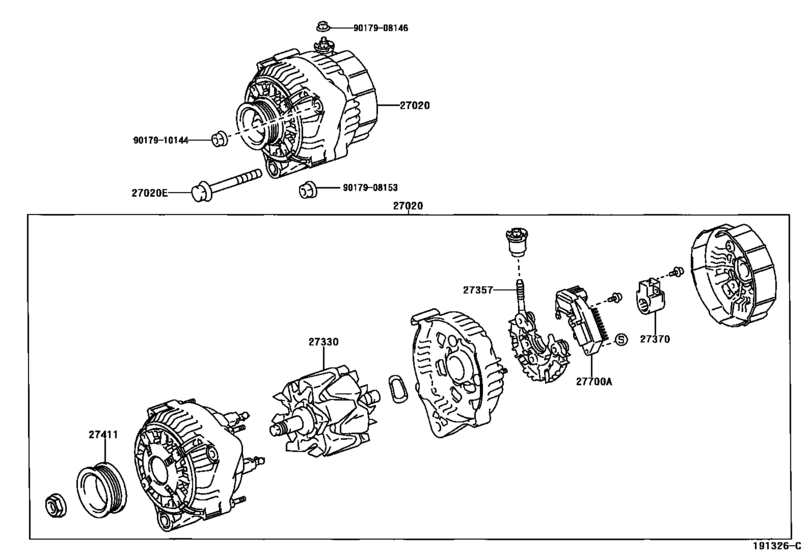

Alternator ([01.2001 - 05.2001] 12V 100A (0101-0105)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 01.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-50240 Alternator Assy[01.2001 - 05.2001] 3UZFE..UZZ40..5FC 12V 100A |
27060-50240 |
US $1,820 |
||
|
27020
|
27020
27060-50280 Alternator Assy[05.2001 - 08.2005] 3UZFE..UZZ40 12V 130A |
27060-50280 |
US $1,674.40 |
||
|
27020E
|
27020E
90119-10791 Bolt(For Alternator)[01.2001 - 08.2005] 3UZFE..UZZ40 |
90119-10791 |
US $3.67 |
||
|
27330
|
27330
27330-20130
Rotor Assy, Alternator
[05.2001 - 08.2005] 3UZFE..UZZ40 |
27330-20130 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[05.2001 - 08.2005] 3UZFE..UZZ40 |
27330-33090 |
US $193.94 |
||
|
27330
|
27330
27330-50230
Rotor Assy, Alternator
[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27330-50230 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-20070
Rotor Assy, Alternator
[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27330-20070 |
— | ||
|
27357
|
27357
27357-50280
Holder, Alternator, W/rectifier
[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27357-50280 |
— | ||
|
27370
|
27370
27370-20130 Holder Assy, Alternator Brush[05.2001 - 08.2005] 3UZFE..UZZ40 |
27370-20130 |
from US $17.84 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27370-75060 |
from US $16.50 |
||
|
27411
|
27411
27411-46080
Pulley, Alternator
[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27411-46080 |
— | ||
|
27411
|
27411
27411-50050 Pulley, Alternator[05.2001 - 08.2005] 3UZFE..UZZ40 |
27411-50050 |
US $21.10 |
||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[01.2001 - 05.2001] 3UZFE..UZZ40..5FC |
27700-50030 |
from US $160.78 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
