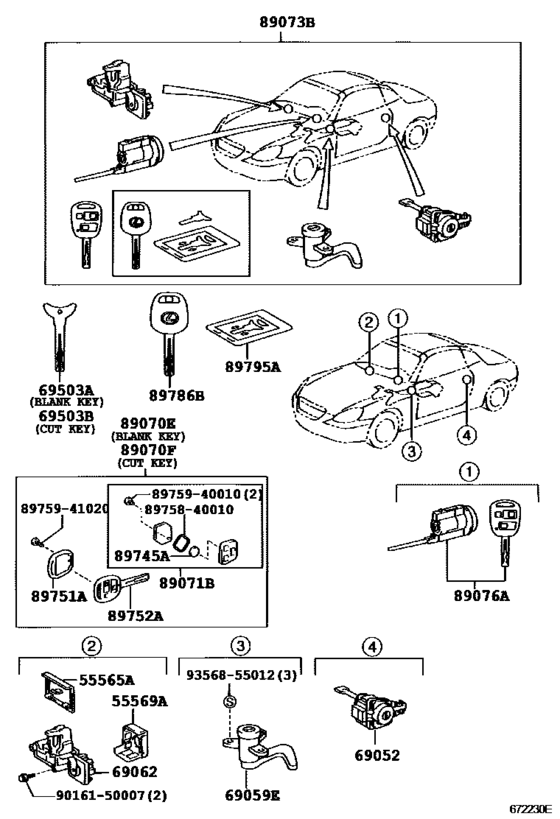

Lock Cylinder Set ([01.2001 - 08.2005] (0101-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 01.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55565A
|
55565A
55565-22020-A2 Handle, Glove Compartment Door Lock[01.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55565-22020-A2 |
US $3.35 |
||
| replacement | |||||
|
55565A
|
55565A
55565-22020-C0
Handle, Glove Compartment Door Lock
[01.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55565-22020-C0 |
— | ||
|
55565A
|
55565A
55565-22020-C0
Handle, Glove Compartment Door Lock
[01.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55565-22020-C0 |
— | ||
|
55565A
|
55565A
55565-24010-D0 Handle, Glove Compartment Door Lock[11.2001 - 12.2001] UZZ40 NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21 |
55565-24010-D0 |
US $2.62 |
||
|
55569A
|
55569A
55569-22030-A2 Cover, Glove Compartment Door Lock[01.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55569-22030-A2 |
US $4.22 |
||
| replacement | |||||
|
55569A
|
55569A
55569-22030-C0
Cover, Glove Compartment Door Lock
[01.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55569-22030-C0 |
— | ||
|
55569A
|
55569A
55569-22030-C0
Cover, Glove Compartment Door Lock
[01.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55569-22030-C0 |
— | ||
|
55569A
|
55569A
55569-22030-D0 Cover, Glove Compartment Door Lock[08.2004 - 09.2004] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3# |
55569-22030-D0 |
US $4.37 |
||
| replacement | |||||
|
55569A
|
55569A
55569-24010-D0 Cover, Glove Compartment Door Lock[08.2004 - 09.2004] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3# |
55569-24010-D0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-D0 Cover, Glove Compartment Door Lock[11.2001 - 12.2001] UZZ40 NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21 |
55569-24010-D0 |
US $3.49 |
||
|
69052
|
69052
69052-24060 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [01.2001 - 08.2005] UZZ40 |
69052-24060 |
US $131.04 |
||
|
69059E
|
69059E
69059-24010 Cylinder & Key Set, Console Compartment LockCONSOLE COMPARTMENT LOCK [01.2001 - 08.2005] UZZ40 |
69059-24010 |
US $119.39 |
||
|
69062
|
69062
69056-24070 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [01.2001 - 08.2005] UZZ40 |
69056-24070 |
US $147.06 |
||
|
69503A
|
69503A
90999-00233
Key, Blank
[01.2001 - 05.2004] UZZ40 MASTER KEY,CARD TYPE |
90999-00233 |
— | ||
|
69503B
|
69503B
69515-50130 Key, BlankCUT [01.2001 - 08.2005] UZZ40 MASTER KEY |
69515-50130 |
US $126.67 |
||
|
89070E
|
89070E
89070-24170
Transmitter Assy, Door Control
[01.2001 - 02.2005] UZZ40 |
89070-24170 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24171 Transmitter Assy, Door Control[01.2001 - 02.2005] UZZ40 |
89070-24171 |
US $216.94 |
||
|
89070E
|
89070E
89070-24171 Transmitter Assy, Door Control[03.2005 - 08.2005] UZZ40 |
89070-24171 |
US $216.94 |
||
|
89070E
|
89070E
89070-24180
Transmitter Assy, Door Control
[01.2001 - 08.2005] UZZ40 TAIWAN SPEC |
89070-24180 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24181 Transmitter Assy, Door Control[01.2001 - 08.2005] UZZ40 TAIWAN SPEC |
89070-24181 |
US $311.58 |
||
|
89070F
|
89070F
89070-24230
Transmitter Assy, Door Control (Cut Key)
[01.2001 - 02.2005] UZZ40 |
89070-24230 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24231 Transmitter Assy, Door Control (Cut Key)[01.2001 - 02.2005] UZZ40 |
89070-24231 |
US $374.19 |
||
|
89070F
|
89070F
89070-24231 Transmitter Assy, Door Control (Cut Key)[03.2005 - 08.2005] UZZ40 |
89070-24231 |
US $374.19 |
||
|
89070F
|
89070F
89070-24240
Transmitter Assy, Door Control (Cut Key)
[01.2001 - 08.2005] UZZ40 TAIWAN SPEC |
89070-24240 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24241
Transmitter Assy, Door Control (Cut Key)
[01.2001 - 08.2005] UZZ40 TAIWAN SPEC |
89070-24241 |
— | ||
|
89071B
|
89071B
89071-50230 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [01.2001 - 08.2005] UZZ40 |
89071-50230 |
from US $199.47 |
||
|
89073B
|
89073B
89076-24020
Cylinder Set, Lock W/transmitter Housing(Less Module)
[01.2001 - 03.2005] UZZ40 |
89076-24020 |
— | ||
| replacement | |||||
|
89073B
|
89073B
89076-24021 Cylinder Set, Lock W/transmitter Housing(Less Module)[01.2001 - 03.2005] UZZ40 |
89076-24021 |
US $562.02 |
||
|
89073B
|
89073B
89076-24021 Cylinder Set, Lock W/transmitter Housing(Less Module)[03.2005 - 08.2005] UZZ40 |
89076-24021 |
US $562.02 |
||
|
89076A
|
89076A
89076-24060 Ign Cylinder Set, Lock W/transmitter HousingLOCK W/TRANSMITTER HOUSING [01.2001 - 02.2005] UZZ40 |
89076-24060 |
US $468.83 |
||
| replacement | |||||
|
89076A
|
89076A
69057-24180
Ign Cylinder Set, Lock W/transmitter Housing
[01.2001 - 02.2005] UZZ40 |
69057-24180 |
— | ||
|
89076A
|
89076A
89076-24061 Ign Cylinder Set, Lock W/transmitter Housing[03.2005 - 08.2005] UZZ40 |
89076-24061 |
US $468.83 |
||
| replacement | |||||
|
89076A
|
89076A
69057-24180
Ign Cylinder Set, Lock W/transmitter Housing
[03.2005 - 08.2005] UZZ40 |
69057-24180 |
— | ||
|
89745A
|
89745A
89745-40010
Transmitter Battery
[01.2001 - 08.2005] UZZ40 |
89745-40010 |
— | ||
|
89751A
|
89751A
89751-24030 Cover, Transmitter Housing[01.2001 - 02.2005] UZZ40 |
89751-24030 |
US $12.67 |
||
| replacement | |||||
|
89751A
|
89751A
89751-24031 Cover, Transmitter Housing[01.2001 - 02.2005] UZZ40 |
89751-24031 |
US $10.48 |
||
|
89751A
|
89751A
89751-24031 Cover, Transmitter Housing[03.2005 - 08.2005] UZZ40 |
89751-24031 |
US $10.48 |
||
|
89751A
|
89751A
89751-24040 Cover, Transmitter HousingTRANSMITTER HOUSING [01.2001 - 07.2005] UZZ40 TAIWAN SPEC |
89751-24040 |
US $12.67 |
||
| replacement | |||||
|
89751A
|
89751A
89751-24041 Cover, Transmitter HousingTRANSMITTER HOUSING [01.2001 - 07.2005] UZZ40 TAIWAN SPEC |
89751-24041 |
US $10.48 |
||
|
89752A
|
89752A
89752-33070 Case, Transmitter HousingTRANSMITTER HOUSING [01.2001 - 08.2005] UZZ40 MASTER KEY(BLANK) |
89752-33070 |
US $16.97 |
||
|
89752A
|
89752A
89752-33080 Case, Transmitter HousingTRANSMITTER HOUSING [01.2001 - 08.2005] UZZ40 MASTER KEY(CUT) |
89752-33080 |
US $178.56 |
||
|
89786B
|
89786B
89786-50110
Transmitter, Transponder Key Sub
[01.2001 - 08.2005] UZZ40 BLANK KEY |
89786-50110 |
— | ||
| replacement | |||||
|
89786B
|
89786B
89786-60150 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [01.2001 - 08.2005] UZZ40 BLANK KEY |
89786-60150 |
US $139.78 |
||
|
89786B
|
89786B
89786-50130 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [01.2001 - 08.2005] UZZ40 CUT KEY |
89786-50130 |
US $139.78 |
||
| replacement | |||||
|
89786B
|
89786B
89786-60200 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [01.2001 - 08.2005] UZZ40 CUT KEY |
89786-60200 |
US $139.78 |
||
|
89795A
|
89795A
89795-50010
Card, Spare Key
[01.2001 - 08.2005] UZZ40 |
89795-50010 |
— | ||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.19 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
