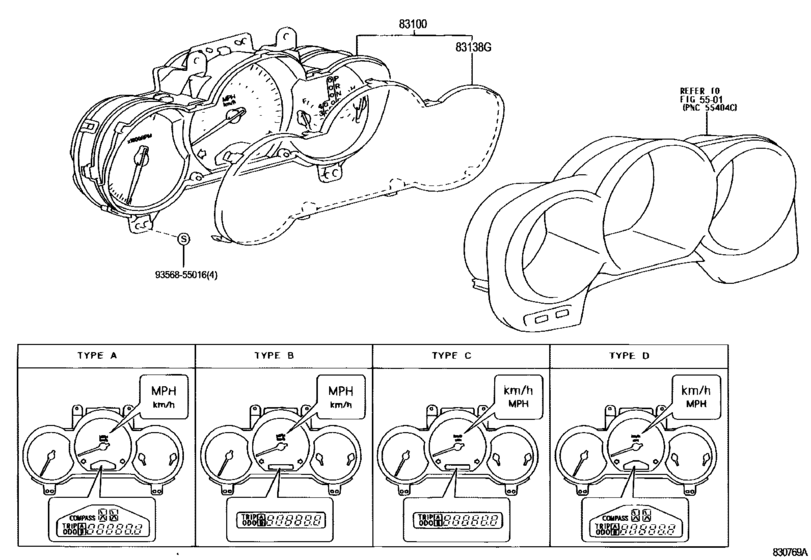

Meter ([01.2001 - 08.2005] (0101-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 01.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-24120
Meter Assy, Combination
[01.2001 - 08.2005] UZZ40 TYPE A:REFER TO ILLUSTRATION |
83800-24120 |
— | ||
|
83100
|
83100
83800-24130 Meter Assy, CombinationCOMBINATION [01.2001 - 08.2005] UZZ40 TYPE B:REFER TO ILLUSTRATION |
83800-24130 |
US $1,601.60 |
||
|
83100
|
83100
83800-24160
Meter Assy, Combination
[01.2001 - 08.2005] UZZ40 TYPE C:REFER TO ILLUSTRATION |
83800-24160 |
— | ||
|
83100
|
83100
83800-24210
Meter Assy, Combination
[01.2002 - 08.2005] UZZ40 TYPE D:REFER TO ILLUSTRATION |
83800-24210 |
— | ||
|
83138G
|
83138G
83852-24120
Glass, Combination Meter
[01.2001 - 04.2001] UZZ40..5FC |
83852-24120 |
— | ||
| replacement | |||||
|
83138G
|
83138G
83852-24121
Glass, Combination Meter
[01.2001 - 04.2001] UZZ40..5FC |
83852-24121 |
— | ||
|
83138G
|
83138G
83852-24121
Glass, Combination Meter
[04.2001 - 08.2005] UZZ40 |
83852-24121 |
— | ||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
