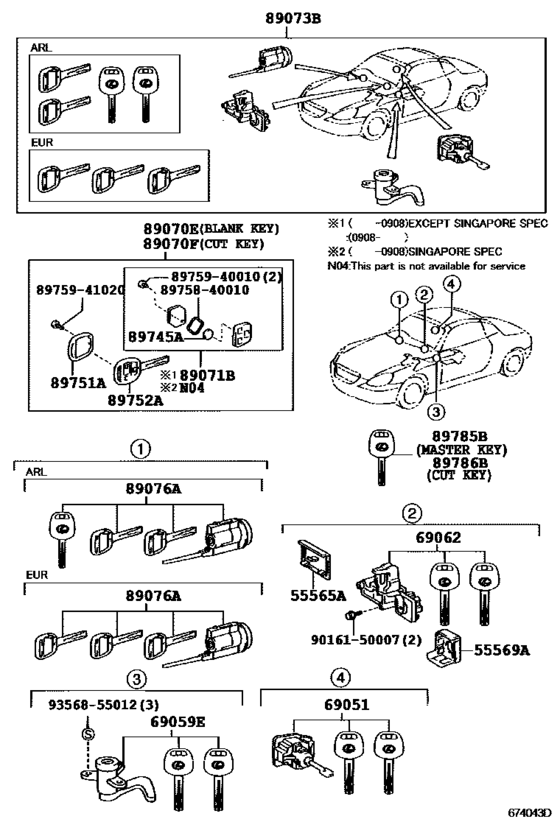

Lock Cylinder Set ([08.2005 - ] (0508- )RHD) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- ARL
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55565A
|
55565A
55565-24010-A0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 ECRU,TRIM0# |
55565-24010-A0 |
US $2.62 |
||
|
55565A
|
55565A
55565-24010-C0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 BLACK,TRIM2# |
55565-24010-C0 |
US $2.62 |
||
|
55565A
|
55565A
55565-24010-E0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 CAMEL,TRIM4# |
55565-24010-E0 |
US $2.62 |
||
|
55569A
|
55569A
55569-24010-A0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 ECRU,TRIM0# |
55569-24010-A0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-C0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 BLACK,TRIM2# |
55569-24010-C0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-E0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 CAMEL,TRIM4# |
55569-24010-E0 |
US $3.49 |
||
|
69051
|
69051
69051-24070 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [08.2005 -] UZZ40..ARL |
69051-24070 |
US $131.04 |
||
|
69059E
|
69059E
69059-24010 Cylinder & Key Set, Console Compartment LockCONSOLE COMPARTMENT LOCK [08.2005 -] UZZ40 |
69059-24010 |
US $119.39 |
||
|
69062
|
69062
69056-24070 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.2005 -] UZZ40 |
69056-24070 |
US $147.06 |
||
|
89070E
|
89070E
89070-24220
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40..ARL SINGAPORE SPEC |
89070-24220 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24222
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40..ARL SINGAPORE SPEC |
89070-24222 |
— | ||
|
89070E
|
89070E
89070-24221
Transmitter Assy, Door Control
[11.2005 - 06.2006] UZZ40..ARL SINGAPORE SPEC |
89070-24221 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24222
Transmitter Assy, Door Control
[11.2005 - 06.2006] UZZ40..ARL SINGAPORE SPEC |
89070-24222 |
— | ||
|
89070E
|
89070E
89070-24222
Transmitter Assy, Door Control
[07.2006 - 08.2009] UZZ40..ARL SINGAPORE SPEC |
89070-24222 |
— | ||
|
89070E
|
89070E
89070-24450
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40..ARL |
89070-24450 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24451
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40..ARL |
89070-24451 |
— | ||
|
89070E
|
89070E
89070-24451
Transmitter Assy, Door Control
[11.2005 - 08.2009] UZZ40..ARL |
89070-24451 |
— | ||
|
89070E
|
89070E
89070-24690 Transmitter Assy, Door ControlDOOR CONTROL [08.2009 -] UZZ40..ARL |
89070-24690 |
US $412.05 |
||
|
89070E
|
89070E
89070-24700
Transmitter Assy, Door Control
[08.2009 -] UZZ40..ARL SINGAPORE SPEC |
89070-24700 |
— | ||
|
89070F
|
89070F
89070-24270
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40..ARL SINGAPORE SPEC |
89070-24270 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24272
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40..ARL SINGAPORE SPEC |
89070-24272 |
— | ||
|
89070F
|
89070F
89070-24271
Transmitter Assy, Door Control (Cut Key)
[11.2005 - 07.2006] UZZ40..ARL SINGAPORE SPEC |
89070-24271 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24272
Transmitter Assy, Door Control (Cut Key)
[11.2005 - 07.2006] UZZ40..ARL SINGAPORE SPEC |
89070-24272 |
— | ||
|
89070F
|
89070F
89070-24272
Transmitter Assy, Door Control (Cut Key)
[08.2006 - 08.2009] UZZ40..ARL SINGAPORE SPEC |
89070-24272 |
— | ||
|
89070F
|
89070F
89070-24460
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40..ARL |
89070-24460 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24461
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40..ARL |
89070-24461 |
— | ||
|
89070F
|
89070F
89070-24461
Transmitter Assy, Door Control (Cut Key)
[11.2005 - 08.2009] UZZ40..ARL |
89070-24461 |
— | ||
|
89070F
|
89070F
89070-24820
Transmitter Assy, Door Control (Cut Key)
[08.2009 -] UZZ40..ARL |
89070-24820 |
— | ||
|
89070F
|
89070F
89070-24840
Transmitter Assy, Door Control (Cut Key)
[08.2009 -] UZZ40..ARL SINGAPORE SPEC |
89070-24840 |
— | ||
|
89071B
|
89071B
89071-24270
Module Set, Transmitter Sub-Assy, Door Control
[08.2009 - 07.2010] UZZ40..ARL |
89071-24270 |
— | ||
|
89071B
|
89071B
89071-24280
Module Set, Transmitter Sub-Assy, Door Control
[08.2009 - 07.2010] UZZ40..ARL SINGAPORE SPEC |
89071-24280 |
— | ||
|
89071B
|
89071B
89071-50440
Module Set, Transmitter Sub-Assy, Door Control
[08.2005 - 08.2009] UZZ40..ARL |
89071-50440 |
— | ||
|
89073B
|
89073B
69005-24330
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2009 -] UZZ40..ARL |
69005-24330 |
— | ||
|
89073B
|
89073B
69005-24420
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2005 - 08.2009] UZZ40..ARL |
69005-24420 |
— | ||
|
89076A
|
89076A
69057-24170
Ign Cylinder Set, Lock W/transmitter Housing
[08.2005 - 08.2009] UZZ40..ARL,GCC |
69057-24170 |
— | ||
|
89076A
|
89076A
69057-24180
Ign Cylinder Set, Lock W/transmitter Housing
[08.2009 -] UZZ40..ARL,GCC |
69057-24180 |
— | ||
|
89745A
|
89745A
89745-40010
Transmitter Battery
[08.2005 -] UZZ40..ARL,GCC |
89745-40010 |
— | ||
|
89751A
|
89751A
89751-24051
Cover, Transmitter Housing
[08.2005 -] UZZ40..ARL,GCC; UZZ40..EUR MASTER KEY |
89751-24051 |
— | ||
| replacements | |||||
|
89751A
|
89751A
89751-24052 COVER, TRANSMITTER[08.2005 -] UZZ40..ARL,GCC; UZZ40..EUR MASTER KEY |
89751-24052 |
US $12.23 |
||
|
89751A
|
89751A
89751-24053 COVER, TRANSMITTER[08.2005 -] UZZ40..ARL,GCC; UZZ40..EUR MASTER KEY |
89751-24053 |
from US $12.23 |
||
|
89751A
|
89751A
89751-50091
Cover, Transmitter Housing
[08.2005 - 07.2006] UZZ40..ARL SINGAPORE SPEC |
89751-50091 |
— | ||
| replacement | |||||
|
89751A
|
89751A
89751-50092
Cover, Transmitter Housing
[08.2005 - 07.2006] UZZ40..ARL SINGAPORE SPEC |
89751-50092 |
— | ||
|
89751A
|
89751A
89751-50092
Cover, Transmitter Housing
[08.2006 -] UZZ40..ARL SINGAPORE SPEC |
89751-50092 |
— | ||
|
89752A
|
89752A
89752-33070 Case, Transmitter HousingTRANSMITTER HOUSING [08.2005 -] UZZ40 MASTER KEY(BLANK) |
89752-33070 |
US $16.97 |
||
|
89752A
|
89752A
89752-33080 Case, Transmitter HousingTRANSMITTER HOUSING [08.2005 -] UZZ40 MASTER KEY(CUT) |
89752-33080 |
US $178.56 |
||
|
89785B
|
89785B
89785-24050
Transmitter, Transponder Key Master
[08.2009 -] UZZ40..ARL,GCC BLANK KEY |
89785-24050 |
— | ||
|
89785B
|
89785B
89785-24060
Transmitter, Transponder Key Master
[08.2009 -] UZZ40..ARL,GCC CUT KEY |
89785-24060 |
— | ||
|
89785B
|
89785B
89785-50110
Transmitter, Transponder Key Master
[08.2005 - 08.2009] UZZ40..ARL,GCC BLANK KEY |
89785-50110 |
— | ||
| replacement | |||||
|
89785B
|
89785B
89785-60180 Transmitter, Transponder Key MasterTRANSPONDER KEY MASTER [08.2005 - 08.2009] UZZ40..ARL,GCC BLANK KEY |
89785-60180 |
US $70.84 |
||
|
89785B
|
89785B
89785-50130
Transmitter, Transponder Key Master
[08.2005 - 08.2009] UZZ40..ARL,GCC CUT KEY |
89785-50130 |
— | ||
| replacement | |||||
|
89785B
|
89785B
89785-60140 Transmitter, Transponder Key MasterTRANSPONDER CUT KEY MASTER [08.2005 - 08.2009] UZZ40..ARL,GCC CUT KEY |
89785-60140 |
US $168.90 |
||
|
89786B
|
89786B
89786-24020
Transmitter, Transponder Key Sub
[08.2009 -] UZZ40..ARL,GCC BLANK KEY |
89786-24020 |
— | ||
|
89786B
|
89786B
89786-24030
Transmitter, Transponder Key Sub
[08.2009 -] UZZ40..ARL,GCC CUT KEY |
89786-24030 |
— | ||
|
89786B
|
89786B
89786-50110
Transmitter, Transponder Key Sub
[08.2005 - 08.2009] UZZ40..ARL,GCC BLANK KEY |
89786-50110 |
— | ||
| replacement | |||||
|
89786B
|
89786B
89786-60150 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.2005 - 08.2009] UZZ40..ARL,GCC BLANK KEY |
89786-60150 |
US $139.78 |
||
|
89786B
|
89786B
89786-50130 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.2005 - 08.2009] UZZ40..ARL,GCC CUT KEY |
89786-50130 |
US $139.78 |
||
| replacement | |||||
|
89786B
|
89786B
89786-60200 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.2005 - 08.2009] UZZ40..ARL,GCC CUT KEY |
89786-60200 |
US $139.78 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.19 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
