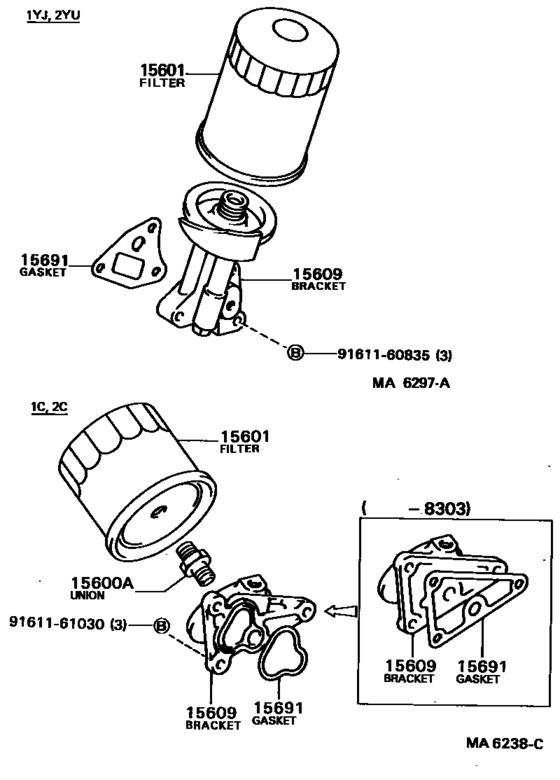

Oil Filter ([10.1982 - ] MA6297A,MA6238C (8210- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
90404-19003 Union(For Oil Filter)[10.1982 - 03.1983] 1C..CM2# |
90404-19003 |
US $10.77 |
||
|
15600A
|
15600A
90404-19004 Union(For Oil Filter)[03.1983 - 09.1986] 1C,2C..CM2# |
90404-19004 |
US $8.59 |
||
|
15601
|
15601
15600-25010
Filter Sub-Assy, Oil
[10.1982 - 09.1986] 1C,2C..CM2# |
15600-25010 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-20003
Oil Filter Sub-Assy (THAILAND)
[10.1982 - 09.1986] 1C,2C..CM2# |
90915-20003 |
— | ||
|
15609
|
15609
15677-64010 Bracket Sub-Assy, Oil Filter[10.1982 - 03.1983] 1C..CM2# |
15677-64010 |
US $80.08 |
||
|
15609
|
15609
15677-64030 Bracket Sub-Assy, Oil Filter[03.1983 - 08.1986] 1C,2C..CM2# |
15677-64030 |
US $78.62 |
||
|
15691
|
15691
15691-64011 Gasket, Oil Filter[10.1982 - 03.1983] 1C..CM2# |
15691-64011 |
US $11.94 |
||
| replacement | |||||
|
15691
|
15691
15691-64012 Gasket, Oil Filter[10.1982 - 03.1983] 1C..CM2# |
15691-64012 |
US $12.96 |
||
|
15691
|
15691
15691-64020 Gasket, Oil Filter[03.1983 - 08.1986] 1C,2C..CM2# |
15691-64020 |
US $6.26 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
