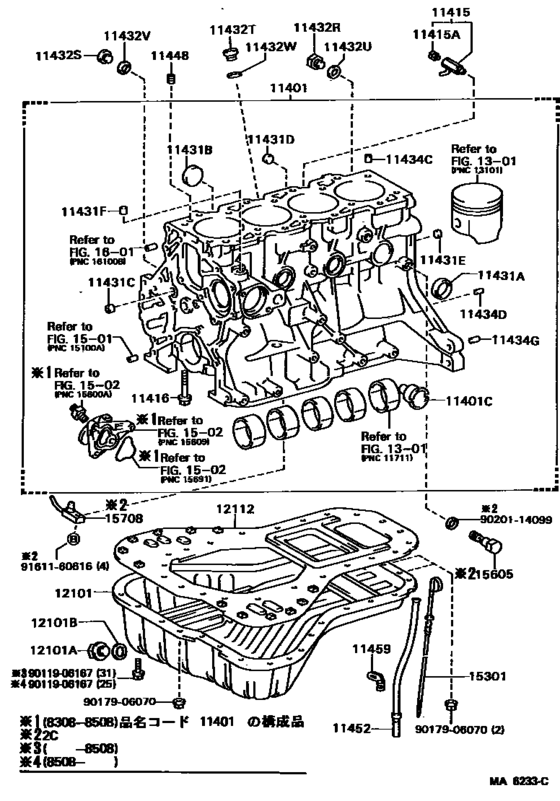

Cylinder Block ([10.1982 - ] (8210- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 08.1983
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V5D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69126 Block Sub-Assy, Cylinder[07.1983 - 05.1985] 1C..CM2# |
11401-69126 |
US $3,552.64 |
||
| replacement | |||||
|
11401
|
11401
11401-69127 Block Sub-Assy, Cylinder[07.1983 - 05.1985] 1C..CM2# |
11401-69127 |
US $3,931.20 |
||
|
11401
|
11401
11401-69127 Block Sub-Assy, Cylinder[05.1985 - 08.1986] 1C..CM20,25 |
11401-69127 |
US $3,931.20 |
||
|
11401C
|
11401C
16353-64010 Flange(For Water By-Pass)[10.1982 - 09.1986] 1C,2C..CM2# |
16353-64010 |
US $6.99 |
||
| replacement | |||||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[10.1982 - 09.1986] 1C,2C..CM2# |
16353-64011 |
US $6.12 |
||
|
11415
|
11415
90910-09075
Cock Sub-Assy, Water Drain(For Cylinder Block)
[10.1982 - 06.1984] 1C..CM2# |
90910-09075 |
— | ||
| replacement | |||||
|
11415
|
11415
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1982 - 06.1984] 1C..CM2# |
90910-09129 |
from US $6.63 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[06.1984 - 09.1986] 1C,2C..CM2# |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.1984 - 09.1986] 1C,2C..CM2# |
90345-52003 |
US $4.12 |
||
|
11415A
|
11415A
90109-10023 Plug, Water Drain Cock(For Cylinder Block)[10.1982 - 06.1984] 1C..CM2# |
90109-10023 |
US $4.95 |
||
| replacement | |||||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[10.1982 - 06.1984] 1C..CM2# |
90910-09087 |
from US $3.02 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[06.1984 - 09.1986] 1C,2C..CM2# |
90910-09087 |
from US $3.02 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[10.1982 - 09.1986] 1C,2C..CM2# *12-1.25PX80-24 |
90910-02061 |
US $4.12 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[10.1982 - 09.1986] 1C,2C..CM2# OD=35 |
96411-43500 |
from US $3.59 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[10.1982 - 09.1986] 1C,2C..CM2# OD=30 |
96411-43000 |
from US $3.67 |
||
|
11431C
|
11431C
96411-11800 Plug, Tight, No.3(For Cylinder Block)[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-11800 |
US $3.35 |
||
| replacement | |||||
|
11431C
|
11431C
96411-41800 Plug, Tight, No.1[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-41800 |
from US $1.66 |
||
|
11431D
|
11431D
96411-11800 Plug, Tight, No.3(For Cylinder Block)[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-11800 |
US $3.35 |
||
| replacement | |||||
|
11431D
|
11431D
96411-41800 Plug, Tight, No.1[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-41800 |
from US $1.66 |
||
|
11431E
|
11431E
96411-11800 Plug, Tight, No.3(For Cylinder Block)[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-11800 |
US $3.35 |
||
| replacement | |||||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[10.1982 - 09.1986] 1C,2C..CM2# OD=18 |
96411-41800 |
from US $1.66 |
||
|
11431F
|
11431F
90249-17002 Plug, Tight, No.6(For Cylinder Block)[07.1984 - 09.1986] 1C,2C..CM2# |
90249-17002 |
US $7.72 |
||
|
11431F
|
11431F
90331-17001 Plug, Tight, No.6(For Cylinder Block)[10.1982 - 07.1984] 1C..CM2# OD=16.8 |
90331-17001 |
US $7.72 |
||
| replacement | |||||
|
11431F
|
11431F
90249-17002 Plug, Tight, No.6(For Cylinder Block)[10.1982 - 07.1984] 1C..CM2# OD=16.8 |
90249-17002 |
US $7.72 |
||
|
11432R
|
11432R
90341-18006 Plug (No magnet)[10.1982 - 09.1986] 1C,2C..CM2# |
90341-18006 |
from US $3.23 |
||
|
11432S
|
11432S
90341-20002 Plug, W/head Taper Screw, No.1[10.1982 - 09.1986] 1C,2C..CM2# |
90341-20002 |
from US $3.02 |
||
|
11432T
|
11432T
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[10.1982 - 09.1986] 1C,2C..CM2# |
90341-22001 |
— | ||
|
11432U
|
11432U
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[10.1982 - 09.1986] 1C,2C..CM2# |
90430-18001 |
US $3.05 |
||
|
11432V
|
11432V
90430-20004 Gasket(For Cylinder Head Screw Plug)[10.1982 - 09.1986] 1C,2C..CM2# |
90430-20004 |
from US $0.96 |
||
|
11432W
|
11432W
90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)[10.1982 - 09.1986] 1C,2C..CM2# |
90430-22003 |
from US $0.98 |
||
|
11434C
|
11434C
90253-14001 Pin, Straight (For Cylinder Head Set)[10.1982 - 09.1986] 1C,2C..CM2# 長さ＝９，外径＝１４ |
90253-14001 |
US $2.62 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[10.1982 - 09.1986] 1C,2C..CM2# 長さ＝１１，外径＝６ |
90250-06068 |
from US $0.99 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[10.1982 - 09.1986] 1C,2C..CM2# |
90250-10113 |
from US $1.17 |
||
|
11448
|
11448
11448-54010 Orifice, Cylinder Block Oil[10.1982 - 09.1986] 1C,2C..CM2# |
11448-54010 |
US $6.12 |
||
| replacement | |||||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[10.1982 - 09.1986] 1C,2C..CM2# |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-64020 Guide, Oil Level Gage[10.1982 - 09.1986] 1C,2C..CM2# |
11452-64020 |
US $29.99 |
||
|
11459
|
11459
90929-01026 Support, Oil Level Gage Guide[10.1982 - 09.1986] 1C,2C..CM2# |
90929-01026 |
US $4.37 |
||
|
12101
|
12101
12101-64010 Pan Sub-Assy, Oil[10.1982 - 08.1985] 1C..CM2# |
12101-64010 |
US $302.85 |
||
|
12101
|
12101
12101-64060 Pan Sub-Assy, Oil[08.1985 - 09.1986] 1C,2C..CM2# |
12101-64060 |
US $262.08 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[10.1979 - 01.1985] 1C..CM2# *18-1.5PX12-10; 4KJ..KM2# *18-1.5PX12-10; 13TU..TM20 *18-1.5PX12-10; 1YJ,2YU..YM2# *18-1.5PX12-10 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[10.1979 - 01.1985] 1C..CM2# *18-1.5PX12-10; 4KJ..KM2# *18-1.5PX12-10; 13TU..TM20 *18-1.5PX12-10; 1YJ,2YU..YM2# *18-1.5PX12-10 |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18013
Gasket(For Oil Pan Drain Plug)
[05.1985 - 08.1985] 1C..CM2# |
90430-18013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[05.1985 - 08.1985] 1C..CM2# |
90430-18023 |
from US $1.03 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[10.1979 - 01.1985] 1C..CM2# ID=18; 4KJ..KM2# ID=18; 13TU..TM20 ID=18; 1YJ,2YU..YM2# ID=18 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[10.1979 - 01.1985] 1C..CM2# ID=18; 4KJ..KM2# ID=18; 13TU..TM20 ID=18; 1YJ,2YU..YM2# ID=18 |
90430-18023 |
from US $1.03 |
||
|
12112
|
12112
12112-64010 Pan, Oil No.2[10.1982 - 08.1985] 1C..CM2# |
12112-64010 |
US $179.09 |
||
|
12112
|
12112
12112-64030 Pan, Oil No.2[08.1985 - 09.1986] 1C,2C..CM2# |
12112-64030 |
US $152.88 |
||
|
15301
|
15301
15301-64020 Gage Sub-Assy, Oil Level[10.1982 - 09.1986] 1C,2C..CM2# |
15301-64020 |
US $15.29 |
||
| replacement | |||||
|
15301
|
15301
15301-64050 Gage Sub-Assy, Oil Level[10.1982 - 09.1986] 1C,2C..CM2# |
15301-64050 |
US $14.41 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.51 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.50 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
