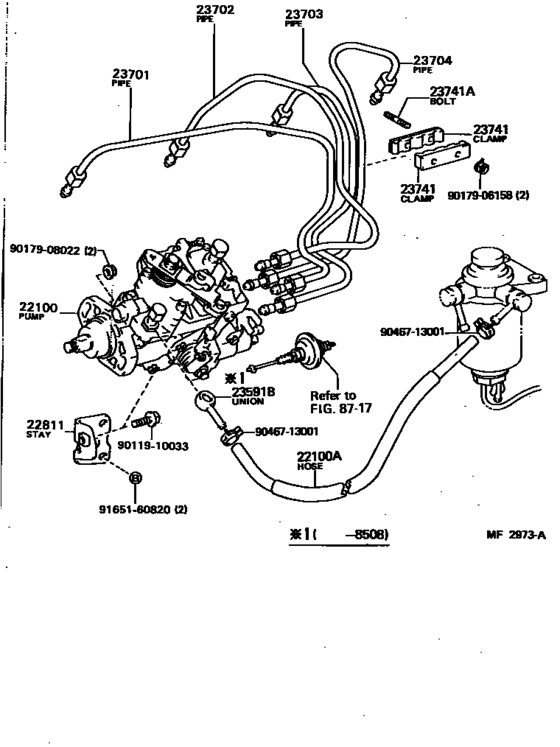

Injection Pump Assembly ([10.1982 - ] (8210- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 08.1983
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V5D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-64130
Pump Assy, Injection Or Supply
[10.1982 - 08.1985] 1C..CM2# |
22100-64130 |
— | ||
|
22100
|
22100
22100-64140 Pump Assy, Injection Or Supply[10.1982 - 01.1985] 1C..CM2# COLD SPEC |
22100-64140 |
US $4,600.96 |
||
| replacements | |||||
|
22100
|
22100
88031-12150
Actuator Set, Idle-Up
[10.1982 - 01.1985] 1C..CM2# COLD SPEC |
88031-12150 |
— | ||
|
22100
|
22100
22100-64130
Pump Assy, Injection Or Supply
[10.1982 - 01.1985] 1C..CM2# COLD SPEC |
22100-64130 |
— | ||
|
22100
|
22100
22100-6A170 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.1985 - 09.1986] 1C..CM20 |
22100-6A170 |
US $4,207.84 |
||
|
22100A
|
22100A
23271-64020
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.1982 - 08.1985] 1C..CM20..V,WG |
23271-64020 |
— | ||
|
22811
|
22811
22811-64010 Stay, Injection Pump, No.1[10.1982 - 09.1986] 1C,2C..CM2# |
22811-64010 |
US $12.23 |
||
|
23591B
|
23591B
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[01.1983 - 08.1985] 1C..CM2# |
90405-08016 |
— | ||
|
23701
|
23701
23701-64031 Pipe Sub-Assy, Injection, No.1[04.1983 - 08.1985] 1C..CM2# |
23701-64031 |
US $37.86 |
||
|
23701
|
23701
23701-64080 Pipe Sub-Assy, Injection, No.1[08.1985 - 09.1986] 1C,2C..CM2# |
23701-64080 |
US $34.36 |
||
| replacement | |||||
|
23701
|
23701
23701-64070
Pipe Sub-Assy, Injection, No.1
[08.1985 - 09.1986] 1C,2C..CM2# |
23701-64070 |
— | ||
|
23702
|
23702
23702-64031 Pipe Sub-Assy, Injection, No.2[04.1983 - 08.1985] 1C..CM2# |
23702-64031 |
US $37.86 |
||
|
23702
|
23702
23702-64080 Pipe Sub-Assy, Injection, No.2[08.1985 - 09.1986] 1C,2C..CM2# |
23702-64080 |
US $34.36 |
||
| replacement | |||||
|
23702
|
23702
23702-64070
Pipe Sub-Assy, Injection, No.2
[08.1985 - 09.1986] 1C,2C..CM2# |
23702-64070 |
— | ||
|
23703
|
23703
23703-64031
Pipe Sub-Assy, Injection, No.3
[04.1983 - 09.1986] 1C,2C..CM2# |
23703-64031 |
— | ||
|
23704
|
23704
23704-64031 Pipe Sub-Assy, Injection, No.4[04.1983 - 08.1985] 1C..CM2# |
23704-64031 |
US $37.86 |
||
|
23704
|
23704
23704-64080 Pipe Sub-Assy, Injection, No.4[08.1985 - 09.1986] 1C,2C..CM2# |
23704-64080 |
US $34.36 |
||
| replacement | |||||
|
23704
|
23704
23704-64070
Pipe Sub-Assy, Injection, No.4
[08.1985 - 09.1986] 1C,2C..CM2# |
23704-64070 |
— | ||
|
23741
|
23741
23741-64020
Clamp, Injection Pipe, No.1
[10.1982 - 09.1986] 1C,2C..CM2# |
23741-64020 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64021 Clamp, Injection Pipe, No.1[10.1982 - 09.1986] 1C,2C..CM2# |
23741-64021 |
US $12.72 |
||
|
23741A
|
23741A
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
[08.1985 - 09.1986] 1C,2C..CM2# |
90116-06275 |
— | ||
| replacement | |||||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[08.1985 - 09.1986] 1C,2C..CM2# |
90116-06095 |
US $1.61 |
||
|
23741A
|
23741A
92122-60622 Bolt, Stud(For Injection Pipe Clamp)[10.1982 - 08.1985] 1C..CM2# |
92122-60622 |
US $1.89 |
||
|
9011910033
|
9011910033
90119-10033 Bolt, No.1 (For Center Support Bearing) |
90119-10033 |
US $3.35 |
||
| replacement | |||||
|
9011910033
|
9011910033
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $4.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
