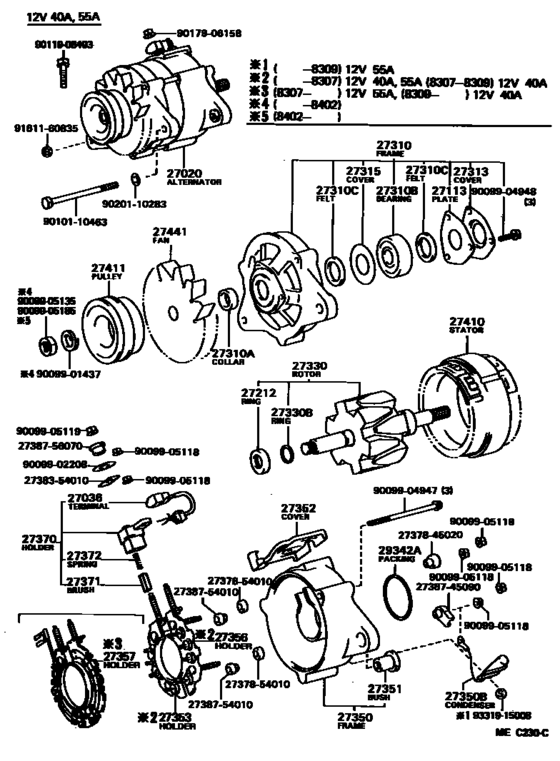

Alternator ([10.1982 - 08.1985] (8210-8508)1C) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- HRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-64050 Alternator Assy[10.1982 - 08.1985] 1C..CM2#..DLX 12V 40A |
27020-64050 |
US $848.85 |
||
|
27020
|
27020
27060-64020 Alternator Assy[08.1985 - 08.1986] 1C,2C..CM2# １２Ｖ ５５Ａ,12V 55A |
27060-64020 |
US $1,421.06 |
||
|
27036
|
27036
27036-54010
Terminal Sub-Assy, Lead Wire, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27036-54010 |
— | ||
|
27113
|
27113
27312-57060
Plate, Bearing Retainer, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27312-57060 |
— | ||
|
27113
|
27113
27312-64130
Plate, Bearing Retainer, Alternator
[08.1985 -] 1C,2C..CM2# 12V 55A |
27312-64130 |
— | ||
|
27212
|
27212
27333-57060
Ring, Space(For Alternator Rotor)
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27333-57060 |
— | ||
|
27310
|
27310
27310-64050
Frame Assy, Drive End, Alternator
[10.1982 - 08.1985] 1C..CM2#..DLX 12V 40A |
27310-64050 |
— | ||
|
27310
|
27310
27310-64140
Frame Assy, Drive End, Alternator
[08.1985 -] 1C,2C..CM2# 12V 55A |
27310-64140 |
— | ||
|
27310A
|
27310A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27412-57060 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-10137 |
US $12.58 |
||
|
27310B
|
27310B
90099-10165 Bearing(For Alternator Drive End Frame)[08.1985 -] 1C,2C..CM2# 12V 55A |
90099-10165 |
from US $8.74 |
||
|
27310C
|
27310C
90099-02209
Felt(For Alternator Drive End Frame)
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-02209 |
— | ||
|
27313
|
27313
27313-57060
Cover, Alternator Felt, Inner No.2
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27313-57060 |
— | ||
|
27315
|
27315
27315-57060
Cover, Alternator Felt, Inner No.1
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27315-57060 |
— | ||
|
27330
|
27330
27330-56140
Rotor Assy, Alternator
[10.1982 - 08.1985] 1C..CM2#..DLX 12V 40A |
27330-56140 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-54200
Rotor Assy, Alternator
[10.1982 - 08.1985] 1C..CM2#..DLX 12V 40A |
27330-54200 |
— | ||
|
27330
|
27330
27330-64140 Rotor Assy, Alternator[08.1985 -] 1C,2C..CM2# 12V 55A |
27330-64140 |
US $182.93 |
||
|
27330B
|
27330B
90099-07103
Ring, Snap(For Alternator Rotor)
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-07103 |
— | ||
|
27350
|
27350
27350-64050
Frame Assy, Rectifier End
[10.1982 - 08.1985] 1C..CM2#..DLX 12V 40A |
27350-64050 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035 Condenser, AlternatorRECTIFIER END [10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-52035 |
US $13.46 |
||
|
27351
|
27351
27351-64010
Bush(For Alternator Rectifier End Frame)
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27351-64010 |
— | ||
|
27352
|
27352
27388-64011
Cover, Frame Brush
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27388-64011 |
— | ||
| replacement | |||||
|
27352
|
27352
27388-54341
Cover, Alternator Brush
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27388-54341 |
— | ||
|
27353
|
27353
27353-54020
Holder, W/rectifier Positive, Alternator
[10.1982 - 09.1983] 1C..CM2#..DLX 12V 40A |
27353-54020 |
— | ||
| replacement | |||||
|
27353
|
27353
27353-54010
Holder, W/rectifier Positive, Alternator
[10.1982 - 09.1983] 1C..CM2#..DLX 12V 40A |
27353-54010 |
— | ||
|
27356
|
27356
27356-54020
Holder, W/rectifier Negative, Alternator
[10.1982 - 09.1983] 1C..CM2#..DLX 12V 40A |
27356-54020 |
— | ||
| replacement | |||||
|
27356
|
27356
27356-54010
Holder, W/rectifier Negative, Alternator
[10.1982 - 09.1983] 1C..CM2#..DLX 12V 40A |
27356-54010 |
— | ||
|
27357
|
27357
27357-54190
Holder, Alternator, W/rectifier
[09.1983 - 08.1985] 1C..CM2#..DLX 12V 40A |
27357-54190 |
— | ||
|
27357
|
27357
27357-63040
Holder, Alternator, W/rectifier
[08.1985 -] 1C,2C..CM2# 12V 55A |
27357-63040 |
— | ||
|
27370
|
27370
27370-16011
Holder Assy, Alternator Brush
[08.1985 -] 1C,2C..CM2# 12V 55A |
27370-16011 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[08.1985 -] 1C,2C..CM2# 12V 55A |
27370-58320 |
from US $15.25 |
||
|
27370
|
27370
27370-54010
Holder Assy, Alternator Brush
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27370-54010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-54250 Holder Assy, Alternator Brush[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27370-54250 |
from US $22.71 |
||
|
27371
|
27371
27371-56070
Brush, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27371-54412 |
from US $3.32 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1985 -] 1C,2C,1YJ..CM2#,YM25 12V 45A,55A |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1985 -] 1C,2C,1YJ..CM2#,YM25 12V 45A,55A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27372-56070 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1985 -] 1C,2C,1YJ..CM2#,YM25 12V 45A,55A |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1985 -] 1C,2C,1YJ..CM2#,YM25 12V 45A,55A |
27372-87501 |
— | ||
|
27410
|
27410
27410-54190
Stator Assy, Alternator
[09.1983 - 08.1985] 1C..CM2#..DLX 12V 40A |
27410-54190 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-54340 Stator Assy, Alternator[09.1983 - 08.1985] 1C..CM2#..DLX 12V 40A |
27410-54340 |
US $399.46 |
||
|
27410
|
27410
27410-57060
Stator Assy, Alternator
[10.1982 - 09.1983] 1C..CM2#..DLX 12V 40A |
27410-57060 |
— | ||
|
27411
|
27411
27411-64040
Pulley, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27411-64040 |
— | ||
|
27441
|
27441
27441-56090
Fan, Alternator
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
27441-56090 |
— | ||
|
29342A
|
29342A
29341-64130 Seal, Alternator Oil[08.1985 -] 1C,2C..CM2# 12V 55A |
29341-64130 |
from US $5.24 |
||
|
29342A
|
29342A
90099-14055
Packing, Vacuum Pump
[10.1982 - 08.1985] 1C..CM2# 12V 40A,55A |
90099-14055 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738354010
|
2738354010
27383-54010
Washer, Alternater Terminal Insulator, No.1
|
27383-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
9009901437
|
9009901437
90099-01437
New Genuine Part
|
90099-01437 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904947
|
9009904947
90099-04947
New Genuine Part
|
90099-04947 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905135
|
9009905135
90099-05135
New Genuine Part
|
90099-05135 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9010110463
|
9010110463
90101-10463 Bolt, Hexagon(For Air Pump Bracket Setting) |
90101-10463 |
US $3.64 |
||
|
9011908493
|
9011908493
90119-08493 BOLT |
90119-08493 |
from US $1.58 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
from US $0.78 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
