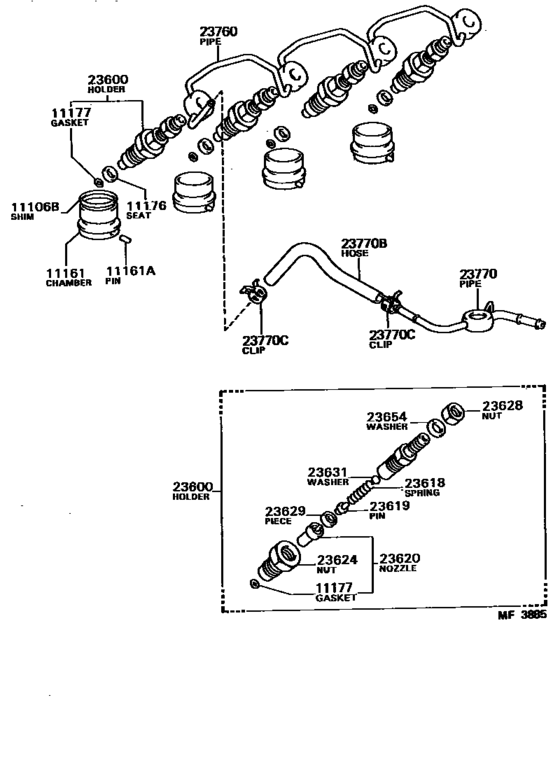

Injection Nozzle ([10.1986 - ] (8610- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- CM50
- grade
- DX
- body
- JL
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 10.1989
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11106B
|
11106B
11165-64010
Shim(For Combustion Chamber)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．０５ |
11165-64010 |
— | ||
| replacement | |||||
|
11106B
|
11106B
11165-64011
Shim(For Combustion Chamber)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．０５ |
11165-64011 |
— | ||
|
11106B
|
11106B
11166-64010 Shim(For Combustion Chamber)[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．１０ |
11166-64010 |
US $5.39 |
||
| replacement | |||||
|
11106B
|
11106B
11166-64011
Shim(For Combustion Chamber)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．１０ |
11166-64011 |
— | ||
|
11161
|
11161
11161-64040 Chamber, Combustion[10.1986 - 10.1989] 1C..CM50 |
11161-64040 |
US $164.53 |
||
|
11161A
|
11161A
90250-02046 Pin, Straight(For Combustion Chamber)[10.1986 - 10.1993] 1C,2C..CM5#,6# |
90250-02046 |
US $0.96 |
||
|
11176
|
11176
11176-64010 Seat, Injection Nozzle[10.1986 - 10.1993] 1C,2C..CM5#,6# |
11176-64010 |
from US $2.36 |
||
|
11177
|
11177
11177-64010 Gasket, Injection Nozzle Seat[10.1986 - 10.1993] 1C,2C..CM5#,6# |
11177-64010 |
from US $1.42 |
||
|
23600
|
23600
23600-69045 Holder & Nozzle Set, Nozzle[10.1986 - 08.1988] 1C,2C..CM5#,6# |
23600-69045 |
US $219.86 |
||
|
23618
|
23618
23618-64010
Spring, Nozzle Holder Pressure
[10.1986 - 05.1987] 1C,2C..CM5#,6# |
23618-64010 |
— | ||
|
23618
|
23618
23618-64020
Spring, Nozzle Holder Pressure
[05.1987 - 11.1987] 1C,2C..CM5#,6# |
23618-64020 |
— | ||
|
23619
|
23619
23619-64010 Pin, Nozzle Holder Pressure[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23619-64010 |
from US $1.12 |
||
|
23620
|
23620
23620-69035 Nozzle Assy[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23620-69035 |
US $49.80 |
||
|
23624
|
23624
23624-64040
Nut, Nozzle Retaining
[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23624-64040 |
— | ||
| replacement | |||||
|
23624
|
23624
23624-64041 Nut, Nozzle Retaining[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23624-64041 |
US $6.81 |
||
|
23628
|
23628
23628-64010 Nut(For Ring Packing Setting)[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23628-64010 |
US $1.40 |
||
|
23629
|
23629
23629-64010
Piece, Distance(For Nozzle)
[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23629-64010 |
— | ||
|
23631
|
23631
23631-64010 Washer(For Nozzle Holder Pressure Spring)[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．９００ |
23631-64010 |
from US $0.90 |
||
|
23631
|
23631
23631-64011
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．９２５ |
23631-64011 |
— | ||
|
23631
|
23631
23631-64012
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．９５０ |
23631-64012 |
— | ||
|
23631
|
23631
23631-64013
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝０．９７５ |
23631-64013 |
— | ||
|
23631
|
23631
23631-64014
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．０００ |
23631-64014 |
— | ||
|
23631
|
23631
23631-64015
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．０２５ |
23631-64015 |
— | ||
|
23631
|
23631
23631-64016
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．０５０ |
23631-64016 |
— | ||
|
23631
|
23631
23631-64017
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．０７５ |
23631-64017 |
— | ||
|
23631
|
23631
23631-64018
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．１００ |
23631-64018 |
— | ||
|
23631
|
23631
23631-64019
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．１２５ |
23631-64019 |
— | ||
|
23631
|
23631
23632-64010
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．１５０ |
23632-64010 |
— | ||
|
23631
|
23631
23632-64011
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．１７５ |
23632-64011 |
— | ||
|
23631
|
23631
23632-64012
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．２００ |
23632-64012 |
— | ||
|
23631
|
23631
23632-64013
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．２２５ |
23632-64013 |
— | ||
|
23631
|
23631
23632-64014
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．２５０ |
23632-64014 |
— | ||
|
23631
|
23631
23632-64015
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．２７５ |
23632-64015 |
— | ||
|
23631
|
23631
23632-64016
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．３００ |
23632-64016 |
— | ||
|
23631
|
23631
23632-64017
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．３２５ |
23632-64017 |
— | ||
|
23631
|
23631
23632-64018
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．３５０ |
23632-64018 |
— | ||
|
23631
|
23631
23632-64019
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．３７５ |
23632-64019 |
— | ||
|
23631
|
23631
23633-64010
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．４００ |
23633-64010 |
— | ||
|
23631
|
23631
23633-64011
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．４２５ |
23633-64011 |
— | ||
|
23631
|
23631
23633-64012
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．４５０ |
23633-64012 |
— | ||
|
23631
|
23631
23633-64013
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．４７５ |
23633-64013 |
— | ||
|
23631
|
23631
23633-64014
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．５００ |
23633-64014 |
— | ||
|
23631
|
23631
23633-64015
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．５２５ |
23633-64015 |
— | ||
|
23631
|
23631
23633-64016
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．５５０ |
23633-64016 |
— | ||
|
23631
|
23631
23633-64017
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．５７５ |
23633-64017 |
— | ||
|
23631
|
23631
23633-64018 Washer(For Nozzle Holder Pressure Spring)[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．６００ |
23633-64018 |
from US $0.90 |
||
|
23631
|
23631
23633-64019
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．６２５ |
23633-64019 |
— | ||
|
23631
|
23631
23634-64010
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．６５０ |
23634-64010 |
— | ||
|
23631
|
23631
23634-64011
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．６７５ |
23634-64011 |
— | ||
|
23631
|
23631
23634-64012
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．７００ |
23634-64012 |
— | ||
|
23631
|
23631
23634-64013
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．７２５ |
23634-64013 |
— | ||
|
23631
|
23631
23634-64014
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．７５０ |
23634-64014 |
— | ||
|
23631
|
23631
23634-64015
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．７７５ |
23634-64015 |
— | ||
|
23631
|
23631
23634-64016
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．８００ |
23634-64016 |
— | ||
|
23631
|
23631
23634-64017
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．８２５ |
23634-64017 |
— | ||
|
23631
|
23631
23634-64018
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．８５０ |
23634-64018 |
— | ||
|
23631
|
23631
23634-64019
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．８７５ |
23634-64019 |
— | ||
|
23631
|
23631
23635-64010
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．９００ |
23635-64010 |
— | ||
|
23631
|
23631
23635-64011
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．９２５ |
23635-64011 |
— | ||
|
23631
|
23631
23635-64012
Washer(For Nozzle Holder Pressure Spring)
[10.1986 - 11.1987] 1C,2C..CM5#,6# 厚さ＝１．９５０ |
23635-64012 |
— | ||
|
23654
|
23654
23654-64010 Washer(For Ring Packing)[10.1986 - 11.1987] 1C,2C..CM5#,6# |
23654-64010 |
from US $0.70 |
||
|
23760
|
23760
23761-64020
Pipe Assy, Nozzle Leakage
[10.1986 - 10.1993] 1C,2C..CM5#,6# |
23761-64020 |
— | ||
|
23770
|
23770
23764-64070
Pipe Assy, Nozzle Leakage, No.2
[10.1986 - 08.1988] 1C,2C..CM5#,6# |
23764-64070 |
— | ||
|
23770B
|
23770B
95333-04010 Hose, Fuel(For Lpg Regulator)[10.1986 - 10.1993] 1C,2C..CM5#,6# ＊Ｈ，Ｌ＝１００ |
95333-04010 |
US $2.51 |
||
|
23770C
|
23770C
90467-10049
Clamp Or Clip(For Fuel Hose Set)
[11.1987 - 10.1993] 1C,2C..CM5#,6# |
90467-10049 |
— | ||
| replacement | |||||
|
23770C
|
23770C
90467-10149 Clip, No.2(For Idle-Up Hose)[11.1987 - 10.1993] 1C,2C..CM5#,6# |
90467-10149 |
from US $2.42 |
||
|
23770C
|
23770C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[10.1986 - 11.1987] 1C,2C..CM5#,6# |
96132-30400 |
— | ||
| replacement | |||||
|
23770C
|
23770C
96132-51000 Clip Or Clamp(For Ventilation Hose)[10.1986 - 11.1987] 1C,2C..CM5#,6# |
96132-51000 |
from US $1.48 |
||
