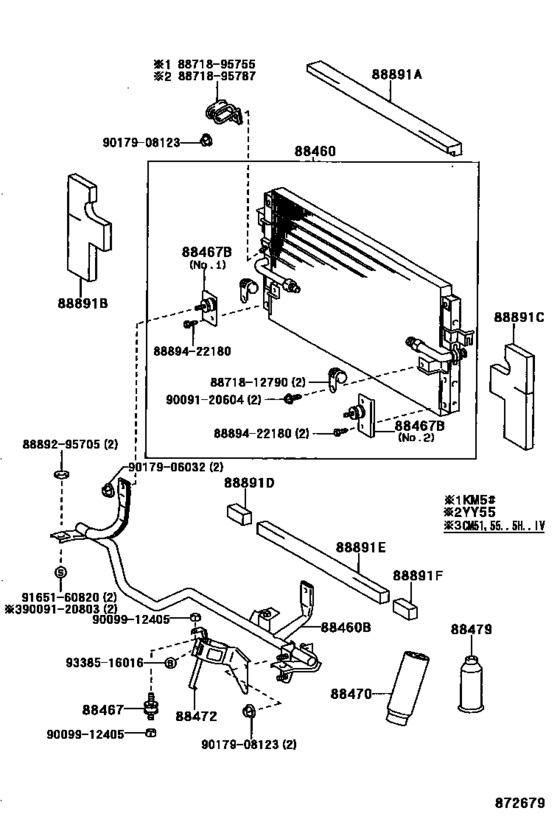

Heating & Air Conditioning - Cooler Piping ([10.1993 - ] (9310- )CM5#,KM51,YM55..4HC,5F,5H) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-27030 Condenser Assy, Cooler[10.1993 -] CM51,55,YM55 |
88460-27030 |
US $511.06 |
||
|
88460
|
88460
88460-95721 Condenser Assy, Cooler[10.1986 - 10.1993] CM50,51,55,YM55 |
88460-95721 |
US $439.71 |
||
|
88460B
|
88460B
88688-95746
Bracket, Cooler Condenser, No.1
[10.1986 -] CM5#,KM5#,YM55..4H,4HC,5F,5H |
88688-95746 |
— | ||
|
88467
|
88467
88467-14040 Cushion, Cooler Condenser, No.1[10.1989 - 08.1990] CM5#,KM51..4H,4HC,5F,5H |
88467-14040 |
from US $2.06 |
||
|
88467
|
88467
88467-95704 Cushion, Cooler Condenser, No.1[08.1990 - 10.1993] CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
88467-95704 |
US $3.72 |
||
|
88467B
|
88467B
88467-95702
Insulator, Cooler Condenser Mounting
[10.1986 - 11.1987] CM5#,KM5#,YM55 NO.1 |
88467-95702 |
— | ||
|
88467B
|
88467B
88467-95703
Insulator, Cooler Condenser Mounting
[10.1986 - 11.1987] CM5#,KM5#,YM55 NO.2 |
88467-95703 |
— | ||
|
88470
|
88470
88471-16010
Receiver & Dryer Assy, Cooler
[10.1986 - 10.1989] CM5#,KM5#,YM55 |
88471-16010 |
— | ||
|
88470
|
88470
88471-20050
Receiver & Dryer Assy, Cooler
[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88471-20050 |
— | ||
| replacement | |||||
|
88470
|
88470
88471-34010 Receiver & Dryer Assy, Cooler[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88471-34010 |
from US $47.25 |
||
|
88472
|
88472
88472-27030
Bracket, Receiver Tank, No.1
[10.1993 -] CM51,55,KM51,YM55..4HC,5F,5H |
88472-27030 |
— | ||
|
88472
|
88472
88472-95707
Bracket, Receiver Tank, No.1
[10.1986 - 10.1989] CM5#,KM5#,YM55 |
88472-95707 |
— | ||
| replacement | |||||
|
88472
|
88472
88472-95704
Bracket, Receiver Tank, No.1
[10.1986 - 10.1989] CM5#,KM5#,YM55 |
88472-95704 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 ４００Ｇ |
90986-02005 |
— | ||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H ２５０Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# ２５０Ｇ |
90986-02007 |
US $31.42 |
||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# ２００Ｇ |
90986-02008 |
US $25.20 |
||
|
88891A
|
88891A
53735-95700 Shutter Sub-Assy, Hot Air, Upper[10.1986 -] CM50,51,55,KM5#,YM55 |
53735-95700 |
US $27.66 |
||
|
88891B
|
88891B
88578-95711
Packing B (For Cooler)
[10.1986 -] CM50,51,55,KM5#,YM55 |
88578-95711 |
— | ||
|
88891C
|
88891C
88578-95712
Packing C (For Cooler)
[10.1986 -] CM50,51,55,KM5#,YM55 |
88578-95712 |
— | ||
|
88891D
|
88891D
53733-95701 Shutter Sub-Assy, Hot Air Side, A Rh[10.1986 -] CM50,51,55,KM5#,YM55 |
53733-95701 |
US $5.24 |
||
|
88891E
|
88891E
53737-95701 Shutter Sub-Assy, Hot Air, Lower[10.1986 -] CM50,51,55,KM5#,YM55 |
53737-95701 |
US $12.81 |
||
|
88891F
|
88891F
53733-95701 Shutter Sub-Assy, Hot Air Side, A Rh[10.1986 -] CM50,51,55,KM5#,YM55 |
53733-95701 |
US $5.24 |
||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8871895755
|
8871895755
88718-95755
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95755 |
— | ||
|
8871895787
|
8871895787
88718-95787
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95787 |
— | ||
|
8889295705
|
8889295705
88892-95705
Bracket, Cooler Evaporator Mounting
|
88892-95705 |
— | ||
|
8889422180
|
8889422180
88894-22180
New Genuine Part
|
88894-22180 |
— | ||
|
9009120604
|
9009120604
90091-20604
New Genuine Part
|
90091-20604 |
— | ||
|
9009120803
|
9009120803
90091-20803
New Genuine Part
|
90091-20803 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
