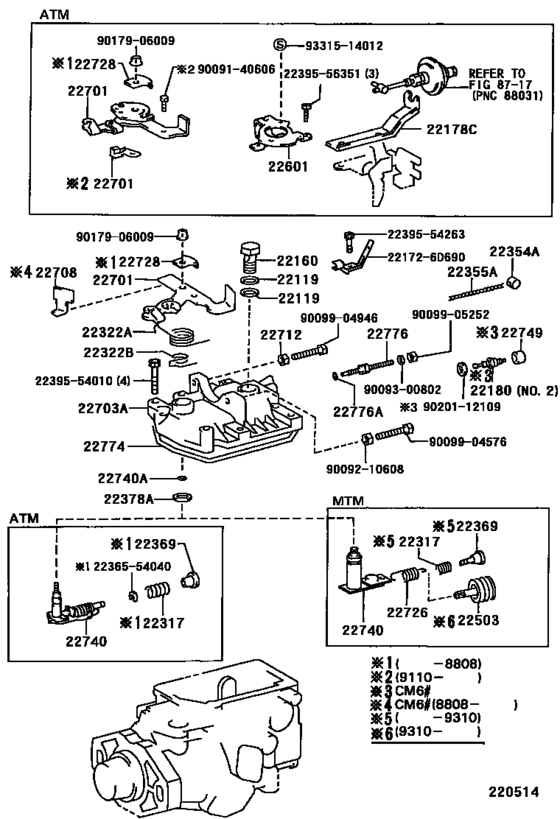

Injection Pump Body ([10.1986 - ] (8610- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1987 - 08.1988] 1C,2C..CM5#,6# |
90201-12109 |
from US $1.29 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[10.1986 - 10.1993] 1C,2C..CM5#,6# |
22160-64010 |
US $26.58 |
||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[10.1986 - 11.1987] 1C,2C..CM5#,6# NO.1 |
22180-54010 |
— | ||
|
22317
|
22317
22317-64010
Spring, Governor Domper
[10.1986 - 08.1988] 1C,2C..CM50,55..5H |
22317-64010 |
— | ||
|
22317
|
22317
22317-64030
Spring, Governor Domper
[08.1988 - 10.1993] 2C..CM51,52,55,6#..5H |
22317-64030 |
— | ||
|
22322A
|
22322A
22322-64130
Spring, Return
[10.1986 - 08.1988] 1C,2C..CM50,55,6#..5H |
22322-64130 |
— | ||
|
22322A
|
22322A
22322-6A490
Spring, Return
[08.1988 - 10.1993] 2C..CM51,52,55,6#..5H |
22322-6A490 |
— | ||
|
22322B
|
22322B
22322-64131
Spring, Return(Inner)
[10.1986 - 08.1988] 1C,2C..CM5#,6# |
22322-64131 |
— | ||
|
22322B
|
22322B
22322-6A221
Spring, Return(Inner)
[08.1988 - 10.1993] 2C..CM51,52,55,6# |
22322-6A221 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[10.1987 - 10.1993] 1C,2C..CM5#,6# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[10.1987 - 10.1993] 1C,2C..CM5#,6# |
22355-78030 |
from US $1.23 |
||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[10.1986 - 10.1993] 1C,2C..CM5#,6#..5H |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[10.1986 - 10.1993] 1C,2C..CM5#,6# |
22378-64010 |
from US $0.42 |
||
|
22503
|
22503
22503-6D500
Seat Sub-Assy, Governor, Spring
[10.1993 - 11.1996] 2C..CM65..TS;2C..CM5#,60,61..5H |
22503-6D500 |
— | ||
|
22701
|
22701
22701-6A190
Lever Sub-Assy, Adjusting
[10.1986 - 11.1987] 2C..CM55,6#..5H MARK"235" |
22701-6A190 |
— | ||
| replacement | |||||
|
22701
|
22701
22701-6A070
Lever Sub-Assy, Adjusting
[10.1986 - 11.1987] 2C..CM55,6#..5H MARK"235" |
22701-6A070 |
— | ||
|
22701
|
22701
22701-6A191
Lever Sub-Assy, Adjusting
[10.1986 - 11.1987] 2C..CM55,6#..5H MARK"236" |
22701-6A191 |
— | ||
| replacement | |||||
|
22701
|
22701
22701-6A071
Lever Sub-Assy, Adjusting
[10.1986 - 11.1987] 2C..CM55,6#..5H MARK"236" |
22701-6A071 |
— | ||
|
22701
|
22701
22701-6A640
Lever Sub-Assy, Adjusting
[08.1988 - 10.1993] 2C..CM51,52,55,6#..5H MARK"311" |
22701-6A640 |
— | ||
|
22701
|
22701
22701-6A641
Lever Sub-Assy, Adjusting
[08.1988 - 10.1991] 2C..CM51,55,6#..5H MARK"312" |
22701-6A641 |
— | ||
|
22701
|
22701
22701-6D350
Lever Sub-Assy, Adjusting
[10.1993 - 08.1994] 2C..CM65..TS;2C..CM5#,60,61 MARK"462" |
22701-6D350 |
— | ||
|
22701
|
22701
22701-6D351
Lever Sub-Assy, Adjusting
[10.1993 - 08.1994] 2C..CM65..TS;2C..CM5#,60,61 MARK"463" |
22701-6D351 |
— | ||
|
22701
|
22701
22701-6D500
Lever Sub-Assy, Adjusting
[06.1994 - 06.1999] 2C..CM51..5H..IV ﾚｲﾄｳｼﾔ,MARK"513"; 2C..CM55..5H..IV ﾚｲﾄｳｼﾔ OR ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ,MARK"513" |
22701-6D500 |
— | ||
|
22701
|
22701
22701-6D501
Lever Sub-Assy, Adjusting
[06.1994 - 06.1999] 2C..CM51..5H..IV ﾚｲﾄｳｼﾔ,MARK"514"; 2C..CM55..5H..IV ﾚｲﾄｳｼﾔ OR ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ,MARK"514" |
22701-6D501 |
— | ||
|
22703A
|
22703A
22703-54132
Cover Sub-Assy, Governor
[10.1986 -] 1C,2C..CM5#..5H |
22703-54132 |
— | ||
|
22712
|
22712
22775-77121
Nut, Rock
[10.1986 - 10.1993] 1C,2C..CM5#,6# |
22775-77121 |
— | ||
|
22726
|
22726
22726-54010
Spring, Speed Control
[08.1988 - 10.1993] 2C..CM51,52,55,6#..5H |
22726-54010 |
— | ||
|
22726
|
22726
22726-6A060
Spring, Speed Control
[10.1986 - 08.1988] 1C,2C..CM50,55,6#..5H |
22726-6A060 |
— | ||
|
22728
|
22728
22728-64010
Guide, Return Spring
[10.1986 - 08.1988] 1C,2C..CM5#,6# |
22728-64010 |
— | ||
|
22740
|
22740
22740-54320
Shaft Sub-Assy, Governor Adjusting
[10.1993 - 11.1996] 2C..CM65..TS;2C..CM5#,60,61..5H |
22740-54320 |
— | ||
|
22740
|
22740
22740-64010
Shaft Sub-Assy, Governor Adjusting
[10.1986 - 08.1988] 1C,2C..CM50,55,6#..5H |
22740-64010 |
— | ||
|
22740
|
22740
22740-64820
Shaft Sub-Assy, Governor Adjusting
[08.1988 - 10.1993] 2C..CM51,52,55,6#..5H |
22740-64820 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[12.1991 - 01.1992] 2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ |
22193-54770 |
from US $2.03 |
||
|
22740A
|
22740A
22193-6A220
Ring, O(For Governor Adjusting Shaft)
[10.1987 - 03.1988] 1C,2C..CM5#,6# |
22193-6A220 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[10.1987 - 03.1988] 1C,2C..CM5#,6# |
22193-54770 |
from US $2.03 |
||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[10.1986 - 10.1987] 1C,2C..CM5#,6# |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[10.1986 - 10.1987] 1C,2C..CM5#,6# |
22193-54770 |
from US $2.03 |
||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[10.1986 - 01.1992] 1C,2C..CM5#,6# |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[10.1986 - 01.1992] 1C,2C..CM5#,6# |
22774-54270 |
from US $3.14 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[12.1991 - 01.1992] 2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[10.1986 - 10.1993] 1C,2C..CM5#,6# |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[08.1996 - 11.1996] 2C..CM65..TS;2C..CM5#,60,61 |
22193-54771 |
US $1.31 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[10.1986 - 10.1993] 1C,2C..CM5#,6# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[10.1986 - 10.1993] 1C,2C..CM5#,6# |
22193-54771 |
US $1.31 |
||
|
221726D690
|
221726D690
22172-6D690
Clip, Connector Support, Solenoid
|
22172-6D690 |
— | ||
|
2236554040
|
2236554040
22365-54040
Ring, E(for Injection Pump Lever)
|
22365-54040 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554263
|
2239554263
22395-54263
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-54263 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
9009140606
|
9009140606
90091-40606
New Genuine Part
|
90091-40606 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009905252
|
9009905252
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.29 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
