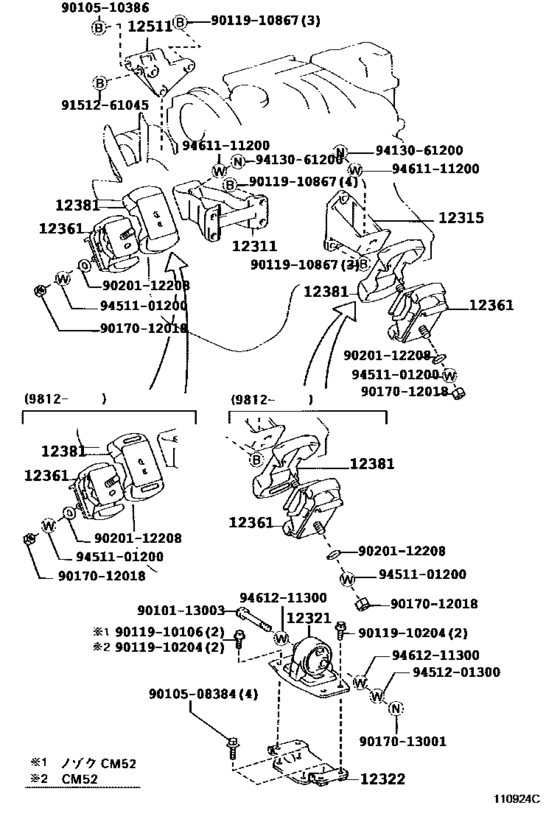

Mounting ([10.1986 - ] (8610- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-64060 Bracket, Engine Mounting, Front No.1 Rh[10.1986 - 10.1993] 1C,2C..CM5#,6# |
12311-64060 |
US $33.63 |
||
|
12315
|
12315
12315-64020 Bracket, Engine Mounting, Front No.1 Lh[10.1986 - 10.1993] 1C,2C..CM5#,6# |
12315-64020 |
US $69.60 |
||
| replacement | |||||
|
12315
|
12315
12315-64120 Bracket, Engine Mounting, Front No.1 Lh[10.1986 - 10.1993] 1C,2C..CM5#,6# |
12315-64120 |
US $66.39 |
||
|
12315
|
12315
12315-64120 Bracket, Engine Mounting, Front No.1 Lh[08.1996 - 11.1996] 2C..CM65..TS;2C..CM5#,60,61 |
12315-64120 |
US $66.39 |
||
|
12321
|
12321
12303-64060
Bracket, Engine Mounting, Rear, No.1
[10.1986 - 06.1999] 1C,2C..CM50,51,55 |
12303-64060 |
— | ||
|
12322
|
12322
12322-64010 Bracket, Engine Mounting, Rear No.2[10.1986 - 06.1999] 1C,2C..CM5#..5H |
12322-64010 |
US $33.63 |
||
|
12361
|
12361
12361-64022 Insulator, Engine Mounting, Front[10.1986 - 01.1993] 1C,2C..CM5#,6# |
12361-64022 |
US $88.82 |
||
| replacement | |||||
|
12361
|
12361
12361-64023 Insulator, Engine Mounting, Front[10.1986 - 01.1993] 1C,2C..CM5#,6# |
12361-64023 |
US $90.27 |
||
|
12361
|
12361
12361-64023 Insulator, Engine Mounting, Front[01.1993 - 10.1993] 2C..CM5#,6# |
12361-64023 |
US $90.27 |
||
|
12381
|
12381
12381-64010 Stabilizer, Engine Mounting[10.1986 - 05.1993] 1C,2C..CM5#,6# |
12381-64010 |
US $26.50 |
||
| replacement | |||||
|
12381
|
12381
12381-64110 Stabilizer, Engine Mounting[10.1986 - 05.1993] 1C,2C..CM5#,6# |
12381-64110 |
US $25.92 |
||
|
12381
|
12381
12381-64011 Stabilizer, Engine Mounting[05.1993 - 10.1993] 2C..CM5#,6# |
12381-64011 |
US $26.50 |
||
| replacement | |||||
|
12381
|
12381
12381-64110 Stabilizer, Engine Mounting[05.1993 - 10.1993] 2C..CM5#,6# |
12381-64110 |
US $25.92 |
||
|
12381
|
12381
12381-64110 Stabilizer, Engine Mounting[12.1998 - 06.1999] 2C..CM5#,6# |
12381-64110 |
US $25.92 |
||
|
12511
|
12511
12511-64030 Bracket, Alternator, No.1[10.1986 - 10.1993] 1C,2C..CM5#,6# |
12511-64030 |
US $64.36 |
||
|
12511
|
12511
12511-64050 Bracket, Alternator, No.1[10.1991 - 06.1992] 2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ |
12511-64050 |
US $116.48 |
||
| replacement | |||||
|
12511
|
12511
12511-64051 Bracket, Alternator, No.1[10.1991 - 06.1992] 2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ |
12511-64051 |
US $116.48 |
||
|
12511
|
12511
12511-64051 Bracket, Alternator, No.1[06.1992 - 10.1992] 2C..CM51,55..5H..IV ﾚｲﾄｳｼﾔ; 2C..CM51..SJL..CBU ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
12511-64051 |
US $116.48 |
||
|
12511
|
12511
12511-64080 Bracket, Alternator, No.1[10.1993 - 11.1996] 2C..CM65..TS;2C..CM5#,60,61 |
12511-64080 |
US $125.22 |
||
|
12511
|
12511
12511-64090 Bracket, Alternator, No.1[10.1993 - 04.1994] 2C..CM55..IV;2C..CM55..4HC;2C..CM51..JL..IV ﾚｲﾄｳｼﾔ; 2C..CM51..SJL..IV ﾚｲﾄｳｼﾔ OR ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
12511-64090 |
US $126.67 |
||
|
9010113003
|
9010113003
90101-13003 BOLTHEXAGON |
90101-13003 |
US $9.68 |
||
|
9010508384
|
9010508384
90105-08384 New Genuine Part |
90105-08384 |
US $1.75 |
||
|
9010510386
|
9010510386
90105-10386 Bolt(For Alternator) |
90105-10386 |
US $5.53 |
||
|
9011910106
|
9011910106
90119-10106 New Genuine Part |
90119-10106 |
US $4.12 |
||
|
9011910204
|
9011910204
90119-10204 Bolt, No.1 (For Center Support Bearing) |
90119-10204 |
US $3.40 |
||
|
9011910867
|
9011910867
90119-10867 BOLT WWASHER |
90119-10867 |
US $1.46 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.64 |
||
|
9017013001
|
9017013001
90170-13001 New Genuine Part |
90170-13001 |
US $2.33 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.29 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.51 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
|
9451201300
|
9451201300
94512-01300 Washer(For Rear Spring U Bolt) |
94512-01300 |
from US $0.60 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.87 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.70 |
||
