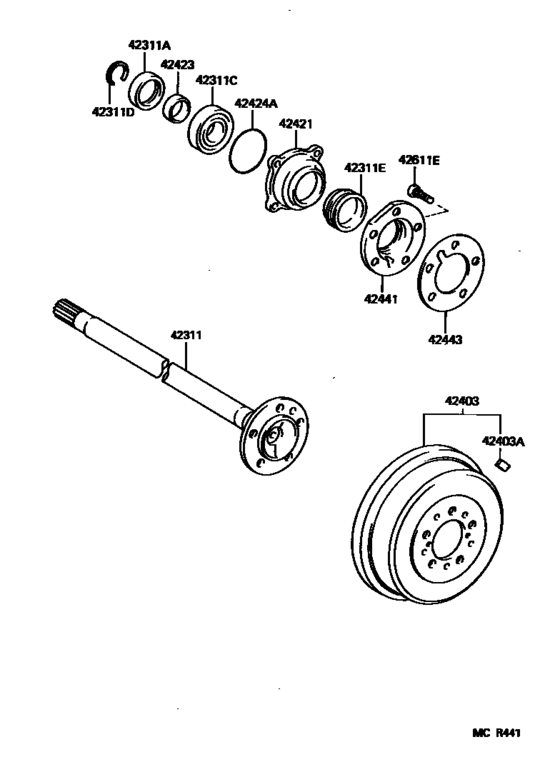

Rear Axle Shaft & Hub ([04.1994 - ] ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ (9404- )CM55,65) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311
|
42311
42311-22100 Shaft, Rear Axle[10.1986 - 06.1999] CM50,51,55,KM5#,YM55 |
42311-22100 |
US $276.06 |
||
|
42311
|
42311
42311-27050 Shaft, Rear Axle[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42311-27050 |
US $310.13 |
||
| replacements | |||||
|
42311
|
42311
42311-27100 Shaft, Rear Axle[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42311-27100 |
US $310.13 |
||
|
42311
|
42311
42421-35050 Case, Rear Axle Bearing[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42421-35050 |
from US $49.67 |
||
|
42311
|
42311
90313-54001 Seal, Oil (For Rear Axle Shaft Outer)[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90313-54001 |
from US $5.20 |
||
|
42311
|
42311
90363-40068 Bearing (For Axle Shaft)[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90363-40068 |
from US $42 |
||
|
42311A
|
42311A
90310-50001
Seal, Oil (For Rear Axle Shaft)
[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90310-50001 |
— | ||
| replacement | |||||
|
42311A
|
42311A
90310-50006 Seal, Oil (For Rear Axle Shaft)[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90310-50006 |
from US $6.27 |
||
|
42311A
|
42311A
90311-52059 Seal, Oil (For Rear Axle Shaft)[10.1986 - 10.1993] CM50,51,55,60,65,KM5#,YM55,6# |
90311-52059 |
from US $5.73 |
||
| replacement | |||||
|
42311A
|
42311A
90310-52001 Seal, Oil (For Rear Axle Shaft)[10.1986 - 10.1993] CM50,51,55,60,65,KM5#,YM55,6# |
90310-52001 |
from US $7.02 |
||
|
42311C
|
42311C
90363-40020 Bearing (For Rear Axle Shaft)[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90363-40020 |
from US $63.17 |
||
| replacement | |||||
|
42311C
|
42311C
90363-40020-77
Bearing (For Rear Axle Shaft)
[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90363-40020-77 |
— | ||
|
42311D
|
42311D
90520-36045 Ring, Snap (For Rear Axle Shaft)[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90520-36045 |
from US $1.35 |
||
|
42311E
|
42311E
90313-48001 Seal, Oil (For Rear Axle Shaft Outer)[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90313-48001 |
from US $5.56 |
||
|
42403
|
42403
42431-14061 Drum Sub-Assy, Rear Brake[10.1986 -] CM50,51,55,KM5#,YM55 |
42431-14061 |
US $190.40 |
||
|
42403
|
42403
42431-27110 Drum Sub-Assy, Rear Brake[04.1994 -] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42431-27110 |
US $171.81 |
||
| replacement | |||||
|
42403
|
42403
42431-27130 Drum Sub-Assy, Rear Brake[04.1994 -] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42431-27130 |
US $179.09 |
||
|
42403A
|
42403A
90937-01100 Piece, Balance (For Rear Brake Drum)[04.1994 -] CM55..5H..IV ４０．５Ｇ,ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90937-01100 |
US $1.14 |
||
|
42403A
|
42403A
90937-01117 Piece, Balance (For Rear Brake Drum)[04.1994 -] CM55..5H..IV １０Ｇ,ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90937-01117 |
US $1.14 |
||
|
42403A
|
42403A
90937-01118 Piece, Balance (For Rear Brake Drum)[04.1994 -] CM55..5H..IV ２０Ｇ,ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90937-01118 |
US $1.05 |
||
|
42403A
|
42403A
90937-01119 Piece, Balance (For Rear Brake Drum)[04.1994 -] CM55..5H..IV ３０Ｇ,ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90937-01119 |
US $1.05 |
||
|
42403A
|
42403A
90937-01287 Piece, Balance (For Rear Brake Drum)[10.1986 - 11.1987] CM5#,KM5#,YM55 １０Ｇ,10G |
90937-01287 |
US $2.48 |
||
|
42403A
|
42403A
90937-01288 Piece, Balance (For Rear Brake Drum)[10.1986 - 11.1987] CM5#,KM5#,YM55 ２０Ｇ,20G |
90937-01288 |
US $3.20 |
||
|
42403A
|
42403A
90937-01289 Piece, Balance (For Rear Brake Drum)[10.1986 - 11.1987] CM5#,KM5#,YM55 ３０Ｇ,30G |
90937-01289 |
US $4.22 |
||
|
42421
|
42421
42421-35030 Case, Rear Axle Bearing[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42421-35030 |
from US $50.43 |
||
|
42423
|
42423
42423-20010 Retainer, Rear Axle Bearing, Inner[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42423-20010 |
from US $13.51 |
||
|
42424A
|
42424A
90301-88077 Ring, O (For Rear Axle Bearing Case)[04.1994 - 11.1996] CM55..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90301-88077 |
from US $3.33 |
||
|
42441
|
42441
42441-26010 Deflector, Brake Drum Oil[04.1994 -] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42441-26010 |
from US $6.22 |
||
|
42443
|
42443
42443-30010 Gasket, Brake Drum Oil Deflector[04.1994 -] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
42443-30010 |
from US $1.35 |
||
|
42611E
|
42611E
90942-02047 Bolt, Hub[11.1987 - 06.1999] CM50,51,55,KM5#,YM55 |
90942-02047 |
from US $3.49 |
||
|
42611E
|
42611E
90942-02049 Bolt, Hub[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42611E
|
42611E
90942-02082 Bolt, Hub[04.1994 - 06.1999] CM55..5H..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
90942-02082 |
from US $2.32 |
||
