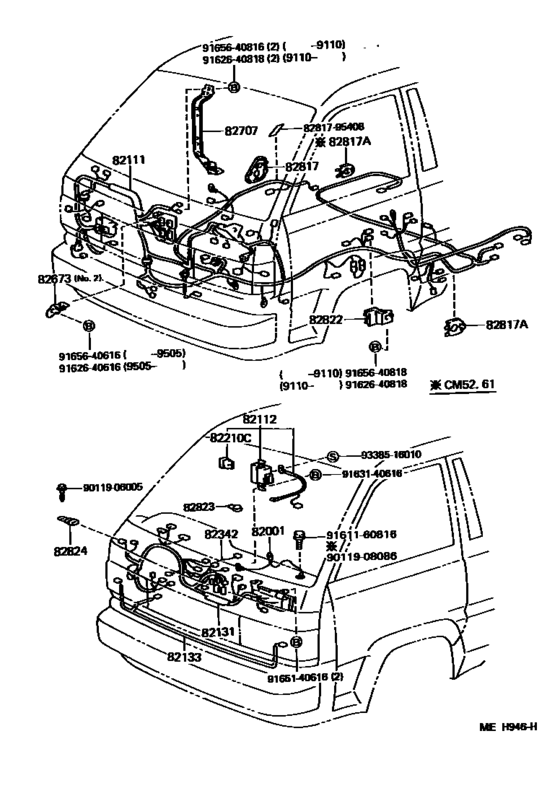

Wiring & Clamp ([10.1986 - ] (8610- )CM5#,6#) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07286 Cable, Bond, No.1[10.1986 - 10.1989] CM5#,6# |
90980-07286 |
US $10.77 |
||
| replacement | |||||
|
82001
|
82001
90980-07323 Cable, Bond, No.1[10.1986 - 10.1989] CM5#,6# |
90980-07323 |
US $10.63 |
||
|
82001
|
82001
90980-07323 Cable, Bond, No.1[10.1989 - 10.1993] CM5#,6# |
90980-07323 |
US $10.63 |
||
|
82111
|
82111
82111-27170 Wire, Engine Room Main[10.1991 - 10.1993] CM51,55..(JL,SJL)..5H |
82111-27170 |
US $1,308.94 |
||
|
82111
|
82111
82111-27171 Wire, Engine Room Main[10.1993 - 08.1995] CM51,55..(JL,SJL)..5H |
82111-27171 |
US $1,246.34 |
||
|
82111
|
82111
82111-27172 Wire, Engine Room Main[08.1995 - 11.1996] CM51,55..(JL,SJL)..5H |
82111-27172 |
US $1,249.25 |
||
|
82111
|
82111
82111-27173 Wire, Engine Room Main[11.1996 -] CM51,55..(JL,SJL)..5H |
82111-27173 |
US $1,250.70 |
||
|
82111
|
82111
82111-27180 Wire, Engine Room Main[10.1991 - 10.1993] CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82111-27180 |
US $1,308.94 |
||
|
82111
|
82111
82111-27181 Wire, Engine Room Main[10.1993 - 08.1995] CM51..JL..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ; CM51,55..SJL..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ |
82111-27181 |
US $1,246.34 |
||
|
82111
|
82111
82111-27182 Wire, Engine Room Main[08.1995 - 11.1996] CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82111-27182 |
US $1,249.25 |
||
|
82111
|
82111
82111-27183 Wire, Engine Room Main[11.1996 -] CM51,55..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82111-27183 |
US $1,250.70 |
||
|
82111
|
82111
82111-95G27 Wire, Engine Room Main[10.1986 - 08.1987] CM50,55..5H ALTERNATOR:12V 55A |
82111-95G27 |
US $1,172.08 |
||
|
82111
|
82111
82111-95G81 Wire, Engine Room Main[10.1986 - 08.1987] CM50,55..IV ｵﾙﾀﾈ-ﾀ 12V 70A |
82111-95G81 |
US $1,172.08 |
||
|
82111
|
82111
82111-95T85 Wire, Engine Room Main[01.1989 - 10.1989] CM50,55..5H ｵﾙﾀﾈｰﾀ 12V 55A |
82111-95T85 |
US $1,311.86 |
||
|
82111
|
82111
82111-95T88 Wire, Engine Room Main[01.1989 - 10.1989] CM55..IV; CM50..IV ｵﾙﾀﾈ-ﾀ 12V 70A |
82111-95T88 |
US $1,311.86 |
||
|
82111
|
82111
82115-95755 Wire, Engine Room Main[08.1987 - 11.1987] CM50,55..5H ｵﾙﾀﾈｰﾀ 12V 55A |
82115-95755 |
US $1,311.86 |
||
|
82111
|
82111
82115-95758 Wire, Engine Room Main[08.1987 - 11.1987] CM50,55..IV ｵﾙﾀﾈ-ﾀ 12V 70A |
82115-95758 |
US $1,311.86 |
||
|
82111
|
82111
82115-95781 Wire, Engine Room Main[10.1989 - 10.1991] CM5#..(JL,SJL)..5H |
82115-95781 |
US $1,319.14 |
||
|
82111
|
82111
82115-95782 Wire, Engine Room Main[10.1989 - 10.1991] CM5#..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82115-95782 |
US $1,319.14 |
||
|
82112
|
82112
82112-27020 Wire, Engine Room, No.2[10.1991 - 10.1993] CM5#,6# |
82112-27020 |
US $298.48 |
||
|
82112
|
82112
82112-27021 Wire, Engine Room, No.2[10.1993 - 08.1995] CM65..TS;CM5#,60,61 |
82112-27021 |
US $66.98 |
||
|
82112
|
82112
82112-27022 Wire, Engine Room, No.2[08.1995 - 11.1996] CM65..TS;CM5#,60,61 |
82112-27022 |
US $67.56 |
||
|
82112
|
82112
82112-27040 Wire, Engine Room, No.2[10.1991 - 10.1993] CM51,52..5H..IV;CM55,65..(JL,SJL)..TS..5H TECS |
82112-27040 |
US $298.48 |
||
|
82112
|
82112
82112-27041 Wire, Engine Room, No.2[10.1993 - 04.1994] CM51,55..SJL..IV ｺｳｼﾖ ｻｷﾞﾖｳｼﾔ; CM65..TS;CM51,52..JL..IV;CM55..SJL..TS..CBU TECS |
82112-27041 |
US $66.98 |
||
|
82112
|
82112
82112-27042 Wire, Engine Room, No.2[08.1995 - 11.1996] CM51,52..IV;CM55,65..(JL,SJL)..TS TECS |
82112-27042 |
US $67.56 |
||
|
82112
|
82112
82112-95708 Wire, Engine Room, No.2[10.1986 - 11.1987] CM5#,6# ｵﾙﾀﾈｰﾀ 12V 55A |
82112-95708 |
US $550.37 |
||
|
82112
|
82112
82112-95711 Wire, Engine Room, No.2[10.1986 - 11.1987] CM50,55,65..IV ｵﾙﾀﾈ-ﾀ 12V 70A |
82112-95711 |
US $550.37 |
||
|
82131
|
82131
82131-27170 Wire, Cowl[10.1991 - 08.1995] CM51,55 |
82131-27170 |
US $356.72 |
||
|
82131
|
82131
82131-27171 Wire, Cowl[08.1995 - 11.1996] CM51,55 |
82131-27171 |
US $339.25 |
||
|
82131
|
82131
82131-27190 Wire, Cowl[10.1991 - 08.1995] CM51..5H..IV;CM55,65..(JL,SJL)..TS..5H ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82131-27190 |
US $356.72 |
||
|
82131
|
82131
82131-27191 Wire, Cowl[08.1995 - 11.1996] CM51..5H..IV;CM55,65..(JL,SJL)..TS..5H ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82131-27191 |
US $339.25 |
||
|
82131
|
82131
82131-95753 Wire, Cowl[10.1986 - 11.1987] CM5# ｱﾘ(ｸﾛﾂｸ);ｵﾙﾀﾈｰﾀ 12V 55A |
82131-95753 |
US $451.36 |
||
|
82131
|
82131
82131-95754 Wire, Cowl[10.1986 - 11.1987] CM5# ALTERNATOR:12V 55A |
82131-95754 |
US $451.36 |
||
|
82131
|
82131
82131-95G18 Wire, Cowl[10.1986 - 11.1987] CM50,55,65..IV ｵﾙﾀﾈ-ﾀ 12V 70A |
82131-95G18 |
US $451.36 |
||
|
82131
|
82131
82131-95G26 Wire, Cowl[10.1986 - 11.1987] CM50,55,65..IV ｱﾘ(ｸﾛﾂｸ);ｵﾙﾀﾈ-ﾀ 12V 70A |
82131-95G26 |
US $451.36 |
||
|
82131
|
82131
82131-95T69 Wire, Cowl[10.1989 - 10.1991] CM5# ｵﾙﾀﾈｰﾀ 12V 55A |
82131-95T69 |
US $451.36 |
||
|
82131
|
82131
82131-95T70 Wire, Cowl[10.1989 - 10.1991] CM5# ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ;ｵﾙﾀﾈ-ﾀ 12V 70A |
82131-95T70 |
US $451.36 |
||
|
82131
|
82131
82131-95T73 Wire, Cowl[10.1989 - 10.1991] CM5#,65..5H..IV ﾚｲﾄｳｼﾔ ｼﾘ-ｽﾞ |
82131-95T73 |
US $451.36 |
||
|
82131
|
82131
82131-95T74 Wire, Cowl[10.1989 - 10.1991] CM51..JL..5H..IV ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ; CM55,65..IV;CM51..SJL..IV ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ;ｵﾙﾀﾈｰﾀ 12V 55A |
82131-95T74 |
US $586.77 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 ３０Ａ，メス端子,30A |
90982-08188 |
from US $4.17 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 ４０Ａ，メス端子,40A |
90982-08189 |
US $7.88 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[10.1986 - 11.1987] CM5#,6#,YM55,60 ６０Ａ，オス端子,60A |
90982-08202 |
US $12.54 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[10.1986 - 11.1987] CM5#,6# ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.23 |
||
|
82210C
|
82210C
90982-08228 Fusible Link[10.1986 -] CM5#,6#,KM5#,YM55,6# ５０Ａ，オス端子 |
90982-08228 |
US $10.39 |
||
|
82342
|
82342
82304-95701 Wire, Clock[01.1987 - 11.1987] CM5#,6#,KM5#,YM55,60..DX |
82304-95701 |
US $37.13 |
||
|
82707
|
82707
82701-95700 Support Sub-Assy, Wiring Harness[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
82701-95700 |
US $31.89 |
||
|
82817
|
82817
82817-95703 Protector, Wiring Harness, No.1[10.1986 - 10.1991] CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
82817-95703 |
US $9.90 |
||
|
82817A
|
82817A
82817-95712 Protector, Wiring Harness, No.2[10.1986 - 10.1991] CM60..GUT,TS;CM5#,65,KM5#,YM55,6# |
82817-95712 |
US $5.53 |
||
|
82822
|
82822
82822-27020 Bracket,connector Block[10.1991 - 10.1993] CM5#,6# |
82822-27020 |
US $14.71 |
||
|
82822
|
82822
82822-27030 Bracket,connector Block[08.1995 - 11.1996] CM65..TS;CM5#,60,61 |
82822-27030 |
US $18.93 |
||
|
82822
|
82822
82822-95700 Bracket,connector Block[10.1986 - 10.1991] CM5#,65;CM60..GUT,TS |
82822-95700 |
US $9.17 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[08.1995 - 11.1996] CM65..TS;CM5#,60,61 |
82823-22050 |
US $6.99 |
||
|
82824
|
82824
82824-12100 Connector, Wiring Harness[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
82824-12100 |
US $8.15 |
||
|
8281795408
|
8281795408
82817-95408
Protector, Wiring Harness, No.1
|
82817-95408 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9162640818
|
9162640818
91626-40818
New Genuine Part
|
91626-40818 |
— | ||
| replacement | |||||
|
9162640818
|
9162640818
91621-40816 BOLTWWASHER |
91621-40816 |
from US $0.99 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.97 |
||
