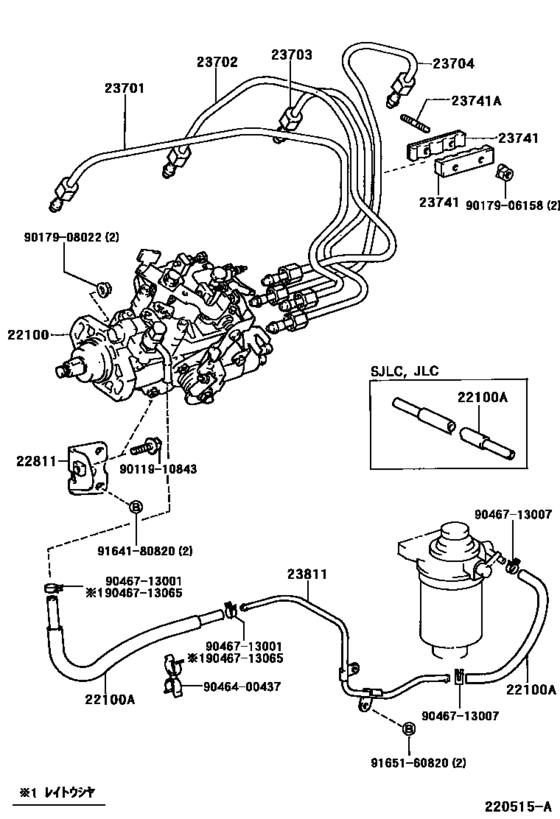

Injection Pump Assembly ([10.1986 - ] (8610- )1C,2C) Diagram Toyota LITE/ TOWNACE
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- LITE/TOWNACE TRUCK
- From
- 11.1996
- To
- 06.1999
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-6D520 Pump Assy, Injection Or Supply[10.1993 -] 2C..CM51,55..4HC |
22100-6D520 |
US $3,989.44 |
||
|
22100
|
22100
22100-6D550 Pump Assy, Injection Or Supply[11.1996 -] 2C..CM51,55..4HC..IV ﾚｲﾄｳｼﾔ |
22100-6D550 |
US $4,120.48 |
||
|
22100
|
22100
22100-6D691 Pump Assy, Injection Or Supply[08.1995 -] 2C..CM51,55..4HC *98 |
22100-6D691 |
US $4,295.20 |
||
|
22100
|
22100
22100-6D880 Pump Assy, Injection Or Supply[11.1996 -] 2C..CM51,55..4HC..IV *98 & ﾚｲﾄｳｼﾔ |
22100-6D880 |
US $4,295.20 |
||
|
22100A
|
22100A
23271-64090 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[11.1996 - 06.1999] 2C..CM5#,6#..JL,SJL,T1 長さ＝４００,FILTER TO PIPE |
23271-64090 |
US $34.80 |
||
|
22100A
|
22100A
90447-14011 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[11.1996 - 06.1999] 2C..CM5#,6# 長さ＝４４０,PIPE TO PUMP |
90447-14011 |
US $17.18 |
||
|
22811
|
22811
22811-64020 Stay, Injection Pump, No.1[11.1996 -] 2C..CM5#,6# |
22811-64020 |
US $22.71 |
||
|
23701
|
23701
23701-64130 Pipe Sub-Assy, Injection, No.1[11.1996 -] 2C..CM5#,6# |
23701-64130 |
US $32.32 |
||
|
23702
|
23702
23702-64130 Pipe Sub-Assy, Injection, No.2[11.1996 -] 2C..CM5#,6# |
23702-64130 |
US $32.32 |
||
|
23703
|
23703
23703-64110 Pipe Sub-Assy, Injection, No.3[11.1996 -] 2C..CM5#,6# |
23703-64110 |
US $32.32 |
||
|
23704
|
23704
23704-64130 Pipe Sub-Assy, Injection, No.4[11.1996 -] 2C..CM5#,6# |
23704-64130 |
US $32.32 |
||
|
23741
|
23741
23741-64020
Clamp, Injection Pipe, No.1
[11.1996 -] 2C..CM5#,6# |
23741-64020 |
— | ||
| replacement | |||||
|
23741
|
23741
23741-64021 Clamp, Injection Pipe, No.1[11.1996 -] 2C..CM5#,6# |
23741-64021 |
US $12.72 |
||
|
23741A
|
23741A
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
[11.1996 -] 2C..CM5#,6# |
90116-06275 |
— | ||
| replacement | |||||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[11.1996 -] 2C..CM5#,6# |
90116-06095 |
US $1.61 |
||
|
23811
|
23811
23811-64032 Pipe, Fuel(For Fuel Filter To Injection Pump)[11.1996 -] 2C..CM5#,6# |
23811-64032 |
US $43.53 |
||
|
9011910843
|
9011910843
90119-10843 BOLT WWASHER |
90119-10843 |
from US $1.29 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.52 |
||
|
9046400437
|
9046400437
90464-00437
New Genuine Part
|
90464-00437 |
— | ||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9046713065
|
9046713065
90467-13065 Clip(For Fuel Pipe Support) |
90467-13065 |
US $3.20 |
||
| replacement | |||||
|
9046713065
|
9046713065
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9164180820
|
9164180820
91641-80820 Bolt(For Transaxle & Engine Setting) |
91641-80820 |
US $1.75 |
||
| replacement | |||||
|
9164180820
|
9164180820
91641-H0820 Bolt |
91641-H0820 |
from US $0.82 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
