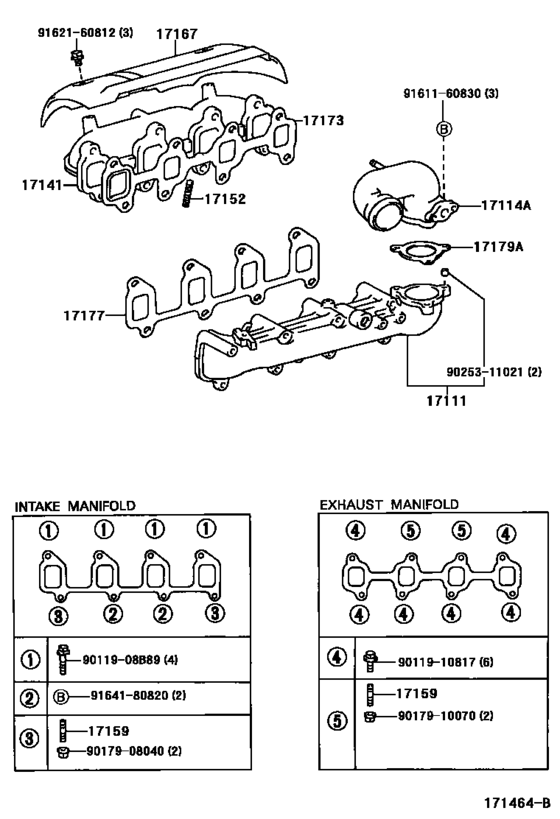

Manifold ([08.1995 - ] W/EGR (9508- )2C..CM51,55..4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- LITE/TOWNACE TRUCK
- From
- 11.1996
- To
- 06.1999
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-64081 Manifold, Intake[11.1996 -] 2C..CM5#,6# |
17101-64081 |
US $247.52 |
||
|
17111
|
17111
17101-64091
Manifold, Intake
[08.1995 - 10.1998] 2C..CM51,55..4HC ｱﾘ(EGR) |
17101-64091 |
— | ||
| replacement | |||||
|
17111
|
17111
17101-64092
Manifold, Intake
[08.1995 - 10.1998] 2C..CM51,55..4HC ｱﾘ(EGR) |
17101-64092 |
— | ||
|
17111
|
17111
17101-64092
Manifold, Intake
[10.1998 -] 2C..CM51,55..4HC ｱﾘ(EGR) |
17101-64092 |
— | ||
|
17114A
|
17114A
17114-64020 Flange, Intake[08.1995 -] 2C..CM51,55..4HC |
17114-64020 |
US $155.79 |
||
|
17141
|
17141
17141-64012 Manifold, Exhaust[11.1996 -] 2C..CM5#,6# |
17141-64012 |
US $272.27 |
||
|
17141
|
17141
17141-64230 Manifold, Exhaust[08.1995 -] 2C..CM51,55..4HC ｱﾘ(EGR) |
17141-64230 |
US $291.20 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[11.1996 -] 2C..CM5#,6# |
90116-10146 |
from US $1.81 |
||
|
17159
|
17159
90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)[11.1996 -] 2C..CM5#,6# EXHAHST SIDE |
90126-10017 |
US $7.71 |
||
|
17159
|
17159
92122-60820 Bolt, Stud(For Water Outlet)[11.1996 -] 2C..CM5#,6# INTAKE SIDE |
92122-60820 |
US $2.62 |
||
|
17167
|
17167
17167-64100 Insulator, Exhaust Manifold Heat, No.1[11.1996 -] 2C..CM5#,6# |
17167-64100 |
US $44.70 |
||
|
17173
|
17173
17173-64060 Gasket, Exhaust Manifold To Head[11.1996 -] 2C..CM5#,6# |
17173-64060 |
from US $16.44 |
||
|
17177
|
17177
17177-64020 Gasket, Intake Manifold To Head, No.1[11.1996 -] 2C..CM5#,6# |
17177-64020 |
from US $4.54 |
||
|
17179A
|
17179A
17179-64040 Gasket, Intake Manifold, No.2[08.1995 -] 2C..CM51,55..4HC |
17179-64040 |
from US $2.63 |
||
|
9011908B89
|
9011908B89
90119-08B89 New Genuine Part |
90119-08B89 |
US $1.46 |
||
|
9011910817
|
9011910817
90119-10817 New Genuine Part |
90119-10817 |
US $3.94 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.44 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.44 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9164180820
|
9164180820
91641-80820 Bolt(For Transaxle & Engine Setting) |
91641-80820 |
US $1.75 |
||
| replacement | |||||
|
9164180820
|
9164180820
91641-H0820 Bolt |
91641-H0820 |
from US $0.82 |
||
