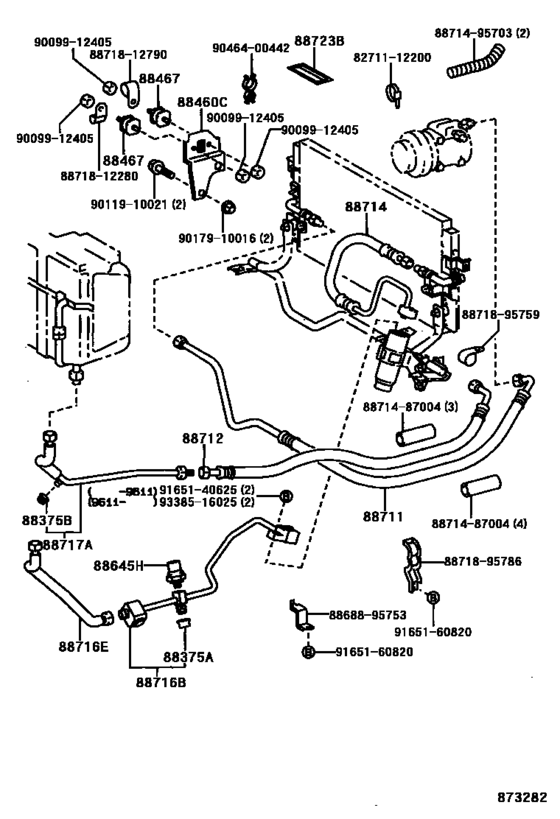

Heating & Air Conditioning - Cooler Piping ([10.1993 - ] (9310- )CM5#) Diagram Toyota LITE/ TOWNACE
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJLC
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1989
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88375-30290 |
from US $0.88 |
||
|
88460C
|
88460C
88688-95788
Bracket, Cooler Condenser, No.2
[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
88688-95788 |
— | ||
|
88467
|
88467
88467-14040 Cushion, Cooler Condenser, No.1[10.1989 - 08.1990] CM5#,KM51..4H,4HC,5F,5H |
88467-14040 |
from US $2.06 |
||
|
88645H
|
88645H
88645-12020 Switch, Pressure[10.1989 - 10.1993] CM51,55,KM5#..4H,4HC,5F,5H |
88645-12020 |
US $27.61 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88645-04040 |
US $120.41 |
||
|
88711
|
88711
88711-27080 Hose, Cooler Refrigerant Discharge, No.1[10.1993 - 06.1999] CM51,55 |
88711-27080 |
US $232.96 |
||
|
88711
|
88711
88711-95734 Hose, Cooler Refrigerant Discharge, No.1[10.1986 - 10.1993] CM50,51,55 |
88711-95734 |
US $272.27 |
||
|
88712
|
88712
88712-27050 Hose, Cooler Refrigerant Suction, No.1[10.1993 - 06.1999] CM51,55 |
88712-27050 |
US $198.02 |
||
|
88712
|
88712
88712-95728 Hose, Cooler Refrigerant Suction, No.1[10.1986 - 10.1993] CM50,51,55 |
88712-95728 |
US $187.82 |
||
|
88714
|
88714
88721-27040 Hose, Cooler Refrigerant Liquid, No.1[10.1993 - 06.1999] CM51,55,KM51,YM55..4HC,5F,5H |
88721-27040 |
US $145.60 |
||
|
88714
|
88714
88721-95709 Hose, Cooler Refrigerant Liquid, No.1[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H |
88721-95709 |
US $115.02 |
||
| replacement | |||||
|
88714
|
88714
88721-27060 Hose, Cooler Refrigerant Liquid, No.1[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H |
88721-27060 |
US $58.82 |
||
|
88716B
|
88716B
88716-27080 Pipe, Cooler Refrigerant Liquid, B[10.1993 - 06.1999] CM51,55,KM51,YM55 |
88716-27080 |
US $51.25 |
||
|
88716B
|
88716B
88716-95760 Pipe, Cooler Refrigerant Liquid, B[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H |
88716-95760 |
US $49.65 |
||
| replacement | |||||
|
88716B
|
88716B
88710-95700 Tube Assy, Air Conditioner[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H |
88710-95700 |
US $96.10 |
||
|
88716E
|
88716E
88716-27100 Pipe, Cooler Refrigerant Liquid, E[10.1993 -] CM51,55,KM51,YM55 |
88716-27100 |
US $26.79 |
||
|
88716E
|
88716E
88716-95759 Pipe, Cooler Refrigerant Liquid, E[10.1989 - 10.1993] CM51,55,KM5#,YM55..4H,4HC,5F,5H |
88716-95759 |
US $51.11 |
||
|
88717A
|
88717A
88717-27030 Pipe, Cooler Refrigerant Suction, A[10.1993 - 11.1996] CM65..TS;CM5#,60,61 |
88717-27030 |
US $81.54 |
||
|
88717A
|
88717A
88717-95748 Pipe, Cooler Refrigerant Suction, A[10.1986 - 10.1993] CM5#,6# |
88717-95748 |
US $133.95 |
||
|
88723B
|
88723B
88723-12040
Plate, Caution, No.2
[01.1990 - 07.1990] CM5#,KM50 |
88723-12040 |
— | ||
|
88723B
|
88723B
88723-20030 Plate, Caution, No.1[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88723-20030 |
US $4.19 |
||
| replacement | |||||
|
88723B
|
88723B
88733-30040
Label, Cooler Service Caution
[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6# |
88733-30040 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8868895753
|
8868895753
88688-95753
Bracket, Cooler Diaphragm
|
88688-95753 |
— | ||
|
8871487004
|
8871487004
88714-87004
Insulator, Cooler Refrigerant Hose, No.1
|
88714-87004 |
— | ||
| replacement | |||||
|
8871487004
|
8871487004
88714-24100
Insulator, Cooler Refrigerant Hose, No.2
|
88714-24100 |
— | ||
|
8871495703
|
8871495703
88714-95703
Insulator, Cooler Refrigerant Hose, No.1
|
88714-95703 |
— | ||
| replacement | |||||
|
8871495703
|
8871495703
88714-16040
Insulator, Cooler Refrigerant Pipe, No.1
|
88714-16040 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8871895759
|
8871895759
88718-95759
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95759 |
— | ||
|
8871895786
|
8871895786
88718-95786
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95786 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9011910021
|
9011910021
90119-10021 Bolt, Hexagon(For Idler Arm Support Setting) |
90119-10021 |
US $5.24 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9046400442
|
9046400442
90464-00442 New Genuine Part |
90464-00442 |
US $3.64 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.25 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
