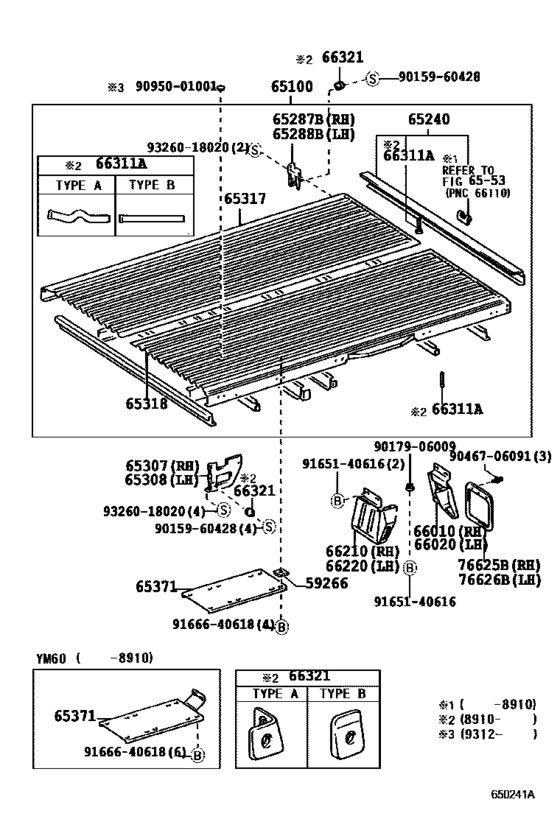

Rear Body Floor & Fender ([10.1986 - ] (8610- )TS..3SO) Diagram Toyota LITE/ TOWNACE
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJLC
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1989
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65100
|
65100
65100-27050 Floor Assy, Rear Body[08.1995 - 06.1999] CM55,YM55..SJLC |
65100-27050 |
US $1,208.48 |
||
| replacement | |||||
|
65100
|
65100
65100-27051 Floor Assy, Rear Body[08.1995 - 06.1999] CM55,YM55..SJLC |
65100-27051 |
US $1,208.48 |
||
|
65100
|
65100
65100-95729 Floor Assy, Rear Body[10.1989 - 08.1995] CM55,YM55..SJLC |
65100-95729 |
US $1,202.66 |
||
|
65240
|
65240
65240-95707 Crossmember, Rear Body Floor, Tail[10.1989 - 12.1989] CM5#,6#,KM5#,YM55,60..TS..3SO..CBU |
65240-95707 |
US $221.31 |
||
|
65287B
|
65287B
65287-95702 Bracket, Gate Rubber Bumper, Rh[10.1989 - 06.1999] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU |
65287-95702 |
US $36.55 |
||
| replacement | |||||
|
65287B
|
65287B
65287-27020 Bracket, Gate Rubber Bumper, Rh[10.1989 - 06.1999] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU |
65287-27020 |
US $36.55 |
||
|
65288B
|
65288B
65288-95702 Bracket, Gate Rubber Bumper, Lh[10.1989 - 06.1999] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU |
65288-95702 |
US $36.55 |
||
| replacement | |||||
|
65288B
|
65288B
65288-27020 Bracket, Gate Rubber Bumper, Lh[10.1989 - 06.1999] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU |
65288-27020 |
US $36.55 |
||
|
65307
|
65307
66411-95706 Bracket Sub-Assy, Guad Frame, Rh[10.1989 -] CM55,65,YM55..JLC,SJLC |
66411-95706 |
US $66.54 |
||
|
65308
|
65308
66412-95706 Bracket Sub-Assy, Guad Frame, Lh[10.1989 -] CM55,65,YM55..JLC,SJLC |
66412-95706 |
US $66.54 |
||
|
65317
|
65317
65317-95709 Panel, Floor Side, Rh[10.1989 -] CM55,65,YM55..JLC,SJLC |
65317-95709 |
US $546 |
||
|
65318
|
65318
65318-95709 Panel, Floor Side, Lh[10.1989 -] CM55,65,YM55..JLC,SJLC |
65318-95709 |
US $546 |
||
|
66010
|
66010
66210-95710 Fender Assy, Rear Body, Rear Rh[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU |
66210-95710 |
US $41.64 |
||
|
66020
|
66020
66220-95710 Fender Assy, Rear Body, Rear Lh[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU |
66220-95710 |
US $41.64 |
||
|
66210
|
66210
66010-95713 Fender Assy, Rear Body, Front Rh[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU |
66010-95713 |
US $41.64 |
||
|
66220
|
66220
66020-95713 Fender Assy, Rear Body, Front Lh[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU |
66020-95713 |
US $41.64 |
||
|
66311A
|
66311A
63111-95705 Panel Sub-Assy, Roof[10.1989 -] CM55..TS..CBU;YM55..TS..MTM..CBU |
63111-95705 |
US $1,236.14 |
||
|
66311A
|
66311A
66311-95705 Hook, Rope, No.1[10.1989 -] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU タイプ Ａ |
66311-95705 |
US $13.54 |
||
|
66311A
|
66311A
66311-95706 Hook, Rope, No.1[10.1989 -] CM5#,6#,KM5#,YM55,6#..TS..3SO..CBU タイプ Ｂ |
66311-95706 |
US $11.65 |
||
|
66321
|
66321
66321-95702 Bumper, Gate Rubber[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU タイプ Ａ |
66321-95702 |
US $17.14 |
||
|
66321
|
66321
66322-95700 Bumper, Gate Rubber[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO..CBU タイプ Ｂ |
66322-95700 |
US $9.68 |
||
|
76625B
|
76625B
76625-27020 Mudguard, Rear Body, Rh[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6#..3SO |
76625-27020 |
US $23 |
||
|
76625B
|
76625B
76625-95709 Mudguard, Rear Body, Rh[11.1987 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO |
76625-95709 |
US $28.25 |
||
|
76625B
|
76625B
76625-95710 Mudguard, Rear Body, Rh[11.1987 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO ﾀｳﾝｴ-ｽ |
76625-95710 |
US $28.25 |
||
|
76626B
|
76626B
76625-27020 Mudguard, Rear Body, Rh[10.1993 - 11.1996] CM65..TS;CM5#,60,61,KM51,YM55,6#..3SO |
76625-27020 |
US $23 |
||
|
76626B
|
76626B
76625-95709 Mudguard, Rear Body, Rh[11.1987 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO |
76625-95709 |
US $28.25 |
||
|
76626B
|
76626B
76625-95710 Mudguard, Rear Body, Rh[11.1987 - 10.1993] CM5#,6#,KM5#,YM55,6#..3SO ﾀｳﾝｴ-ｽ |
76625-95710 |
US $28.25 |
||
|
9015960428
|
9015960428
90159-60428 New Genuine Part |
90159-60428 |
US $2.15 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9046706091
|
9046706091
90467-06091 Clip(For Front Floor Carpet) |
90467-06091 |
US $1.61 |
||
|
9095001001
|
9095001001
90950-01001 New Genuine Part |
90950-01001 |
US $4.54 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9326018020
|
9326018020
93260-18020 SCREW |
93260-18020 |
from US $0.74 |
||
