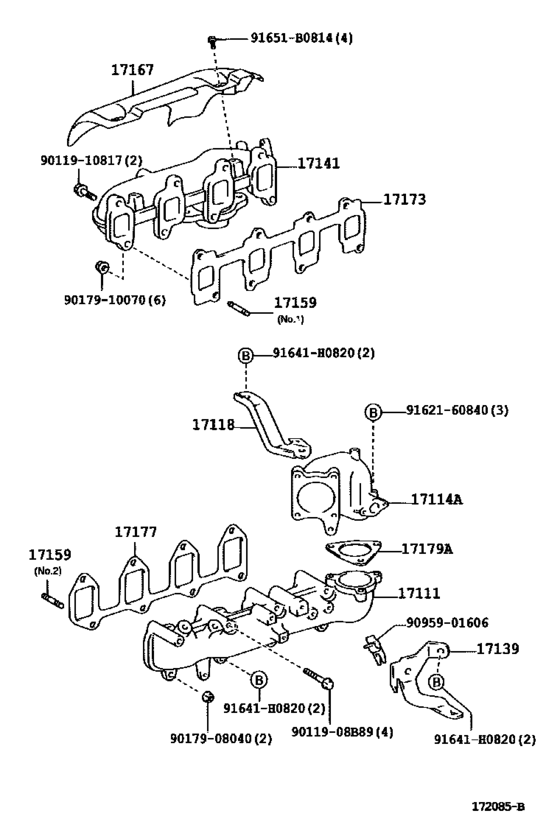

Manifold ([06.1999 - ] (9906- )3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM70
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-64200 Manifold, Intake[06.1999 - 08.2002] 3CE..CM7#,8# |
17101-64200 |
US $247.52 |
||
|
17114A
|
17114A
17114-64040 Flange, Intake[06.1999 - 08.2002] 3CE..CM7#,8# |
17114-64040 |
US $154.34 |
||
|
17118
|
17118
17118-64080 Stay, Manifold[06.1999 - 08.2002] 3CE..CM7#,8# |
17118-64080 |
US $16.16 |
||
|
17139
|
17139
17139-64030 Stay, Manifold, No.2[06.1999 - 08.2002] 3CE..CM7#,8# |
17139-64030 |
US $12.67 |
||
|
17141
|
17141
17141-64290 Manifold, Exhaust[06.1999 - 08.2002] 3CE..CM7#,8# |
17141-64290 |
US $285.38 |
||
|
17159
|
17159
90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．１ |
90126-10017 |
US $7.71 |
||
|
17159
|
17159
92122-60820 Bolt, Stud(For Water Outlet)[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．２ |
92122-60820 |
US $2.62 |
||
|
17167
|
17167
17167-64131 Insulator, Exhaust Manifold Heat, No.1[06.1999 - 08.2002] 3CE..CM7#,8# |
17167-64131 |
US $51.40 |
||
|
17173
|
17173
17173-64051 Gasket, Exhaust Manifold To Head[06.1999 - 08.2002] 3CE..CM7#,8# |
17173-64051 |
US $54.69 |
||
|
17177
|
17177
17177-64020 Gasket, Intake Manifold To Head, No.1[06.1999 - 08.2002] 3CE..CM7#,8# |
17177-64020 |
from US $4.54 |
||
|
17179A
|
17179A
17179-64040 Gasket, Intake Manifold, No.2[06.1999 - 08.2002] 3CE..CM7#,8# |
17179-64040 |
from US $2.63 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011908B89
|
9011908B89
90119-08B89 New Genuine Part |
90119-08B89 |
US $1.46 |
||
|
9011910817
|
9011910817
90119-10817 New Genuine Part |
90119-10817 |
US $3.94 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9095901606
|
9095901606
90959-01606 New Genuine Part |
90959-01606 |
US $1.75 |
||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.86 |
||
