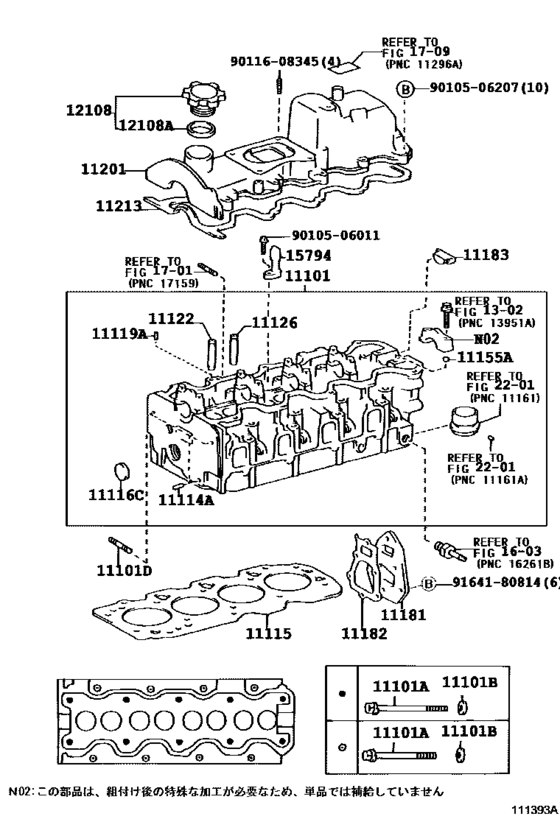

Cylinder Head ([06.1999 - ] (9906- )3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM70
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- IV3
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-64371 Head Sub-Assy, Cylinder[06.1999 - 08.2002] 3CE..CM7#,8# |
11101-64371 |
US $1,732.64 |
||
|
11101A
|
11101A
90910-02130 Bolt(For Cylinder Head Set)[06.1999 - 08.2002] 3CE..CM7#,8# ＊１１−１．２５ＰＸ１４５−５３ |
90910-02130 |
US $9.14 |
||
|
11101A
|
11101A
90910-02131 Bolt(For Cylinder Head Set)[06.1999 - 08.2002] 3CE..CM7#,8# ＊１１−１．２５ＰＸ１２３−５３ |
90910-02131 |
US $7.35 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[06.1999 - 08.2002] 3CE..CM7#,8# |
90201-12222 |
from US $1.07 |
||
|
11101D
|
11101D
92122-60820 Bolt, Stud(For Water Outlet)[06.1999 - 08.2002] 3CE..CM7#,8# |
92122-60820 |
US $2.62 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[06.1999 - 08.2002] 3CE..CM7#,8# 長さ＝１１，外径＝６ |
90250-06068 |
from US $0.99 |
||
|
11115
|
11115
11115-64190-01 Gasket, Cylinder Head[06.1999 - 08.2002] 3CE..CM7#,8# MARK 1,マーク １ |
11115-64190-01 |
from US $65.09 |
||
|
11115
|
11115
11115-64190-03 Gasket, Cylinder Head[06.1999 - 08.2002] 3CE..CM7#,8# MARK 3,マーク ３ |
11115-64190-03 |
from US $65.21 |
||
|
11115
|
11115
11115-64190-05 Gasket, Cylinder Head[06.1999 - 08.2002] 3CE..CM7#,8# MARK 5,マーク ５ |
11115-64190-05 |
from US $65.44 |
||
|
11116C
|
11116C
96411-63000 Plug, Tight[06.1999 - 08.2002] 3CE..CM7#,8# |
96411-63000 |
from US $3.76 |
||
|
11119A
|
11119A
90250-06013 Pin, Straight, No.1[06.1999 - 08.2002] 3CE..CM7#,8# 長さ＝１６，外径＝６ |
90250-06013 |
US $0.61 |
||
|
11119A
|
11119A
90250-06068 Pin, Straight[06.1999 - 08.2002] 3CE..CM7#,8# 長さ＝１１，外径＝６ |
90250-06068 |
from US $0.99 |
||
|
11122
|
11122
11122-64010 Bush, Intake Valve Guide[06.1999 - 08.2002] 3CE..CM7#,8# ＳＴＤ |
11122-64010 |
from US $7.57 |
||
|
11122
|
11122
11123-64010 Bush, Intake Valve Guide[06.1999 - 08.2002] 3CE..CM7#,8# Ｏ／Ｓ ０．０５ |
11123-64010 |
US $8.30 |
||
|
11126
|
11126
11126-64030 Bush, Exhaust Valve Guide[06.1999 - 08.2002] 3CE..CM7#,8# ＳＴＤ |
11126-64030 |
from US $7.13 |
||
|
11126
|
11126
11127-64030 Bush, Exhaust Valve Guide[06.1999 - 08.2002] 3CE..CM7#,8# Ｏ／Ｓ ０．０５ |
11127-64030 |
US $7.13 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[06.1999 - 08.2002] 3CE..CM7#,8# |
90253-11021 |
from US $1.44 |
||
|
11181
|
11181
11181-64011 Plate, Cylinder Head, Rear[06.1999 - 08.2002] 3CE..CM7#,8# |
11181-64011 |
US $14.41 |
||
|
11182
|
11182
11182-64021 Gasket, Cylinder Head Rear Plate[06.1999 - 08.2002] 3CE..CM7#,8# |
11182-64021 |
US $9.61 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[06.1999 - 08.2002] 3CE..CM7#,8# |
11183-64010 |
from US $7 |
||
|
11201
|
11201
11201-64190 Cover Sub-Assy, Cylinder Head[06.1999 - 08.2002] 3CE..CM7#,8# |
11201-64190 |
US $291.20 |
||
|
11213
|
11213
11213-64061 Gasket, Cylinder Head Cover[06.1999 - 08.2002] 3CE..CM7#,8# |
11213-64061 |
from US $15.41 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[06.1999 - 08.2002] 3CE..CM7#,8#; 7KE..KM7#,8# |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[06.1999 - 08.2002] 3CE..CM7#,8#; 7KE..KM7#,8# |
90430-37140 |
from US $1.17 |
||
|
15794
|
15794
15794-64011 Nozzle, Cylinder Head Oil[06.1999 - 08.2002] 3CE..CM7#,8# |
15794-64011 |
from US $5.13 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.74 |
||
|
9010506207
|
9010506207
90105-06207 New Genuine Part |
90105-06207 |
US $1.51 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $3.05 |
||
|
9164180814
|
9164180814
91641-80814 BOLTWWASHER |
91641-80814 |
US $1.97 |
